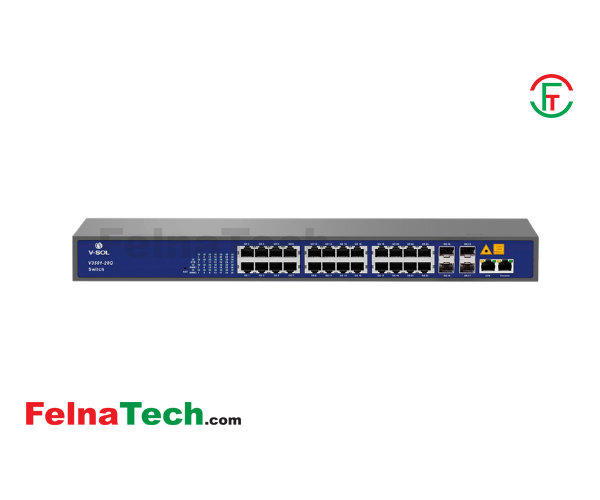

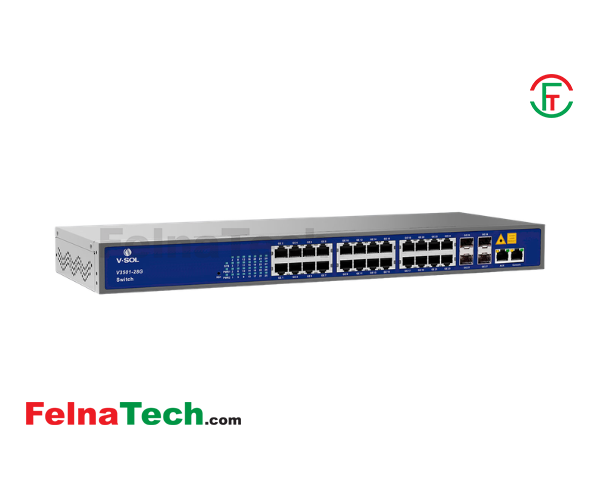

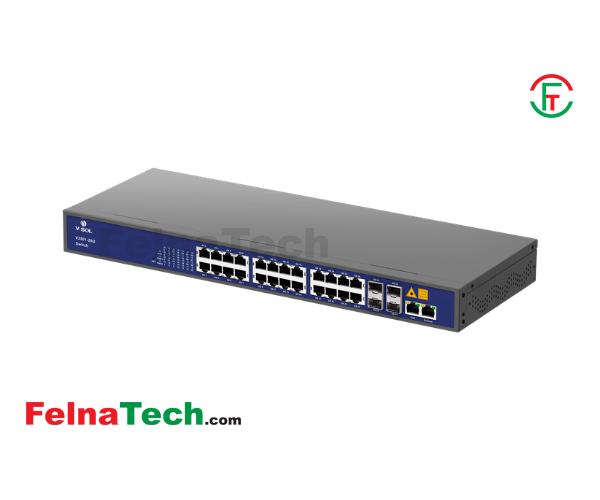

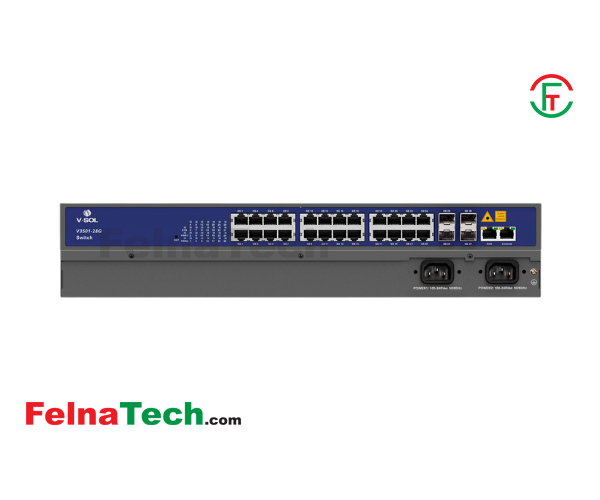

V-SOL V3501-28G Layer 3 Managed Ethernet Switch
Model: V3501-28G
Brand: VSOL
Code: 216346705
V-SOL V3501-28G Layer 3 Managed Ethernet Switch
Technical Specifications:
Model: V3501-28G
Form Factor: 1U 19-Inch Rackmount Design
Downlink Ports: * 24 × 10/100/1000 Mbps Gigabit RJ45 Ports
Supports IEEE 802.3af/at PoE/PoE+ & IEEE 802.3bt PoE++ (High Power)
Uplink Ports: 4 × 1G/10G SFP+ Slots (Ultra-Speed Fiber Uplinks)
PoE Power Budget: High-capacity dynamic power distribution for high-wattage devices
Switching Capacity: Up to 128 Gbps (Non-blocking wire-speed forwarding)
Packet Forwarding Rate: 95.23 Mpps
Layer 3 Routing Features: Static Routing, Dynamic Routing (RIP v1/v2, OSPF v2), ARP Proxy, DHCP Server/Relay
Layer 2 Features: 16K MAC Address table, 4K VLANs, QinQ, LACP Link Aggregation, IGMP Snooping v1/v2/v3, STP/RSTP/MSTP
Security & Access Control: ACL (Layer 2/3/4), 802.1X Authentication, RADIUS/TACACS+, Broadcast Storm Control, Port Isolation, Anti-DDoS Protection
Management Modes: Web UI (HTTPS), CLI, SSH v2, Telnet, SNMP v1/v2/v3, RMON, Console Port
Surge Protection: 6KV Lightning Protection on all RJ45 ports
Power Supply: Built-in AC Enterprise Power Supply (100V-240V, 50/60Hz)
Key Features:
Next-Gen 90W PoE++ (IEEE 802.3bt) Support:
The V-SOL V3501-28G-BT is engineered for modern high-power networking. Equipped with cutting-edge IEEE 802.3bt PoE++ technology, it can deliver up to 90W of power per port. This makes it the ultimate solution for powering heavy-duty devices like high-end Wi-Fi 6/7 Enterprise Access Points, PTZ IP Cameras, Smart LED lighting, and VoIP video phones without needing extra power injectors.
High-Speed 10G SFP+ Fiber Uplinks:
Eliminate network congestion and future-proof your core network. Featuring 4 dedicated 10G SFP+ slots, this switch provides lightning-fast fiber optic uplink connectivity. It allows seamless, high-bandwidth data transfers to core switches, network servers, or high-capacity Network Attached Storage (NAS) systems.
Advanced Layer 3 Dynamic Routing (RIP/OSPF):
Go beyond basic network switching. The V3501-28G-BT operates as an intelligent Layer 3 managed switch, supporting robust hardware-based static routing and dynamic routing protocols like RIP and OSPF. This allows efficient inter-VLAN routing and smart traffic localization, significantly reducing the workload on your core router.
Carrier-Grade Security & Network Isolation:
Protect your business or ISP infrastructure from malicious attacks. This switch comes fully loaded with enterprise-grade security features, including Access Control Lists (ACL), 802.1X port authentication, DHCP Snooping, and IP-MAC-Port Binding. Built-in port isolation and storm control effectively prevent broadcast storms and unauthorized access.
Comprehensive Layer 2 Management & IPTV Ready:
Take complete control of your network traffic with advanced L2 features like 4K VLANs, QinQ, and Link Aggregation (LACP) for bandwidth optimization. With robust IGMP Snooping (v1/v2/v3) support, it ensures lag-free, smooth multicast streaming, making it completely IPTV and digital surveillance ready.
6KV Industrial-Grade Lightning Protection:
Power fluctuations and seasonal thunderstorms are major hazards for networking hardware in Bangladesh. To combat this, V-SOL has equipped this switch with robust 6KV lightning and surge protection on all Ethernet ports, ensuring long-term durability and uninterrupted performance in harsh environments.
The V-SOL V3501-28G-BT is a premium, high-performance Layer 3 Managed PoE++ Ethernet Switch designed to power and manage elite, enterprise-grade networks across Bangladesh.
Tailored specifically for modern office environments, smart campuses, hospitality networks, and internet service providers (ISPs), this versatile 1U rackmount switch combines massive power delivery with high-speed data
transmission in a single robust chassis.
Featuring 24 Gigabit Ethernet ports with next-generation 90W PoE++ support alongside 4 powerhouse 10G SFP+ fiber uplink ports, the V3501-28G-BT effortlessly eliminates data bottlenecks while cleanly
powering high-density Wi-Fi 6/7 networks and advanced IP surveillance systems. With its intelligent Layer 3 dynamic routing (RIP/OSPF), sophisticated security firewalls, and comprehensive Web/CLI management tools,
network administrators can orchestrate secure, low-latency, and highly scalable network architectures. Backed by heavy-duty 6KV lightning protection and industrial resilience, the VSOL V3501-28G-BT stands as the ultimate
future-proof network backbone for Bangladeshi enterprises demanding elite performance without compromises.
Brand: Switch / VSOL
Title: V-SOL V3501-28G Layer 3 Managed Ethernet Switch
Model: V3501-28G
Code: 216346705
Category: Networking / Switch / VSOL
Product Type: Switch
Price: 24700
Warranty: 1
Availability: Available/In Stock
Description:
V-SOL V3501-28G Layer 3 Managed Ethernet Switch
Technical Specifications:
Model: V3501-28G
Form Factor: 1U 19-Inch Rackmount Design
Downlink Ports: * 24 × 10/100/1000 Mbps Gigabit RJ45 Ports
Supports IEEE 802.3af/at PoE/PoE+ & IEEE 802.3bt PoE++ (High Power)
Uplink Ports: 4 × 1G/10G SFP+ Slots (Ultra-Speed Fiber Uplinks)
PoE Power Budget: High-capacity dynamic power distribution for high-wattage devices
Switching Capacity: Up to 128 Gbps (Non-blocking wire-speed forwarding)
Packet Forwarding Rate: 95.23 Mpps
Layer 3 Routing Features: Static Routing, Dynamic Routing (RIP v1/v2, OSPF v2), ARP Proxy, DHCP Server/Relay
Layer 2 Features: 16K MAC Address table, 4K VLANs, QinQ, LACP Link Aggregation, IGMP Snooping v1/v2/v3, STP/RSTP/MSTP
Security & Access Control: ACL (Layer 2/3/4), 802.1X Authentication, RADIUS/TACACS+, Broadcast Storm Control, Port Isolation, Anti-DDoS Protection
Management Modes: Web UI (HTTPS), CLI, SSH v2, Telnet, SNMP v1/v2/v3, RMON, Console Port
Surge Protection: 6KV Lightning Protection on all RJ45 ports
Power Supply: Built-in AC Enterprise Power Supply (100V-240V, 50/60Hz)
Key Features:
Next-Gen 90W PoE++ (IEEE 802.3bt) Support:
The V-SOL V3501-28G-BT is engineered for modern high-power networking. Equipped with cutting-edge IEEE 802.3bt PoE++ technology, it can deliver up to 90W of power per port. This makes it the ultimate solution for powering heavy-duty devices like high-end Wi-Fi 6/7 Enterprise Access Points, PTZ IP Cameras, Smart LED lighting, and VoIP video phones without needing extra power injectors.
High-Speed 10G SFP+ Fiber Uplinks:
Eliminate network congestion and future-proof your core network. Featuring 4 dedicated 10G SFP+ slots, this switch provides lightning-fast fiber optic uplink connectivity. It allows seamless, high-bandwidth data transfers to core switches, network servers, or high-capacity Network Attached Storage (NAS) systems.
Advanced Layer 3 Dynamic Routing (RIP/OSPF):
Go beyond basic network switching. The V3501-28G-BT operates as an intelligent Layer 3 managed switch, supporting robust hardware-based static routing and dynamic routing protocols like RIP and OSPF. This allows efficient inter-VLAN routing and smart traffic localization, significantly reducing the workload on your core router.
Carrier-Grade Security & Network Isolation:
Protect your business or ISP infrastructure from malicious attacks. This switch comes fully loaded with enterprise-grade security features, including Access Control Lists (ACL), 802.1X port authentication, DHCP Snooping, and IP-MAC-Port Binding. Built-in port isolation and storm control effectively prevent broadcast storms and unauthorized access.
Comprehensive Layer 2 Management & IPTV Ready:
Take complete control of your network traffic with advanced L2 features like 4K VLANs, QinQ, and Link Aggregation (LACP) for bandwidth optimization. With robust IGMP Snooping (v1/v2/v3) support, it ensures lag-free, smooth multicast streaming, making it completely IPTV and digital surveillance ready.
6KV Industrial-Grade Lightning Protection:
Power fluctuations and seasonal thunderstorms are major hazards for networking hardware in Bangladesh. To combat this, V-SOL has equipped this switch with robust 6KV lightning and surge protection on all Ethernet ports, ensuring long-term durability and uninterrupted performance in harsh environments.
The V-SOL V3501-28G-BT is a premium, high-performance Layer 3 Managed PoE++ Ethernet Switch designed to power and manage elite, enterprise-grade networks across Bangladesh.
Tailored specifically for modern office environments, smart campuses, hospitality networks, and internet service providers (ISPs), this versatile 1U rackmount switch combines massive power delivery with high-speed data
transmission in a single robust chassis.
Featuring 24 Gigabit Ethernet ports with next-generation 90W PoE++ support alongside 4 powerhouse 10G SFP+ fiber uplink ports, the V3501-28G-BT effortlessly eliminates data bottlenecks while cleanly
powering high-density Wi-Fi 6/7 networks and advanced IP surveillance systems. With its intelligent Layer 3 dynamic routing (RIP/OSPF), sophisticated security firewalls, and comprehensive Web/CLI management tools,
network administrators can orchestrate secure, low-latency, and highly scalable network architectures. Backed by heavy-duty 6KV lightning protection and industrial resilience, the VSOL V3501-28G-BT stands as the ultimate
future-proof network backbone for Bangladeshi enterprises demanding elite performance without compromises.
