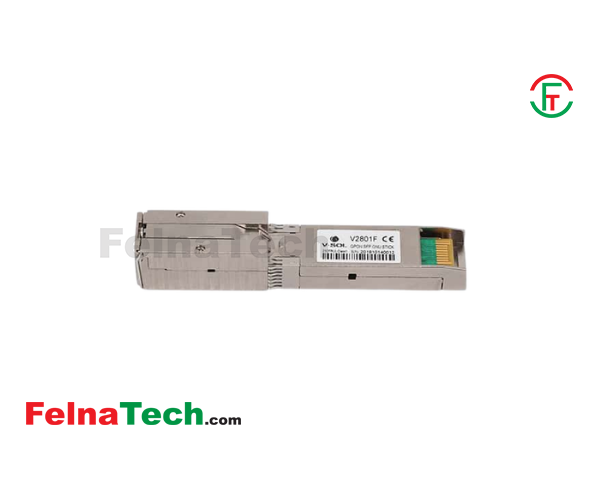

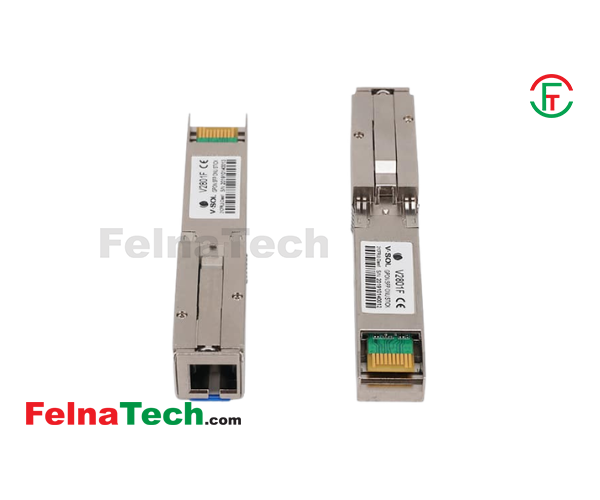

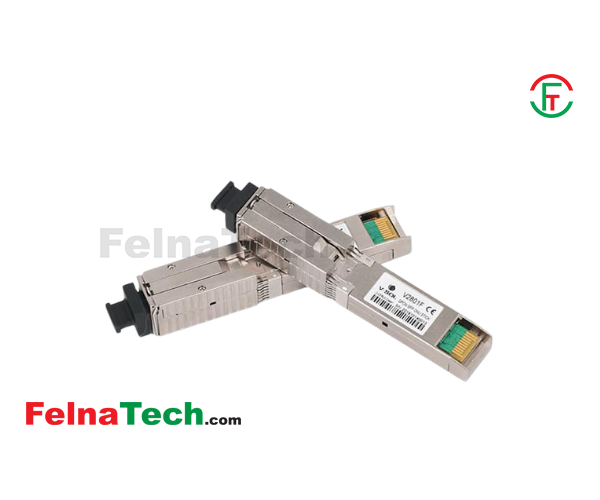

V-SOL V2801F 1XPON 1GE SFP ONT ONU Stick

Brand: VSOL

Title: V-SOL V2801F 1XPON 1GE SFP ONT ONU Stick

Model: V2801F

Code: 2110946804

Category: Networking / ISP / Module

Product Type: OLT

Price: 3500

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V2801F 1XPON 1GE SFP ONT ONU Stick

Technical Specifications:

Model: V2801F
Form Factor: Ultra-compact SFP (Small Form-factor Pluggable) Stick
PON Interface: 1 × XPON Port (GPON ITU-T G.984.x / EPON IEEE802.3ah Auto Adaptive)
Connector Type: SC/UPC Connector
LAN Interface: 1 × 1GE (10/100/1000 Mbps) Ethernet interface via SFP Connector
Optical Specifications: Tx-1310nm, Rx-1490nm | Transmission Distance: 20KM
Operation Mode: SFU ONU (Bridge Mode Only)
VLAN & L2 Features: 802.1D & 802.1ad bridging, 802.1p CoS (Class of Service)
Layer 3 & Multicast: IPv4 Support, PPPoE packet forwarding, IGMP v2/v3 multicast snooping
Power Supply: DC 3.3V (Powered directly via host device SFP slot) | Power Consumption: ≤ 4W

Physical Specs: Ultra-lightweight and pocket-sized | Weight: 35g | Dim: 79 × 14.1 × 13.6 mm

Warranty: 1-Year Official Manufacturer Warranty

Key Features & Benefits:

Ultra-Compact SFP Stick Design: Designed to plug directly into the SFP slot of enterprise switches, edge routers, IP cameras, or firewalls, eliminating the need for a separate external ONT device and power adapter.

XPON Dual Mode (GPON/EPON): Features smart auto-detection that seamlessly adapts to both GPON and EPON OLT networks, offering maximum flexibility for Internet Service Providers (ISPs).

True Gigabit Throughput: Delivers 1Gbps full wire-speed Layer 2 data forwarding, making it ideal for high-capacity corporate links, server racks, or premium FTTH connections.

Carrier-Grade Standards: Fully compliant with ITU-T G.984.x, IEEE 802.3ah, and China CTC 3.0 standards, ensuring high compatibility with mainstream OLTs (like Huawei, ZTE, Nokia, etc.).

Pure Bridge Mode Deployment: Operates as a reliable SFU (Single Family Unit) ONU in Bridge Mode, flawlessly passing through PPPoE, Static IP, and DHCP configurations directly to the host device.

Energy-Efficient & Low Latency: Consumes less than 4 watts of power drawn directly from the host device, while ensuring minimal latency for high-speed internet and corporate intranet connections.

IPTV & Multicast Support: Built-in capability for forwarding IGMPv2/v3 packets ensures smooth, uninterrupted delivery of digital IPTV services and video feeds.

The V-SOL V2801F is an ultra-compact, pocket-sized XPON SFP ONT Stick designed specifically for advanced FTTH/FTTO (Fiber to the Office) network integration across Bangladesh. Unlike bulky traditional ONUs, this innovative SFP-form-factor device plugs directly
into the SFP port of any standard managed switch, router, or security gateway, eliminating extra power cables, patch cords, and desktop clutter.

Powered by dual-mode XPON auto-adaptive technology, the V2801F seamlessly transitions between GPON and EPON setups. Operating strictly in high-performance Bridge Mode, it serves as a robust media converter that delivers flawless 1Gbps wire-speed data throughput.
This makes the V2801F the ultimate space-saving, professional-grade solution for ISPs, modern enterprise server racks, multi-tenant buildings, and tech-savvy network administrators aiming for a clean and efficient infrastructure.


V-SOL V2801F XPON SFP ONU is a compact plug-and-play fiber optic ONT stick supporting EPON and GPON dual-mode. Ideal for FTTH networks in Bangladesh, it offers 1GE SFP interface, stable high-speed internet performance, and easy installation for ISP and home broadband use.
