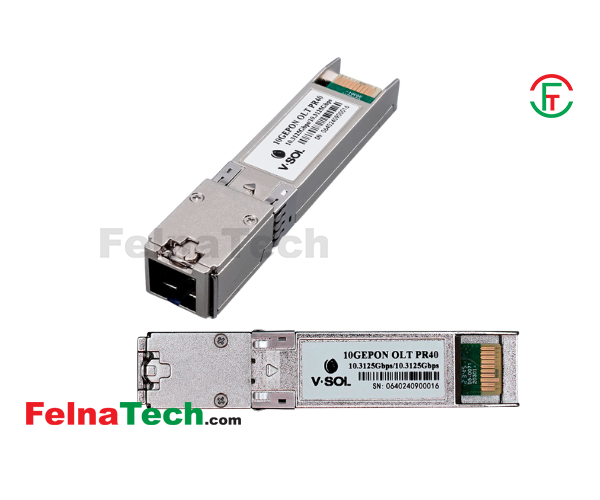

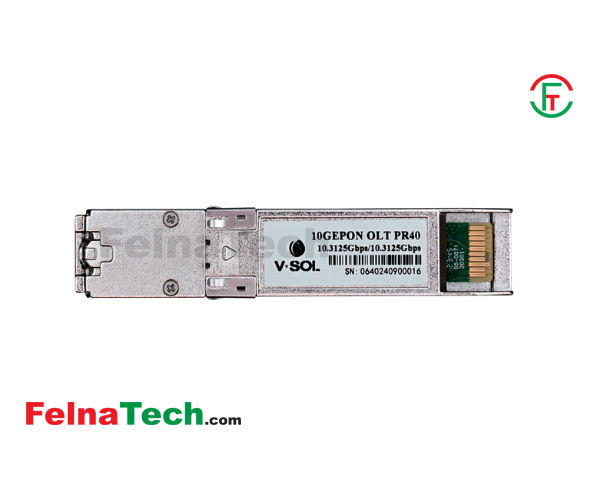

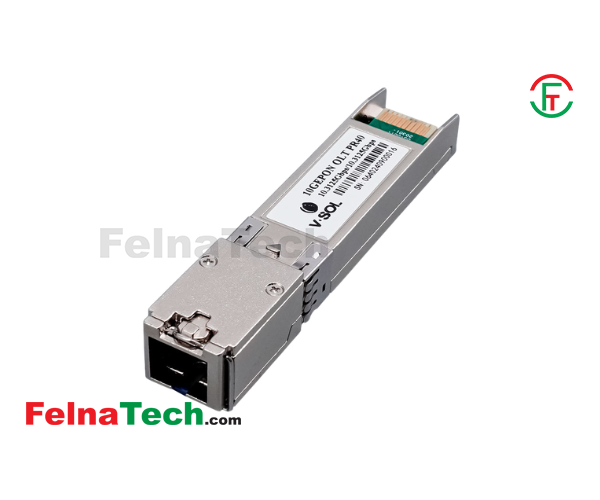

V-SOL 10G EPON OLT SFP+ PRX40 10Gbps Fiber Optical Module

Brand: VSOL

Title: V-SOL 10G EPON OLT SFP+ PRX40 10Gbps Fiber Optical Module

Model: PRX40

Code: 2110946802

Category: Networking / ISP / Module

Product Type: Networking

Price: 17000

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL 10G EPON OLT SFP+ PRX40 10Gbps Fiber Optical Module

Technical Specifications:

Model: PRX40
Device Type: PON Optical Transceiver Module
Data Rate: Symmetric 10Gbps / 10Gbps (Downstream & Upstream)
Application Standards: IEEE 802.3av & IEEE 802.3bk PR40
Interface / Connector Type: SC/UPC Receptacle Optical Interface
Optical Tx Power: +5 ~ +9 dBm (PR40 Class)
Receiver Sensitivity (Rx): ≤ -29 dBm
Form Factor: SFP+ MSA Package
Power Supply: Single +3.3V Power Supply
Operating Case Temperature: 0°C ~ +70°C (Commercial Grade)
Safety & Compliance: RoHS Compliant | Class 1 Laser Safety

Key Features & Benefits:

Next-Gen 10G EPON Speed: Engineered for ultra-high-speed networks, delivering symmetric 10Gbps data transmission for both upload and download streams.

Premium PR40 Power Class: Features an optimized Tx Power (+5 to +9 dBm) and a highly sensitive APD receiver (-29 dBm) to ensure excellent link budget over long-distance FTTx deployments.

IEEE 802.3av/bk Compliance: Fully standardized and compatible with global IEEE 10G EPON protocol requirements for stable, high-bandwidth operations.

Hot-Pluggable SFP+ Form Factor: Designed with the standard SFP+ MSA package allowing network admins to plug or unplug the module seamlessly without shutting down the OLT.

Digital Diagnostic Monitoring (DDM): Built-in 2-wire interface for real-time monitoring of critical parameters like optical output power, input power, temperature, and supply voltage.

Wide Hardware Compatibility: Extensively tested for high reliability and flawless integration with VSOL 10G EPON OLTs as well as other industry-leading OLT chassis.

Carrier-Grade Reliability: Low failure rates and superior heat-dissipation manufacturing make it ideal for critical telecom infrastructure and dense 5G wireless transport networks.

Product Overview:

The VSOL 10G EPON OLT SFP+ PR40 is a carrier-grade, high-performance optical transceiver module engineered specifically for high-density FTTH (Fiber to the Home) and FTTx deployments across Bangladesh.
Designed to meet the growing demand for bandwidth-heavy internet services, this powerful module delivers a symmetric 10Gbps data rate, giving local Internet Service Providers (ISPs) the muscle to serve premium triple-play,
IPTV, and high-speed enterprise packages effortlessly.

Equipped with a standard SFP+ form factor and an SC/UPC optical interface, the PR40 module provides superior optical performance with a robust Tx power of up to +9dBm and high receiver sensitivity.
It offers seamless integration with OLT devices, allowing network administrators to monitor link health in real-time via advanced Digital Diagnostic Monitoring (DDM). Whether upgrading existing infrastructure or
building a new next-generation network, this VSOL optical module offers the ultimate combination of stability, extensive reach, and cost-efficiency.

Buy VSOL 10G EPON OLT SFP+ PR40 Optical Module in Bangladesh. High-performance 10Gbps optical transceiver with stable long-distance transmission for EPON OLT networks.
