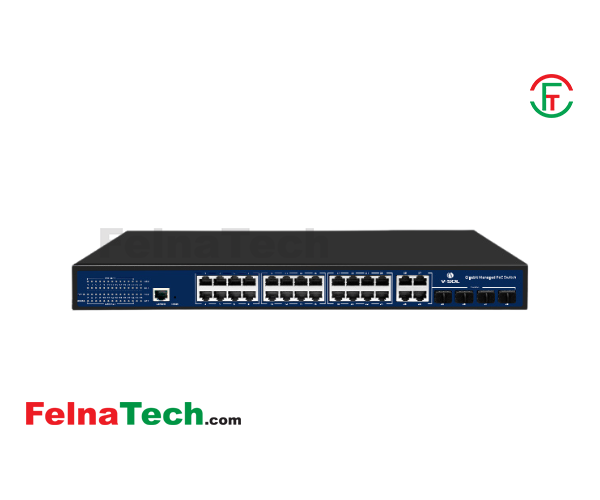

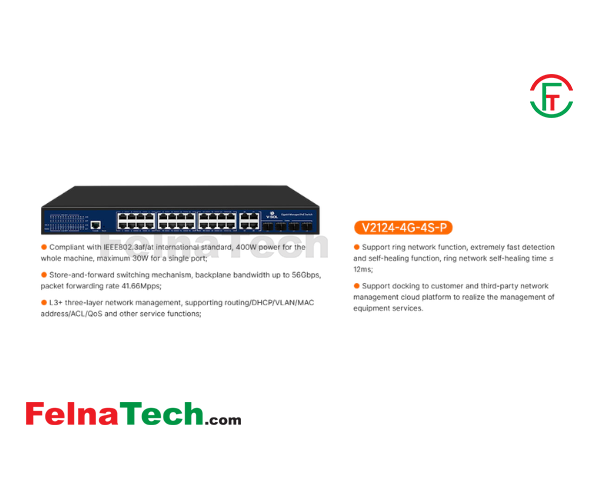

V-SOL V2124-4G-4S-P 24-Port L2 Managed Gigabit PoE Switch

Brand: Switch / VSOL

Title: V-SOL V2124-4G-4S-P 24-Port L2 Managed Gigabit PoE Switch

Model: V2124-4G-4S-P

Code: 216446915

Category: Networking / Switch (PoE) / VSOL

Product Type: Switch

Price: 30500

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V2124-4G-4S-P 24-Port L2 Managed Gigabit PoE Switch

Technical Specifications:

Model: V2124-4G-4S-P

Switch Type: Layer 2 (L2) Managed PoE Switch
PoE Ports: 24 × 10/100/1000 Mbps RJ45 PoE Ports (802.3af/at)
Uplink Ports: 4 × 10/100/1000 Mbps Combo/Gigabit RJ45 Ports & 4 × 1G/10G SFP/SFP+ Slots
PoE Power Budget: Total 370W Max Power Budget (Up to 30W per PoE port)
Switching Capacity: 128 Gbps
Packet Forwarding Rate: 95.23 Mpps
MAC Address Table: 16K
VLAN Support: 4K VLANs, 802.1Q tag VLAN, Voice VLAN, Voice/Data Separation
LED Status Indicators: Power, System, Link/Act, PoE Status

Physical Specs: 1U 19-inch Rack-mountable Metal Chassis

Warranty: 1-Year Official Manufacturer Warranty

Key Features:

High-Density Gigabit PoE+: Features 24 Full Gigabit Ethernet ports supporting IEEE 802.3af/at PoE standards, delivering up to 30W per port to power IP cameras, VoIP phones, and Wireless Access Points.

Massive Power Budget: Equipped with a robust 370W total PoE power budget, ensuring stable and continuous power delivery to multiple high-consumption network devices simultaneously.

Flexible High-Speed Uplinks: Includes 4 Gigabit combo ports and 4 dedicated SFP/SFP+ slots for versatile, long-distance fiber optic connections to core networks or servers.

Advanced Layer 2 Management: Offers comprehensive L2 features including 802.1Q VLAN, Link Aggregation (LACP), IGMP Snooping, and Spanning Tree Protocols (STP/RSTP/MSTP) for optimal traffic control.

Enterprise-Grade Security: Protects your network infrastructure with IP-MAC-Port Binding, Access Control Lists (ACL), Port Security, DoS defense, and 802.1X authentication.

Quality of Service (QoS): Prioritizes critical traffic such as voice and video data using 802.1p CoS/DSCP capability, ensuring lag-free performance for business communications.

Smart Remote Management: Supports intuitive management interfaces including Web UI, CLI (Console/Telnet/SSH), SNMP (v1/v2c/v3), and RMON for easy deployment and troubleshooting by network administrators.

Durable Rackmount Design: Housed in a rugged, standard 1U 19-inch metal chassis with intelligent cooling fans, designed for efficient heat dissipation and reliable 24/7 server-rack operation.

The V-SOL V2124-4G-4S-P is an enterprise-grade, high-performance Layer 2 Managed Gigabit PoE Switch engineered for modern business networks, surveillance systems, and SME deployments across Bangladesh. Packed with 24 Full Gigabit PoE+ ports and a substantial
370W power budget, it effortlessly powers and connects high-definition IP cameras, access points, and smart office devices without requiring extra power cables.

With its versatile uplink options—featuring both Gigabit combo ports and high-speed SFP/SFP+ slots—this switch ensures seamless, high-bandwidth data transmission to core networks. The V2124-4G-4S-P offers network administrators total control with advanced L2
management, robust QoS traffic prioritization, and top-tier security features, making it the ideal backbone for secure, scalable, and reliable network infrastructures.
