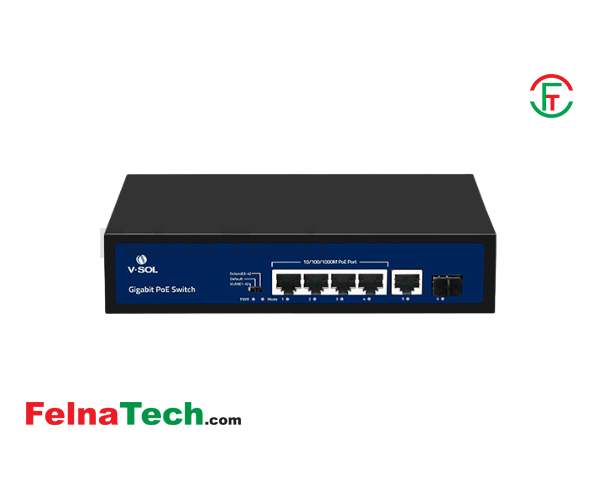

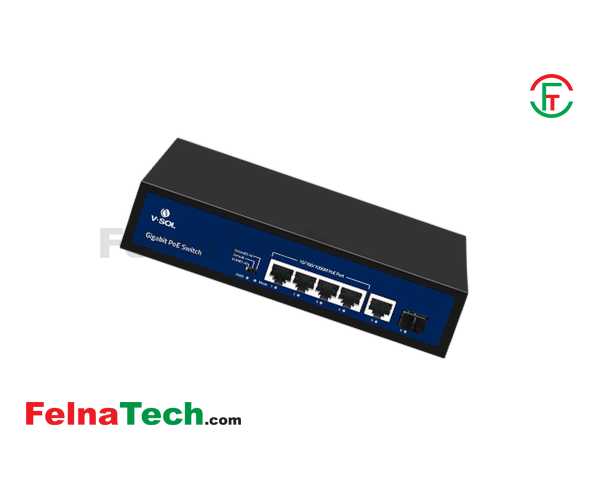

V-SOL V1104-G-S-P 4-Port Gigabit Unmanaged PoE Switch

Brand: Switch / VSOL

Title: V-SOL V1104-G-S-P 4-Port Gigabit Unmanaged PoE Switch

Model: V1104-G-S-P

Code: 216446901

Category: Networking / Switch (PoE) / VSOL

Product Type: Switch

Price: 3700

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V1104-G-S-P 4-Port Gigabit Unmanaged PoE Switch

Technical Specifications:

Model: V1104-G-S-P

Switch Type: Layer 2 Unmanaged PoE Switch
PoE Interfaces: 4 × 10/100/1000 Mbps Gigabit Ethernet PoE Ports (RJ45)
Uplink Interfaces: 1 × 10/100/1000 Mbps Gigabit RJ45 Port + 1 × Gigabit SFP Optical Port
Switching Capacity: 12 Gbps
Throughput: 8.928 Mpps
Packet Buffer / MAC Address: 1M / 2K
Jumbo Frame: 9 Kbytes
Transfer Mode: Store and Forward
Power Supply: Input AC 100–240V, 50/60Hz | Output DC 52V / 1.25A
Max Power Consumption: 65W (Intelligent PoE Power Supply)
LED Status Indicators: PWR (Power), Mode, 1-6 ACT, 1-6 1000M

Physical Specs: Durable Metal Body | Weight: 0.63 kg (Net) / 0.92 kg (Gross) | Dim: 200 × 118 × 44 mm

Warranty: 1-Year Official Manufacturer Warranty

Key Features:

Full Gigabit Performance: Equipped with 4 Gigabit PoE ports and 2 Gigabit uplinks to ensure ultra-fast data transmission and eliminate network bottlenecks.

Dual Uplink Flexibility: Features both a standard Gigabit RJ45 copper uplink and a high-speed Gigabit SFP fiber uplink port, allowing long-distance fiber connectivity directly to core switches or OLTs.

Intelligent PoE Power Supply: Reliably delivers data and power simultaneously over a single Ethernet cable to IP cameras, Access Points, and VoIP phones with a total power budget of up to 65W.

Designed for Security Surveillance: Engineered with a Super Cache architecture and stable store-and-forward transfer mode, ensuring smooth, lag-free HD video streaming even under heavy data loads.

Ultra-Long Distance Transmission: Supports extended transmission modes to deliver power and data over long cable runs, making it perfect for spacious outdoor or indoor security layouts.

Plug-and-Play Simplicity: As an unmanaged switch, it requires zero configuration, software, or setup—simply plug in your network cables and devices for instant connectivity.

Industrial-Grade Reliability: Built with a highly durable chassis and boasting an MTBF (Mean Time Between Failures) of 100,000 hours for non-stop, 24/7 stable operations.

The V-SOL V1104-G-S-P is a high-performance, durable, and budget-friendly 4-Port Gigabit Unmanaged PoE Switch designed specifically for modern IP security surveillance and small enterprise network deployments across Bangladesh.
Built with a robust metal chassis, this switch offers 4 dedicated Gigabit PoE ports along with a dual uplink system (1GE RJ45 + 1GE SFP) for maximum network topology flexibility and effortless long-distance fiber extension.

Engineered with an advanced Super Cache architecture, the V1104-G-S-P ensures lossless, real-time transmission of HD security camera feeds without video stuttering. It features intelligent PoE power distribution with up to a 65W capacity,
making it an excellent all-in-one hardware solution for residential properties, commercial offices, and retail spaces. With its seamless plug-and-play architecture, local system integrators and IT admins can rapidly deploy secure,
high-speed networks without needing complex management software.
