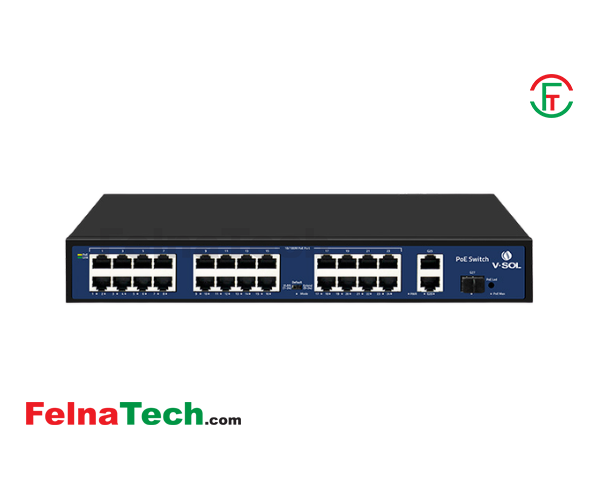

V-SOL V1024-2G-S-P1 24-Port Fast Ethernet Unmanaged PoE Switch

Brand: VSOL

Title: V-SOL V1024-2G-S-P1 24-Port Fast Ethernet Unmanaged PoE Switch

Model: V1024-2G-S-P1

Code: 216446912

Category: Networking / Switch (PoE) / VSOL

Product Type: Switch

Price: 11500

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V1024-2G-S-P1 24-Port Fast Ethernet Unmanaged PoE Switch

Technical Specifications:

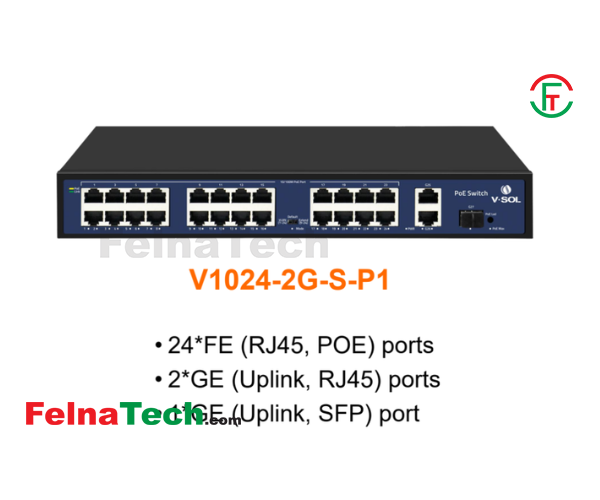

Model: V1024-2G-S-P1

PoE Ports: 24 × 10/100 Mbps RJ45 Ports (Supports IEEE 802.3af/at PoE)
Uplink Ports: 2 × 10/100/1000 Mbps Gigabit Ethernet Ports + 1 × 1000 Mbps SFP Slot
Total PoE Power Budget: Up to 300W Max (Up to 30W per PoE port)
Switching Capacity: 10.8 Gbps Non-blocking Bandwidth
Forwarding Rate: 8.03 Mpps
Transmission Distance: Normal Mode: 100m | Extend Mode: Up to 250m (at 10 Mbps)
Functional Modes: Standard (Normal), VLAN (Port Isolation), Extend (Long-Range PoE)
Lightning Protection: 4KV Surge Protection per port
LED Status Indicators: Power, Link/Act, PoE Status, Gigabit Uplink Link/Act

Physical Specs: 1U 19-inch Rack-mountable Metal Chassis | Built-in Cooling Fans

Warranty: 1-Year Official Manufacturer Warranty

Key Features:

High-Density 24-Port PoE Deployment: Equipped with 24 Fast Ethernet ports supporting IEEE 802.3af/at standards, capable of delivering up to 30W per port to power IP cameras, VoIP phones, and Access Points.

Massive 300W Power Budget: Features a robust internal power supply with a total PoE budget of 300W, ensuring stable and reliable performance even when all 24 ports are heavily loaded.

Dual Gigabit Uplinks & SFP Versatility: Includes 2× 1000Mbps RJ45 uplink ports for high-speed connection to NVRs or core routers, plus 1× Gigabit SFP slot for seamless, long-distance fiber optic connectivity.

One-Key VLAN Port Isolation: Features a physical toggle switch to enable Hardware VLAN mode, which isolates downlink ports from one another to prevent broadcast storms and enhance network security.

250m Ultra-Long Range PoE: The "Extend" mode allows transmission of both power and data up to a distance of 250 meters over Cat5e/Cat6 cabling, making it perfect for sprawling surveillance layouts.

Zero-Configuration Plug and Play: As an unmanaged switch, it requires absolutely no software, configuration, or technical expertise to install—simply plug in your devices and it works instantly.

Enterprise-Grade Durability & Protection: Housed in a heavy-duty, rack-mountable metal chassis with 4KV surge protection to safeguard your network equipment against unexpected voltage spikes and lightning strikes.

Intelligent Power Management: Automatically detects the power requirements of connected PDs (Powered Devices) to prevent overcurrent and protect non-PoE devices from damage.

The V-SOL V1024-2G-S-P1 is a high-performance, enterprise-grade 24-Port Unmanaged PoE Switch engineered for high-density IP surveillance and SMB network deployments across Bangladesh. Built to handle heavy workloads,
this robust switch provides internet service providers and system integrators with an efficient, budget-friendly centralized power solution for IP cameras, wireless access points, and smart network hardware.

Featuring a massive 300W total PoE budget alongside dual Gigabit Ethernet uplinks and a dedicated SFP fiber slot, the V1024-2G-S-P1 eliminates bandwidth bottlenecks ensuring lag-free data routing to NVRs or core networks.
With its hardware-driven VLAN isolation and 250-meter long-range extension capability, it serves as an exceptional all-in-one infrastructure backbone for residential complexes, corporate offices, and commercial surveillance setups without the complexity of
managed networking.


Buy the V-SOL V1024-2G-S-P1 24-Port Fast Ethernet Unmanaged PoE Switch in Bangladesh at the best price. Features 24×100M PoE ports, 2 Gigabit uplink ports, 1 SFP uplink, plug-and-play operation, stable performance, and reliable connectivity for IP cameras, CCTV surveillance, offices, and enterprise networks.
