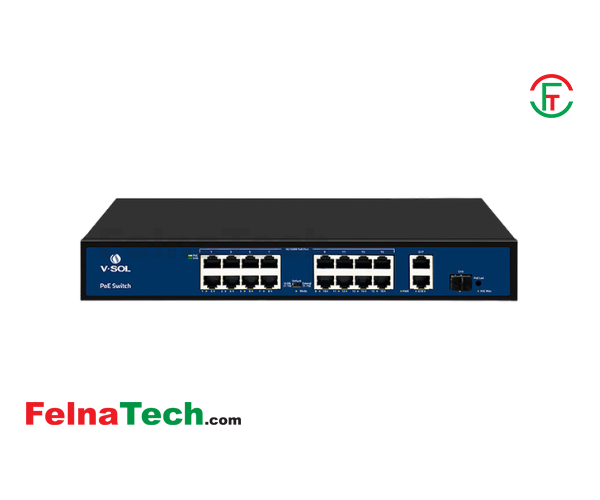

V-SOL V1016-2G-S-P1 16-Port Fast Ethernet PoE Switch

Brand: Switch / VSOL

Title: V-SOL V1016-2G-S-P1 16-Port Fast Ethernet PoE Switch

Model: V1016-2G-S-P1

Code: 216446911

Category: Networking / Switch (PoE) / VSOL

Product Type: Switch

Price: 9000

Warranty: 1

Availability: Available/In Stock

Description:

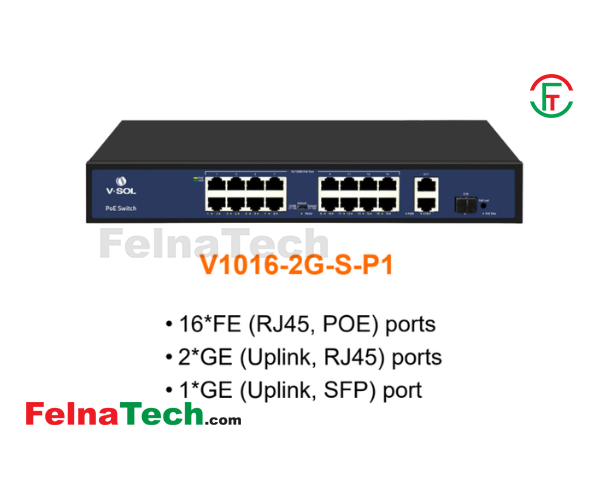

V-SOL V1016-2G-S-P1 16-Port Fast Ethernet PoE Switch

Technical Specifications:

Model: V1016-2G-S-P1

Type: Unmanaged PoE Switch
PoE Ports: 16 × 10/100 Mbps Fast Ethernet PoE RJ45 Ports
Uplink Ports: 2 × 10/100/1000 Mbps Gigabit Ethernet RJ45 Ports + 1 × 1000 Mbps Gigabit SFP Fiber Port
PoE Standards: IEEE 802.3af (15.4W per port) & IEEE 802.3at (30W per port)
Total PoE Power Budget: ~300W Max
Transmission Method: Store and Forward
Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
MAC Address Table: 2K with Auto-learning and Auto-aging
DIP Switch Modes: One-key Smart Switch (Normal, VLAN, Extend Mode)
LED Status Indicators: Power (PWR), SW (DIP Mode), Link/Act (Green/Flashing)

Physical Specs: Durable Metal Chassis | Fanless Quiet Design | Weight: ~2.15 kg | Dim: 320 × 207 × 44 mm

Warranty: 1-Year Official Manufacturer Warranty

Key Features:

High-Density PoE Power Supply: Equipped with 16 Fast Ethernet ports fully compliant with IEEE 802.3af/at standards, delivering up to 30W per port to power IP cameras, wireless APs, and VoIP phones safely.

Flexible Dual Gigabit & SFP Uplinks: Features 2× Gigabit RJ45 ports and 1× Gigabit SFP fiber port, ensuring ultra-fast, lag-free backbone connectivity to NVRs, core routers, or high-speed fiber networks.

One-Key Three Smart Modes: Built-in physical DIP switch allows instant shifting between Normal (standard operation), VLAN (port isolation to block broadcast storms), and Extend modes.

Ultra-Long 250m Transmission: In Extend Mode, both data transmission and PoE power supply distance can reach up to an impressive 250 meters (at 10Mbps), making it ideal for large-scale surveillance deployments.

Hardware-Based VLAN (Port Isolation): Eliminates security risks by ensuring PoE ports can only communicate with uplink ports and not with each other, enhancing overall network efficiency and security.

QoS Data Priority & AI Mode: Supports automatic Quality of Service (QoS) data optimization to prioritize critical traffic like live video feeds, preventing packet drops during high network loads.

Plug-and-Play Simplicity: As an unmanaged switch, it requires zero configuration or software setup—just connect your Ethernet cables and power up for instant network expansion.

Carrier-Grade Structural Durability: Enclosed in a robust, industrial-grade metal chassis with high-quality network and stable PoE chipsets designed for reliable 24/7 non-stop operation.

Fanless Silent Design: The energy-efficient, fanless architecture guarantees completely silent operation, making it ideal for quiet office rooms, hotels, and small businesses.

Description:

The V-SOL V1016-2G-S-P1 is a high-performance, robust, and budget-friendly unmanaged PoE switch designed specifically for small to medium enterprise setups, CCTV IP surveillance, and smart office networks across Bangladesh.
Powered by premium quality network and ultra-stable PoE chips, this switch seamlessly delivers both high-speed data transmission and centralized power over a single Ethernet cable, eliminating the need for extra power outlets.

Equipped with 16 Fast Ethernet PoE ports, 2 Gigabit RJ45 uplink ports, and 1 dedicated Gigabit SFP fiber uplink port, the V1016-2G-S-P1 provides incredible flexibility for core network backbone mapping. With its massive ~300W total PoE power budget and
smart One-Key DIP switch capabilities (Normal, VLAN, and 250m Extend Mode), it effortlessly handles long-distance IP camera setups and wireless access points. Housed in a fanless, silent-operating metal chassis, it is an excellent,
maintenance-free, and cost-effective solution for schools, hotels, Internet cafes, and corporate offices looking for heavy-duty 24/7 stability.
