V-SOL V1008-2G-P 8-Port PoE Switch

Brand: Switch / VSOL

Title: V-SOL V1008-2G-P 8-Port PoE Switch

Model: V1008-2G-P

Code: 216446910

Category: Networking / Switch (PoE) / VSOL

Product Type: Switch

Price: 3500

Warranty: 1

Availability: Available/In Stock

Description:

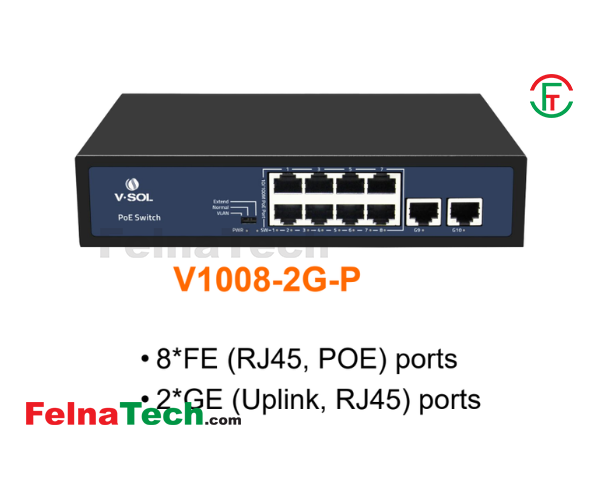

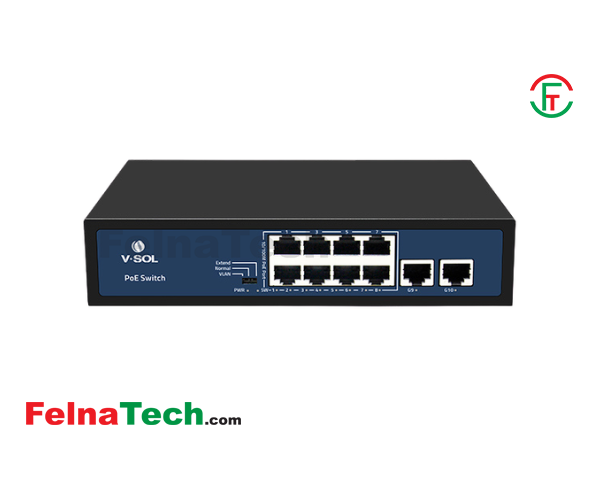

V-SOL V1008-2G-P 8-Port PoE Switch

Technical Specifications:

Model: V1008-2G-P

PoE Interfaces: 8 × 10/100 Mbps
Fast Ethernet PoE Ports (RJ45)  Uplink Interfaces: 2 × 10/100/1000 Mbps
Gigabit Ethernet Uplink Ports (RJ45)
Total Power Budget: 120W Max Budget (Up to 30W per port)
PoE Standards: Fully compatible with IEEE 802.3af (15.4W) and IEEE 802.3at (30W)
Switching Capacity: 5.6 Gbps
Packet Forwarding Rate (Throughput): 4.166 Mpps
MAC Address Table: 2K Entries with Auto-Learning
DIP Switch Modes: 3 Smart Modes (Default / VLAN / Extend)
LED Status Indicators: Power (PWR), DIP Switch (SW), Link/Act Data Indicators (1–10 Green)

Physical Specs: Durable Metal Body | Weight: ~0.62 kg | Dimensions: 200 × 118 × 44 mm

Input Voltage: AC 100–240V, 50/60Hz (Internal Power Supply)

Warranty: 1-Year Official Manufacturer Warranty

Key Features:

High-Power PoE Delivery (120W Budget): Equipped with 8 dedicated Fast Ethernet ports complying with IEEE 802.3af/at standards, supplying up to 30W per port to safely power IP cameras, wireless access points, and VoIP phones.

Dual Gigabit Uplink Ports: Features 2× 10/100/1000 Mbps auto-adaptive RJ45 Uplink ports, preventing network bottlenecks and ensuring high-speed data transmission to NVRs or core backbone routers.

One-Key Smart DIP Switch (Three Modes): * Normal Mode: Standard unmanaged switch operation where all ports communicate smoothly within 100 meters.

VLAN Mode (Port Isolation): Downlink PoE ports are completely isolated from one another to eliminate broadcast storms and boost network security.

Extend Mode (250m Long-Range): Drops port speeds to 10 Mbps but extends data and power transmission distance up to an impressive 250 meters—ideal for far-reaching IP camera setups.

Intelligent PoE Management & QoS: Built-in network optimization prioritizing critical data (QoS) to maintain lag-free video streaming and reliable real-time voice communications.

Premium Fanless Cooling: Engineered with an efficient heat-dissipation chassis layout that operates completely silently without noisy cooling fans, ensuring long-term stability and hardware longevity.

Plug-and-Play Simplicity: A 100% unmanaged switch that requires absolutely zero configuration, software installations, or IP configurations—just plug in your network cables and power up.

Carrier-Grade Structural Design: High-quality industrial network chips paired with stable PoE controller circuitry ensure 100,000+ hours of continuous uptime (MTBF) under standard operating environments.

The V-SOL V1008-2G-P is a high-performance, cost-effective, and reliable 8-port unmanaged PoE switch designed specifically for modern IP surveillance and small-to-medium enterprise (SME) network setups across Bangladesh.
Built with a heavy-duty metal enclosure, this switch features 8 Fast Ethernet PoE ports alongside 2 dedicated Gigabit uplink ports, allowing local system integrators and ISPs to build clean, efficient networks without bottlenecks.
What sets the V1008-2G-P apart is its intelligent One-Key Smart Switch functionality. With a simple toggle, users can isolate downlinks using VLAN mode to shield surveillance networks from malicious loops, or switch to Extend Mode to deliver
power up to 250 meters away. Driven by an internal 120W high-capacity power supply, it is the perfect all-in-one hardware choice for offices, residential complexes, and commercial properties requiring seamless, plug-and-play PoE power distribution.
