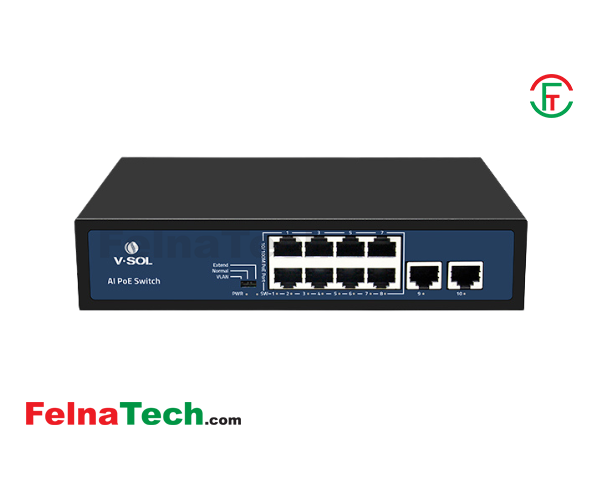

V-SOL V1008-2F-P 8-Port Unmanaged PoE Switch

Brand: Switch / VSOL

Title: V-SOL V1008-2F-P 8-Port Unmanaged PoE Switch

Model: V1008-2F-P

Code: 216446909

Category: Networking / Switch (PoE) / VSOL

Product Type: Switch

Price: 2800

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL V1008-2F-P 8-Port Unmanaged PoE Switch

Technical Specifications:

Model: V1008-2F-P

Chipset: High-quality Network Chips & Stable PoE Chips

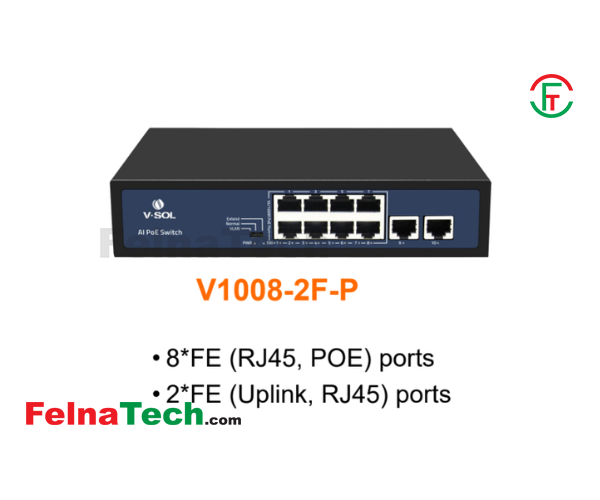

PoE Interfaces: 8 × 10/100 Mbps (Fast Ethernet) RJ45 PoE Ports
Uplink Interfaces: 2 × 10/100 Mbps (Fast Ethernet) RJ45 Uplink Ports
Switching Capacity: 2.0 Gbps
PoE Standards: IEEE 802.3af (15.4W) & IEEE 802.3at (30W) compliant
Total PoE Power Budget: 120W (Max Machine Power Consumption)
Power Supply: DC 52V / 2.3A (Input Voltage: AC 100–240V, 50/60Hz)
DIP Switch Smart Modes: Default (Normal), VLAN (Port Isolation), Extend (Link Extension)
LED Status Indicators: PWR (Power), SW (DIP Mode), 1–10 Green (Link, Data & PoE Status)

Physical Specs: Durable Metal Body | Fanless Cooling | Weight: 0.62 kg | Dim: 200 × 118 × 44 mm

Warranty: 1-Year Official Manufacturer Warranty

Key Features:

Intelligent PoE Power Supply: Fully compliant with IEEE 802.3af/at standards, automatically detecting and delivering up to 30W per port safely to connected devices.

Dual Uplink Design: Features 2× Fast Ethernet uplink ports, allowing seamless simultaneous connections to an NVR and an external router without sacrificing PoE ports.

One-Key Smart DIP Switch: Offers a convenient mechanical switch on the front panel to change between three operational modes instantly without any complex software configuration.

Hardware VLAN Port Isolation: When VLAN mode is enabled, PoE ports (1-8) are isolated from each other to prevent broadcast storms and DHCP conflicts, boosting network security.

250m Ultra-Long Range Extension: In Extend mode, the transmission distance for PoE power and data is stretched up to 250 meters—perfect for long-distance IP camera deployments.

Built-in QoS Data Priority: Automatically prioritizes critical video and voice traffic to ensure lag-free, crystal-clear surveillance feeds even during network congestion.

7×24h Steady Performance: Equipped with robust enterprise-grade chips that guarantee continuous, stable, and drop-free data transmission around the clock.

Silent Fanless Operations: Designed with a premium metal casing and a fanless thermal architecture that ensures completely silent operation and reliable heat dissipation.

Plug-and-Play Simplicity: As an unmanaged switch, it requires absolutely no software setup, IP configuration, or IT expertise—just plug in your cables and it works.

The V-SOL V1008-2F-P is a high-performance, compact, and budget-friendly unmanaged PoE switch designed specifically for IP surveillance, wireless networking, and small business deployments across Bangladesh.
Powered by high-quality network chips and an ultra-stable PoE controller, this device effortlessly powers and connects network peripherals like IP cameras, VoIP phones, and Wireless Access Points (APs) with plug-and-play ease.

Equipped with 8x Fast Ethernet PoE ports and a generous 120W total power budget, the V1008-2F-P provides independent and safe power delivery to each connected terminal. Its dual Fast Ethernet uplink ports offer great flexibility,
allowing you to link your local network simultaneously to a storage device (NVR) and a primary internet gateway. Featuring a rugged fanless metal body and specialized smart modes like VLAN and 250m long-distance extension,
it is an excellent all-in-one entry-level solution for residential complexes, offices, and security control rooms.
