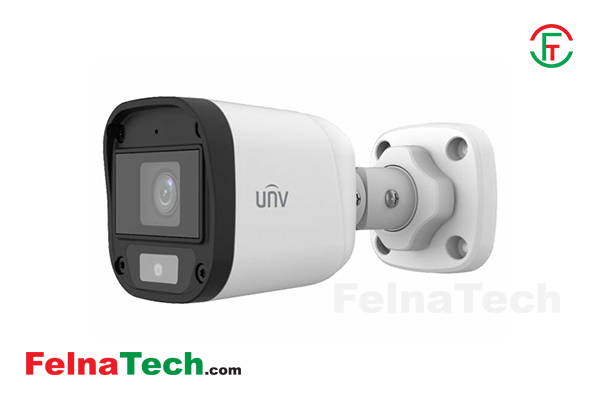

Uniview UAC-B115-AF40-W – 5MP ColourHunter Fixed Bullet Analog Camera with 4.0mm Lens, Built-in Mic, and IP67 Rating

Brand: Uniview

Title: Uniview UAC-B115-AF40-W – 5MP ColourHunter Fixed Bullet Analog Camera with 4.0mm Lens, Built-in Mic, and IP67 Rating

Model: UAC-B115-AF40-W

Code: 16145929

Category: Security / CCTV IP Camera / Uniview

Product Type: Camera

Price: 3500

Warranty: 1

Availability: Available/In Stock

Description:

SpecificationDetails

Model

UAC-B115-AF40-W

Sensor

Pixel

5MP

Size

1/2.7

Minimum Illumination

0.01 lux (F1.6, AGC ON), 0 lux (white light on)

Lens

Lens

4.0mm

Lens Mount

M12

Angle of View

H: 90.0°, V: 48.0°, D: 109.1°

Illuminator

Illuminator

One white-light illuminator

Illumination Distance

20 meters

Lifetime

≥60,000 hours

Video

Resolution

5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V); 4MP: 2560(H)×1440(V); 1080P: 1920(H)×1080(V)

Frame Rate

TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps; AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps; CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps; CVBS: PAL, NTSC

Shutter Time

PAL: 1/25s-1/50000s; NTSC: 1/30s–1/50000s


Exposure Mode

Four modes: Global (default), BLC, HLC, DWDR

Day/Night Modes

24/7 full-color imaging

Digital Noise Reduction

2D

White Balance

Auto (default), Manual

WDR

DWDR

Flip

Supports 180° horizontal flip, 180° vertical flip

Audio

Microphone

Built-in Mic

Camera Audio

TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps; CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps

Interface

Power

5.5mm power interface

Video Output

BNC, supports TVI/AHD/CVI/CVBS formats

Operating Environment

Temperature

-30℃ to 60℃ (-22℉ to 140℉)

Humidity

≤95% (RH, non-condensing)

Surge Protection

4KV

General

Power

DC 12V (±25%), with reverse polarity protection. Max 2.3W

Mount

Surface mount (default), optional backbox, pole mount bracket

Dimensions

142mm x 63mm x 65mm (L x W x H)

Material

Graphene + Plastic

Wight

150g (0.33lb)

OSD Menu Language

11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish

Certification

EMC

CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)

Safety

CE-LVD (EN 62368-1)

Environment

CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)

Protection

IP67 (IEC 60529)
