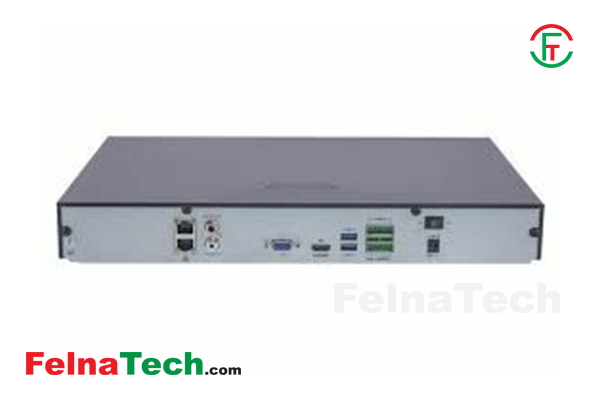

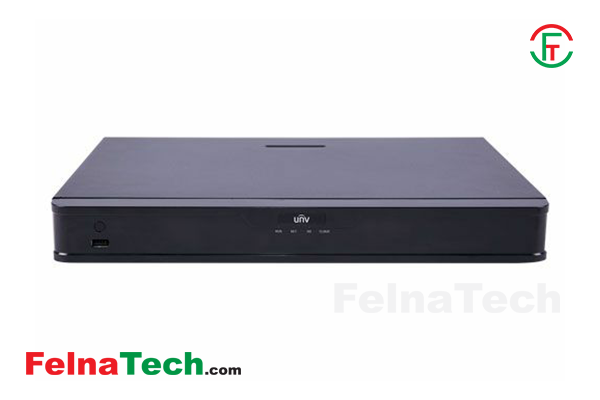

Uniview NVR302-32E 16 Channel 2 HDDs NVR

Brand: Uniview

Title: Uniview NVR302-32E 16 Channel 2 HDDs NVR

Model: NVR302-16S2-P16

Code: 161711407

Category: Security / CCTV NVR / Uniview

Product Type: NVR

Price: 27500

Warranty: 1

Availability: Available/In Stock

Description:

Model

NVR302-16E-B

Video/Audio Input

IP Video Input

16-ch

Two-way Audio Input

Network

Incoming Bandwidth

160Mbps

Outgoing Bandwidth

320Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

HDMI/VGA Output

HDMI:
4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz

Recording Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, RCA

Synchronous Playback

9-ch

16-ch

Corridor Mode Screen

3/4/5/7/9

3/4/5/7/9/10/12/16

Decoding

Decoding format

Ultra 265, H.265, H.264

Live View/ Playback

12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

3 x 12MP@25, 4 x 4K@30, 9 x 4MP@25, 16 x 1080p@30

Hard Disk

SATA

2 SATA interfaces

Capacity

up to 10TB for each disk

External Interface

Network Interface

2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces

Serial Interface

1 x RS485

USB Interface

Front panel: 1 x USB2.0
Rear panel: 1 x USB2.0, 1 x USB3.0

Alarm In

8-ch

Alarm Out

2-ch

General

Power Supply

12V DC
Power Consumption: ≤ 20 W( without HDD )

Working Environment

-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

Dimensions(W×D×H)

380mm × 315mm ×46mm (15.0″× 12.4″ ×1.8″)

Weight ( without HDD )

≤ 2.48 Kg (5.47 lb )
