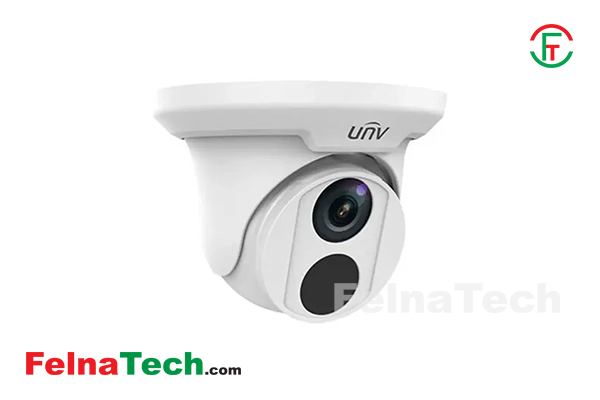

Uniview IPC3614LB-SF28K-G 4MP Fixed Dome Network Camera

Brand: Uniview

Title: Uniview IPC3614LB-SF28K-G 4MP Fixed Dome Network Camera

Model: IPC3614LB-SF28K-G

Code: 16145925

Category: Security

Sub Category: CCTV IP Camera

Sub-Sub Category: Uniview

Price: 8000

Offer Status: 0

Description:

Brand

Uniview

Model

IPC3614LB-SF28K-G 4MP

Type

Fixed Dome Network IP Camera

Sensor

1/3″, 4.0 megapixel, progressive scan, CMOS

Min. Illumination

Color: 0.01 lux (F2.0, AGC ON); 0 lux with IR

Shutter

Auto/Manual, 1 ~ 1/100000s

WDR

DWDR

S/N Ratio

>56dB

Adjustment Angle

Pan: 0° ~ 360°; Tilt: 0° ~ 75°; Rotate: 0° ~ 360°

Lens Type

2.8mm @F2.0

Iris

Fixed

Field of View (H)

97.0°

Field of View (V)

52.2°

Field of View (D)

107.5°

DORI Distance

Detect: 63.0m; Observe: 25.2m; Recognize: 12.6m; Identify: 6.3m

IR Range

Up to 30 m (98 ft)

Wavelength

850nm

IR On/Off Control

Auto/Manual

Edge Storage

Micro SD, up to 128GB

Network Storage

ANR, NAS (NFS)

Frame Rate

Main Stream: 4MP (25fps); Sub Stream: D1 (30fps)

H.264 Code Profile

Baseline, Main, High profile

Video Compression

Ultra 265, H.265, H.264, MJPEG

Video Bit Rate

128 Kbps ~ 6144 kbps

U-code

Support

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Video Stream

Dual streams

Day/Night

IR-cut filter with auto switch (ICR)

Digital Noise Reduction

2D/3D DNR

White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Smart IR

Supported

Flip

Normal/Vertical/Horizontal/180°

Defog

Digital Defog

Basic Detection

Cross-line, intrusion, motion detection, tampering alarm

General Function

Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication

Network

1 * RJ45 10M/100M Base-TX Ethernet

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host

Up to 32 users; 2 user levels (administrator/common user)

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF

Client

EZStation, EZView, EZLive

Web Browser Compatibility

Plug-in required for IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free for Chrome 57+, Firefox 58+, Edge 16+

Power Interface

Ø 5.5mm coaxial power plug

Power

DC 12V±25%, PoE (IEEE 802.3af); Max 4.0W

Surge Protection

4KVs

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH

Storage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH

Dimensions

118 x 97mm (4.6” x 3.8”)

Weight

0.30kg (0.66lb)

Body Material

Metal + Plastic

EMC

CE-EMC, FCC

Safety

CE LVD, CB, UL

Environment

CE-RoHS, WEEE, Reach

Protection

IP67 (IEC 60529)

Reset Button

N/A

Warranty

1-Year Brand Warranty
