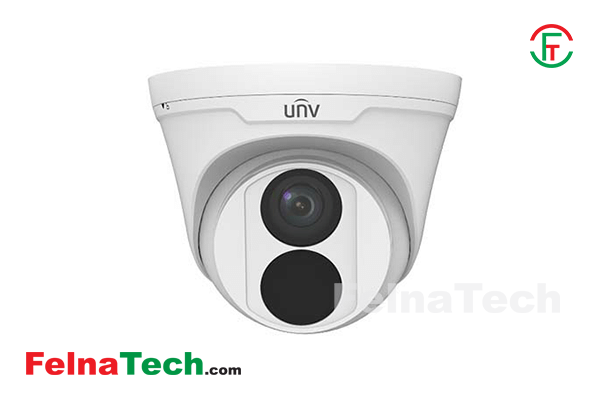

Uniview IPC3614LB-SF28-A 4MP Fixed Dome IP Camera
Model: IPC3614LB-SF28-A
Brand: Uniview
Code: 16145924
| Air Conditioner | |
|---|---|
| Noise Level | 2D/3D DNR |
| Display | |
| Viewing Angle | Angle of View (H): 97.0° Angle of View (V): 52.2° Angle of View (O): 107.5° |
| Camera | |
| Camera Feature | IR-cut filter with auto switch (ICR) |
| Pixels | 0.01Lux (F2.0, AGC ON) |
| LENS | M12 |
| Lens type | 2.8mm and 4.0mm @2.0, Fixed-focal |
| Shutter Speed | Auto/Manual, 1 ~ 1/100000s |
| Mouse & touch | |
| Frame Rate | 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps |
| Audio & Microphone | |
| Bit Rate | 128 Kbps~6144 kbps |
| Video Features | |
| Video standard | Ultra 265, H.265, H.264, MJPEG |
| Technical Info | |
| IP Rating | Up to 30m (98ft) IR range |
| Battery And Power | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 4.0W Power Interface: Ø 5.5mm coaxial power plug |
| Special Features | |
| Motion Enhancer | Up to 4 areas |
| Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS |
| Physical Specification | |
| Temperature | Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Dimension | Φ118 x 97mm |
| Weight | 0.30kg |
| Others | |
| Other Features | Wavelength: 850nm IR On/Off Control: Auto/Manual White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 WDR: DWDR H.264 code profile: Baseline profile, Main profile, High profile Sub Stream:4CIF (704*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Warranty Information | |
| Warranty | 1 Year |
Brand: Uniview
Title: Uniview IPC3614LB-SF28-A 4MP Fixed Dome IP Camera
Model: IPC3614LB-SF28-A
Code: 16145924
Category: Security
Sub Category: CCTV IP Camera
Sub-Sub Category: Uniview
Price: 5600
Offer Status: 0
Description:
Air Conditioner
Noise Level
2D/3D DNR
Display
Viewing Angle
Angle of View (H): 97.0°
Angle of View (V): 52.2°
Angle of View (O): 107.5°
Camera
Camera Feature
IR-cut filter with auto switch (ICR)
Pixels
0.01Lux (F2.0, AGC ON)
LENS
M12
Lens type
2.8mm and 4.0mm @2.0, Fixed-focal
Shutter Speed
Auto/Manual, 1 ~ 1/100000s
Mouse & touch
Frame Rate
4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Audio & Microphone
Bit Rate
128 Kbps~6144 kbps
Video Features
Video standard
Ultra 265, H.265, H.264, MJPEG
Technical Info
IP Rating
Up to 30m (98ft) IR range
Battery And Power
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.0W
Power Interface: Ø 5.5mm coaxial power plug
Special Features
Motion Enhancer
Up to 4 areas
Sensor
1/3″, 4.0 megapixel, progressive scan, CMOS
Physical Specification
Temperature
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Dimension
Φ118 x 97mm
Weight
0.30kg
Others
Other Features
Wavelength: 850nm
IR On/Off Control: Auto/Manual
White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
WDR: DWDR
H.264 code profile: Baseline profile, Main profile, High profile
Sub Stream:4CIF (704*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Warranty Information
Warranty
1 Year
