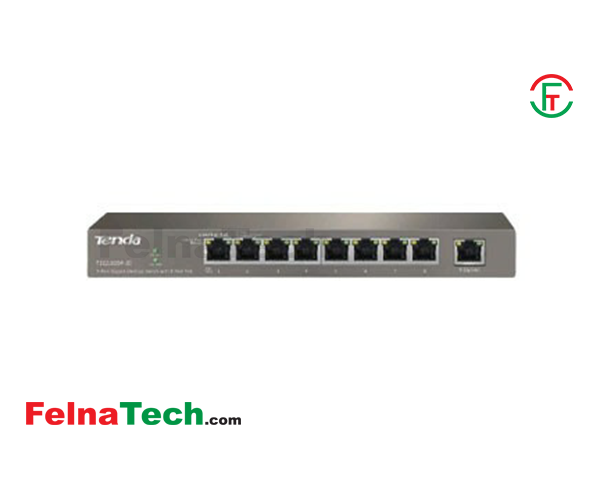

Tenda TEG1009P-EI 9 Port Gigabit Desktop Switch

Brand: Tenda

Title: Tenda TEG1009P-EI 9 Port Gigabit Desktop Switch

Model: TENDA-TEG1009P-EI

Code: 21637113

Category: Networking / Switch / Tenda

Product Type: Switch

Price: 7500

Warranty: 1

Availability: Available/In Stock

Description:

Networking & Connectivity

MAC Address Table

4K

Protocols

IEEE 802.3af、IEEE 802.3at

Standards

IEEE 802.3、 IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x

Switching Capacity

18 Gbps

Throughput

1.488Mpps

Battery And Power

Power Supply

99W

Input

AC：100－240V～ 50/60Hz
DC：51V /2.1A （Power Adapter Output ）

Power Consumption

in full configuration：<107W

Ports

Interface

8 10/100/1000Mbps RJ45 Ports(Data/PoE)
1 10/100/1000Mbps RJ45 Ports(Data)
(Auto Negotiation/Auto MDI/MDIX)

Special Features

Certifications

FCC、CE、RoHS

Others

Other Features

Forwarding mode: Store-forward and cut-through

IP Phone

PoE Support

Port 1 to Port 8 support standard IEEE802.3at/af
power( maximum power for each port is 30W)，
PoE power type is end-span(12+, 36- line pair)

Physical Specification

Humidity

Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Temperature

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)

Dimension

235mm*103mm*27mm

Technical Info

MTBF

≥50,000 hours(about 5 years)

Indicators

Link/Act , PoE Status, Power、PoE Max

Warranty Information

Warranty

1 Year
