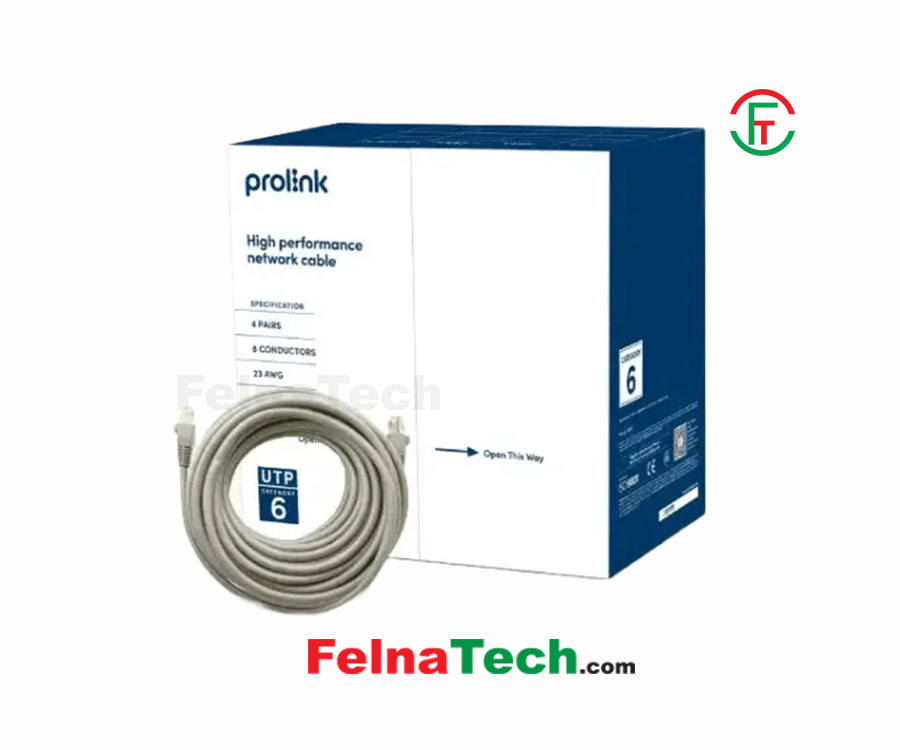

PROLiNK CAT6 UTP Cable 23AWG Gray For Full Box Sales -305 Meter-1000FT-

Brand: UTP Cable / PROLiNK

Title: PROLiNK CAT6 UTP Cable 23AWG Gray For Full Box Sales -305 Meter-1000FT-

Model: PROLINK-CAT6

Code: 2112541831

Category: Networking / Networking Cable / UTP (CAT6)

Product Type: UTP Cable

Price: 6900

Warranty: 0

Availability: Out of Stock

Description:

Connection Class

Standard

TIA/EIA-568A/568B & ISO 11801

Shielding Connector

UTP

Connector Type

23 AWG (4 pairs)

Category Connector

Cat6

Physical Specs

Dimensions

390 x 390 x 235mm (L x W x H)
Easy-pull boxes/Cable length of 305M

Color

A White-Blue Stripe and a Blue
B White-Orange Stripe and Orange
C White-Green Stripe and Green
D White-Brown Stripe and Brown

Cable Details

Conductor

Material: CCA (Copper content: 35%)
Conductor Diameter: 0.56±0.02mm
Conductor Resistance MAX 18Ω/100m at 20°C
Mutual Capacitance: MAX 5600pf/100M
Resistance Unbalance: MAX 5%
Resistance Unbalance: MAX 300pf/100M

Insulation

Insulation: High-Density Polyethylene
Insulation Diameter: 0.93±0.02mm
Insulation Nominal Wall Thickness: 0.2mm
Insulation Resistance: MIN 150MΩ/KM

Twisting

2 Insulated conductors twisted together

Technical Detail

Cable Designation

Cable Diameter: 5.6±0.15mm
Printing: Each meter printed with a sequential length counter
Jacket Nominal Wall Thickness: 0.7±0.01mm

Outer Diameter

Cable Diameter: 5.6±0.15mm

Weight

9.67kg/roll (Cable Only)
10.53kg (With Box)

Temperature ange

75℃
