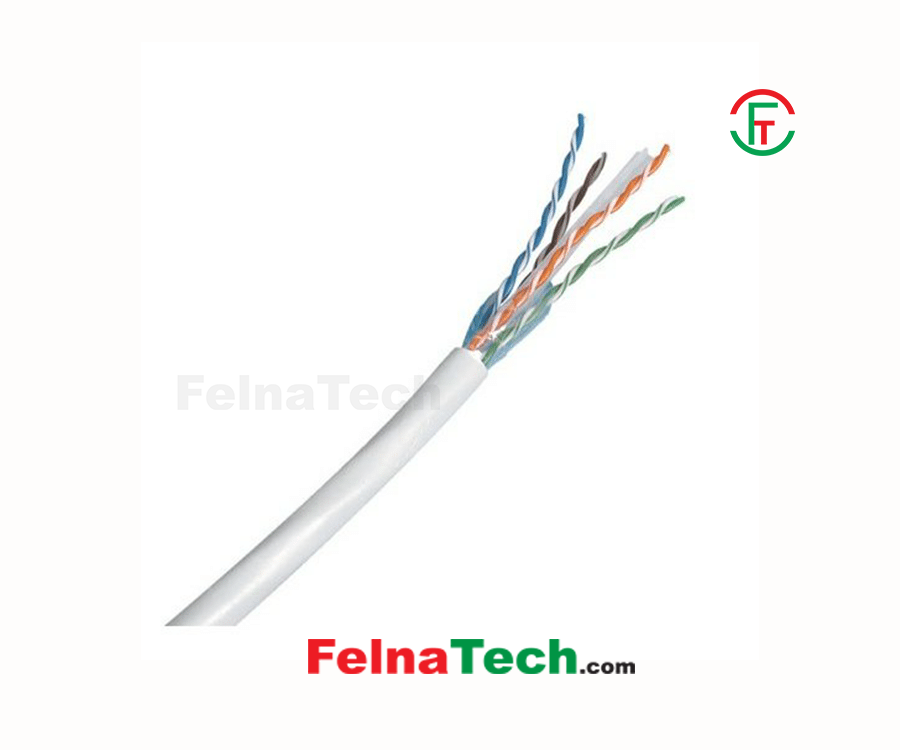

R&M R795138 Cat-6 U-UTP 305 Meter Network Cable
Model: CAT6-U-UTP-FRPVC
Brand: R&M
Code: 2112541837
| Connection Class | |
|---|---|
| Standard | ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1 |
| Physical Specs | |
| Color | Yellow Blue Grey |
| Cable Details | |
| Conductor | Bare solid copper |
| Insulation | HDPE, overall Ø 0.92±0.02 mm |
| Twisting | 2 wires to the pair |
| Cable Lay-Up | 4 pairs to the core with cross separator |
| Pair Screen | Non |
| Overall Screen | Non |
| Sheath | PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal |
| Cable Information | |
| Application | Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM |
| Standards | ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1 |
| Fire Rating | Flame retardant- PVC |
| Technical Detail | |
| Cable Designation | U/UTP Cat.6 250MHz |
| Packaging | Drum 305 m |
| Outer Diameter | 5.8±0.3mm |
| Weight | 13.0kg nominal |
| Pulling Pressure | 11Kg nominal |
| Segregation Class | B |
| Tensile Strength | > 16.5N/mm² |
| Bending Radius | ≥ 25 mm during operation (without load) ≥ 50 mm during installation (with load) |
| Temperature ange | During operation: -20°C…+ 60°C During installation: 0°C…+ 50°C |
Brand: UTP Cable / R&M
Title: R&M R795138 Cat-6 U-UTP 305 Meter Network Cable
Model: CAT6-U-UTP-FRPVC
Code: 2112541837
Category: Networking / Networking Cable / UTP (CAT6)
Product Type: UTP Cable
Price: 17500
Warranty: 0
Availability: Available/In Stock
Description:
Connection Class
Standard
ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1
Physical Specs
Color
Yellow
Blue
Grey
Cable Details
Conductor
Bare solid copper
Insulation
HDPE, overall Ø 0.92±0.02 mm
Twisting
2 wires to the pair
Cable Lay-Up
4 pairs to the core with cross separator
Pair Screen
Non
Overall Screen
Non
Sheath
PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal
Cable Information
Application
Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM
Standards
ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1
Fire Rating
Flame retardant- PVC
Technical Detail
Cable Designation
U/UTP Cat.6 250MHz
Packaging
Drum 305 m
Outer Diameter
5.8±0.3mm
Weight
13.0kg nominal
Pulling Pressure
11Kg nominal
Segregation Class
B
Tensile Strength
> 16.5N/mm²
Bending Radius
≥ 25 mm during operation (without load)
≥ 50 mm during installation (with load)
Temperature ange
During operation: -20°C…+ 60°C During installation: 0°C…+ 50°C
