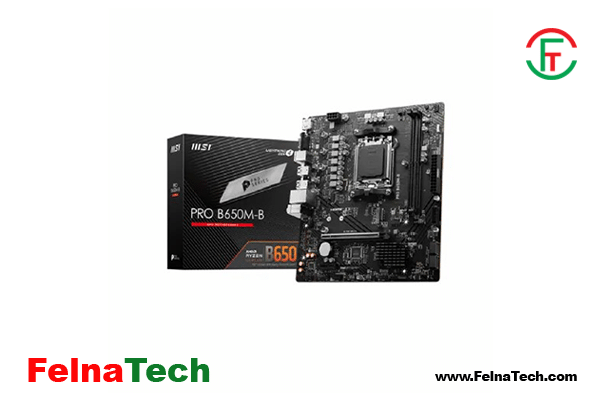

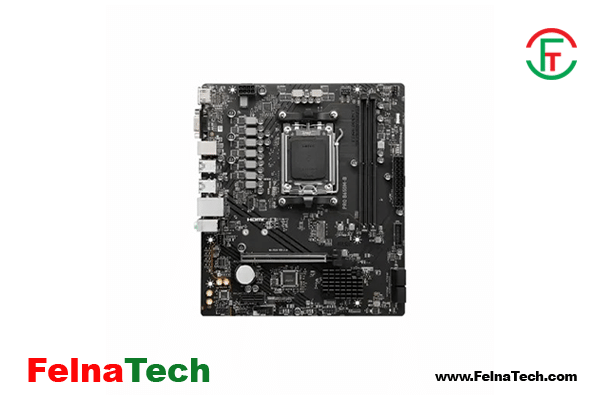

MSI Pro B650M-B DDR5 AMD AM5 m-ATX Motherboard

Brand: MSI

Title: MSI Pro B650M-B DDR5 AMD AM5 m-ATX Motherboard

Model: PRO-B650M-B

Code: 12229712

Category: Component

Sub Category: Motherboard AMD

Sub-Sub Category: MSI

Price: 14300

Offer Status: 0

Description:

Expansion Slots

Supported CPU

Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
Socket AM5

Chipset

AMD B650

Form Factor

mATX
243.84mmx243.84mm

Audio

Realtek ALC897 Codec
7.1-Channel High Definition Audio

PCI

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Memory

Type

DDR5

Slots

2

Supported Memory

6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Maximum Memory

96GB

Graphics

Graphics

1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Connector & Ports

HDMI

1x HDMI

Display Port (s)

1x DisplayPort

USB (s)

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)

LAN Port (s)

Realtek RTL8125BG 2.5G LAN

Supported Storage

1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices


Audio

Audio Connectors

Internal I/O Ports

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports

TPM (Trusted Platform Module )

1x TPM pin header(Support TPM 2.0)

Warranty Information

Manufacturing Warranty

3 Years
