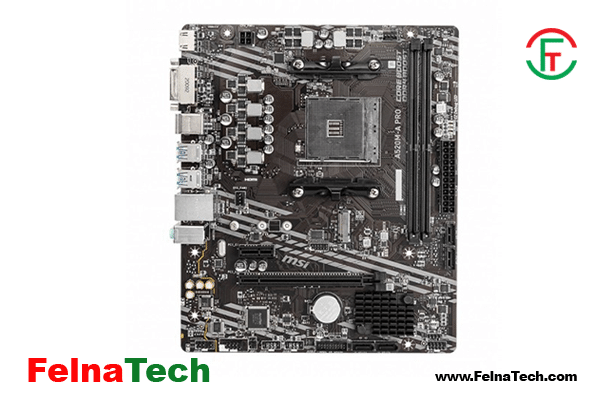

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

Brand: MSI

Title: MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

Model: MSI-A520M-A-PRO

Code: 12229709

Category: Component

Sub Category: Motherboard AMD

Sub-Sub Category: MSI

Price: 9130

Offer Status: 0

Description:

Expansion Slots

Supported CPU

AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors


Chipset

AMD B520

Form Factor

Micro-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)

PCI

1x PCIe 3.0 x1 slot
1x PCIe x16 slot

M.2 Socket

1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices

Memory

Type

Dual-channel memory architecture

Slots

2x DDR4 memory slots

Supported Memory

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

Maximum Memory

64GB

Graphics

Graphics

1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

Max Shared Memory

16GB

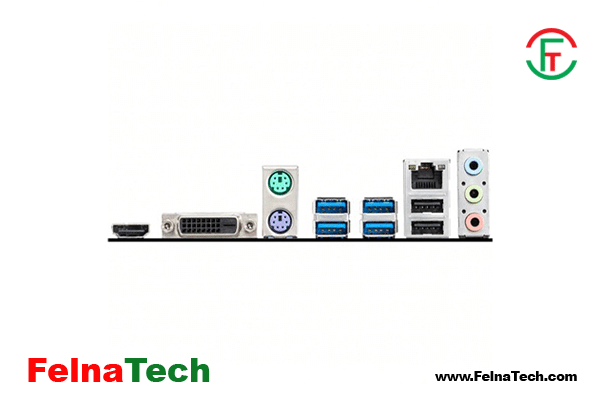

Connector & Ports

HDMI

1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz

DVI-D (s)

1x DVI-D port, maximum resolution of 1920x1200@60Hz

USB (s)

AMD A520 Chipset
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

LAN Port (s)

1x Realtek RTL8111H Gigabit LAN controller

Supported Storage

AMD A520 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices

Audio

Realtek ALC892 Codec
7.1-Channel High Definition Audio

Internal I/O Ports

1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper

TPM (Trusted Platform Module )

1xTPM module connector


Others

Special Features

RAID:
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Warranty Information

Manufacturing Warranty

03 Years Warranty
