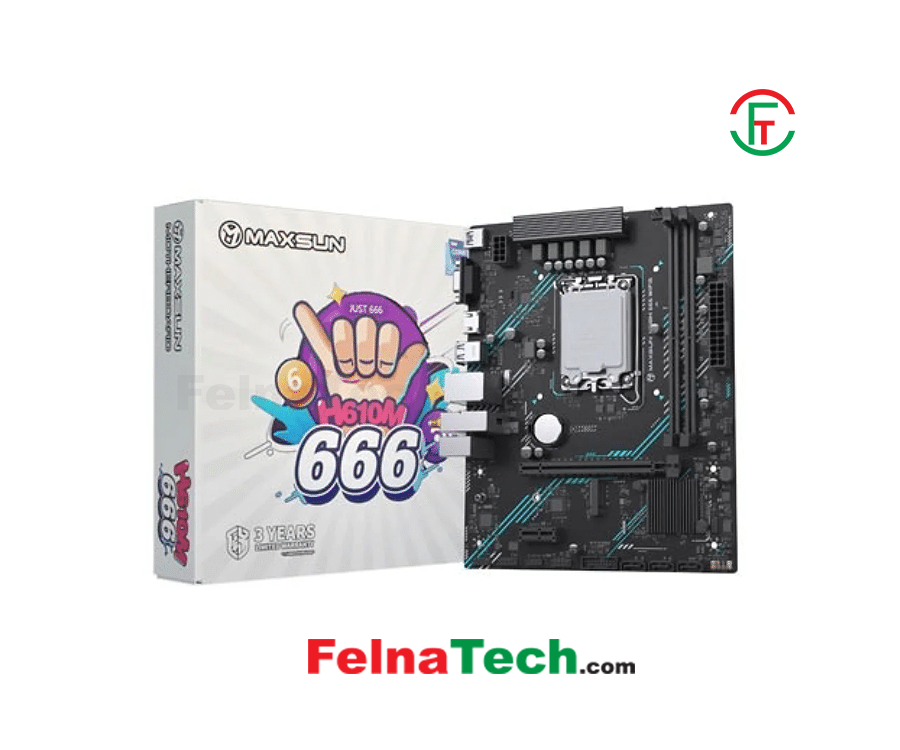

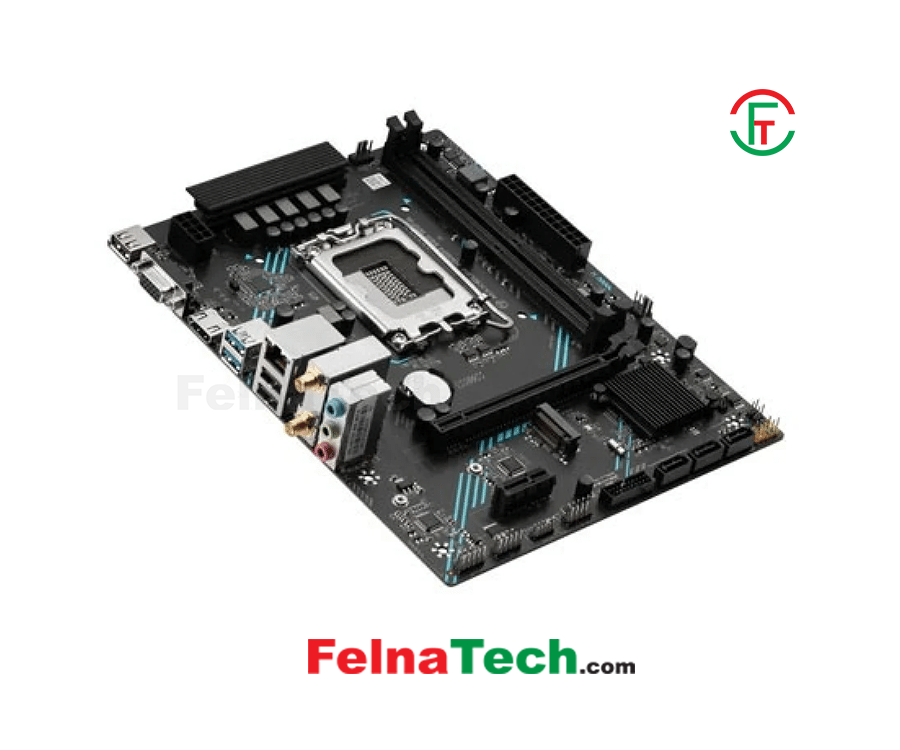

Maxsun MS-H610M 666 WIFI6 DDR4 LGA1700 Motherboard

Brand: Motherboard / Maxsun

Title: Maxsun MS-H610M 666 WIFI6 DDR4 LGA1700 Motherboard

Model: MS-H610M-666-WIFI6

Code: 123242009

Category: Component / Motherboard Intel / Maxsun

Product Type: Motherboard

Price: 10200

Warranty: 3

Availability: Available/In Stock

Description:

CHIPSET

INTEL H610

CPU

Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700

MEMORY

2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz
Supports Intel® XMP 2.0 OC
Supports Dual-Controller Dual-Channel mode

ONBOARD GRAPHICS

1x Display Port 1.2
1x HDMI™ port
*HDMI™ port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

EXPANSION SLOT

1x PCIe 4.0 x16 slot
1x PCIe 3.0 x1 slot

STORAGE

M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode)
4x SATA 6Gb/s ports

RAID

Not Supports RAID

USB

*Front USB (Total 4 ports)
2x USB 3.2 Gen1 Type A
2x USB 2.0
*Rear USB (Total 6 ports)
2x USB 3.2 Gen1 Type A
4x USB 2.0

LAN

Realtek® RTL8111H 1G LAN

AUDIO

Realtek® ALC897 Codec
5.1-Channel High Definition Audio

INTERNAL I/O

1x 24-pin Power Connector(ATX_PWR)
1x 8-pin Power Connector(CPU_PWR)
1x CPU Fan
3x System Fan
1x M.2 slots (Key-M)
4x SATA 6Gb/s ports
1x 2-Pin CLR_CMOS
1x 4-Pin BUZZER
1x Front Audio
1x COM_A Port
1x 9-Pin DEBUG_CON
1x TPM pin header(Support TPM 2.0)

LED FEATURE

4x Distributed Debug LED

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

FORM FACTOR

M-ATX
220mm x 185mm

Warranty

3 years
