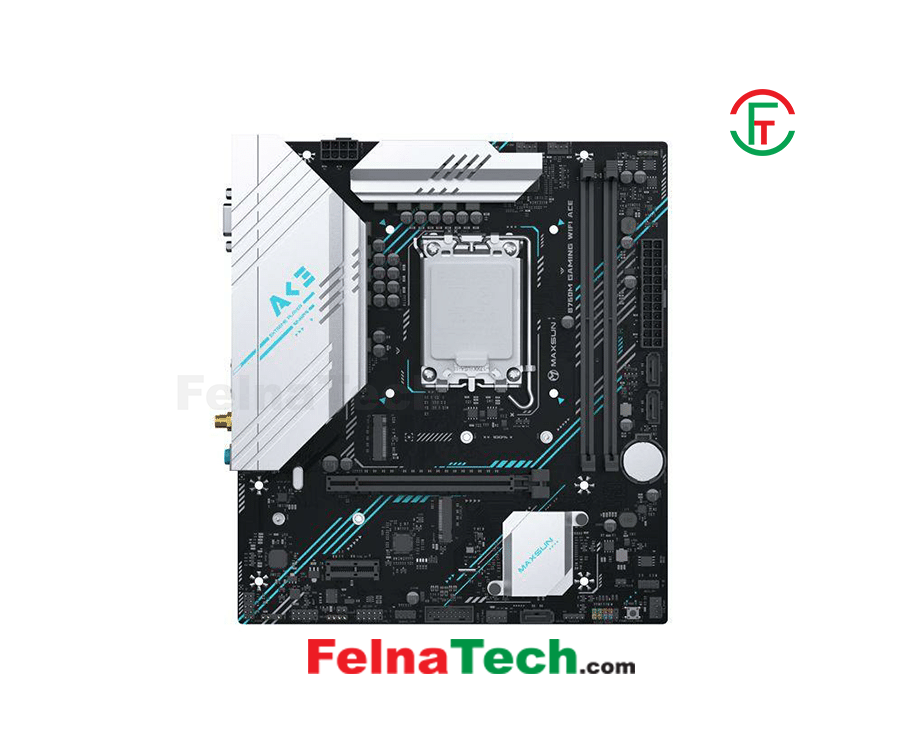

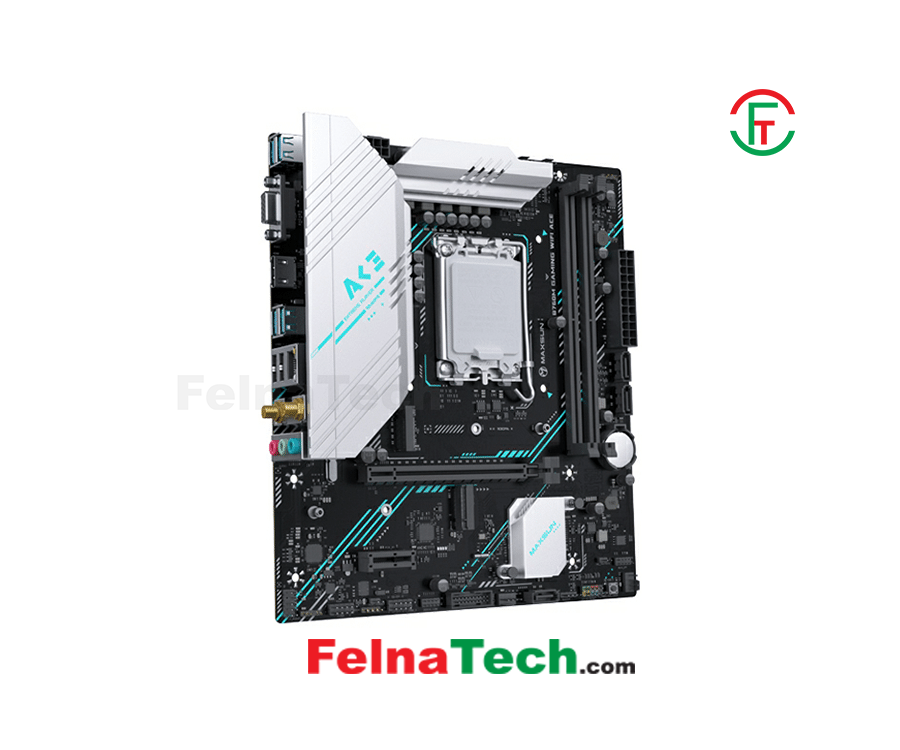

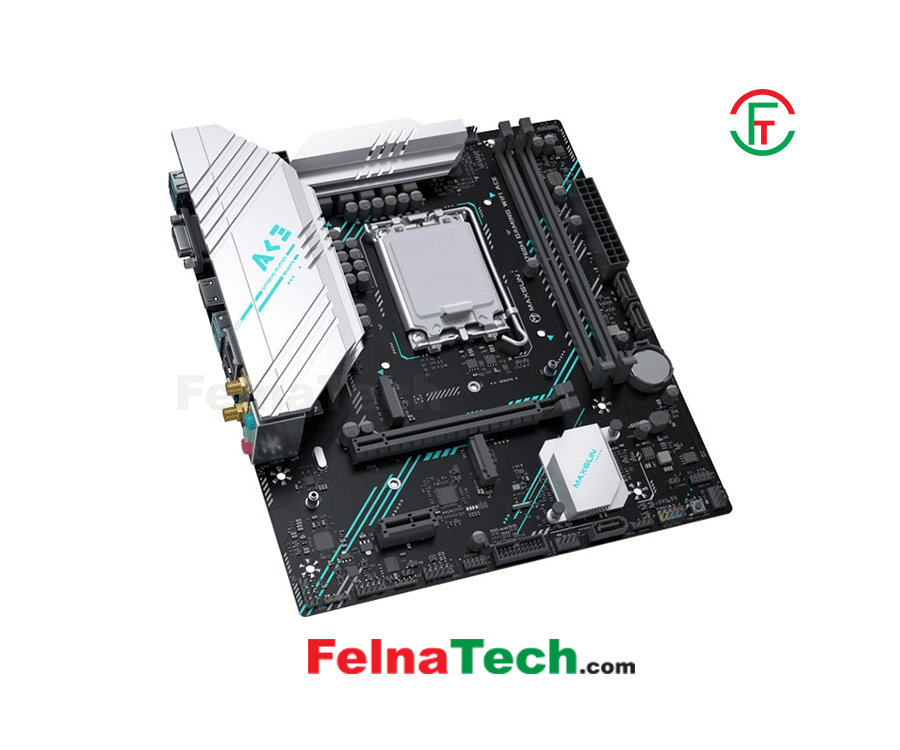

Maxsun MS-B760M GAMING WIFI ACE-D5 DDR5 Intel Micro-ATX Motherboard

Brand: Motherboard / Maxsun

Title: Maxsun MS-B760M GAMING WIFI ACE-D5 DDR5 Intel Micro-ATX Motherboard

Model: MS-B760M-GAMING-WIFI-ACE-D5

Code: 123242007

Category: Component / Motherboard Intel / Maxsun

Product Type: Motherboard

Price: 16500

Warranty: 3

Availability: Available/In Stock

Description:

Brand

Maxsun

Model

Maxsun B760M Gaming ACE (Wi-Fi 6E)

Body Color

Black

Part No

MS-B760M GAMING WIFI ACE-D5

Chipset Brand

Intel

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

No

Supported CPU

12th/13th/14th Gen processors

Generation

12th/13th/14th

Memory Type

DDR5

Memory MHz

4800/ 5600/ 6400MHz OC + memory frequency

Memory Channel

Dual

Memory Slot

2

Memory Max.

96GB

Optane Memory Support

No

M.2/SSD Expansion Slot

2

M.2/SSD Expansion Slot Details

2 x M.2 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only)

Graphics

Integrated

Graphics Chipset

Integrated With Processor

PCI Express Slot

1x PCIE x16, 1x PCIE x1

Audio Chipset

REALTEK ALC 897

LAN Chipset

Integrated REALTEK 8125 chip

LAN Speed (Mbps)

10/ 100/ 1000/ 2500Mbps

WiFi

Yes

WiFi Technology

Wi-Fi 6E 802.11 b/a/g/n/ac/ax

Bluetooth

Bluetooth 5.3

USB Port

4 x USB 3.2 Type-A, 2 x USB 2.0 Type-A

VGA Port

1

DVI Port

No

HDMI Port

1

SATA Port

4 x SATA

Thunderbolt

No

Back-Connect Design

No

CrossFire Support

No

Sli Support

No

Raid Support

RAID 0, 1, 5, 10

RGB Support

ARGB

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Supported Operating System

Windows 10/ 11, Ubuntu 64bit

Warranty Details

3 year
