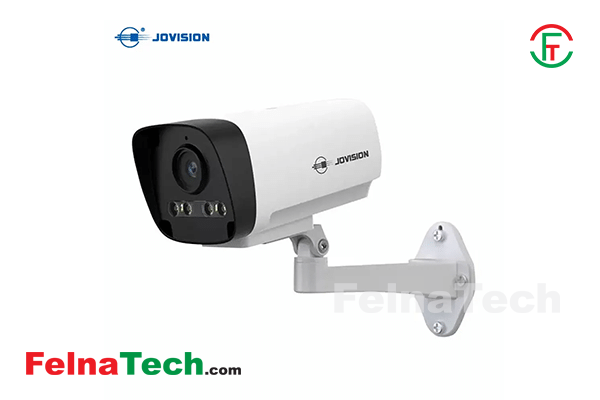

JVS-N917-SDL 3.0MP Full-Color Video & Audio PoE Network Camera
Model: JVS-N917-SDL
Brand: Jovision
Code: 161413918
| Video | |
| Image Sensor | 1/2.9″ CMOS Sensor |
| Max Resolution | 2304×1296 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.264/H.265 |
| Framerate | 20fps |
| Bitrate | Main Stream: 256Kbps ~ 4MbpsSub Stream: 68Kbps~1024Kbps |
| SNR (dB) | 50dB |
| Min. Illumination | 0Lux (light ON) |
| Lens | |
| Interface Type | M12 |
| Lens | 3.6mm, 6mm |
| FOV | 3.6mm:H 83.8°, V 42.7°, D 100.1°6mm:H 52.4°, V 28.4°, D 60.8° |
| Function | |
| Audio Codec | G.711U/G.711A (default) |
| Exposure Control | Auto |
| White Balance | Auto |
| Gain Control | Auto |
| Digital 3D Noise Reduction | Support |
| OSD Information Setting | Large font OSD, OSD flashing on alarm, OSD position settings |
| SNTP | Support |
| Schedule Reboot | Support |
| Smart Defog | Support |
| Motion Detection | Support Humanoid Detection |
| Image Setting | Support Saturation, Brightness, Contrast, Sharpness adjustment |
| Image Style | Standard, Soft, Transparent |
| Day and Night Function | Auto, Always Black & White, Always Color, Scheduled Color |
| Privacy Mask | Support up 8 areas |
| Electronic Screen Setting | Support maximum and minimum exposure time setting |
| Night Vision Optimization | Support |
| DWDR | Support |
| Screen Settings | Screen mirroring, Screen flipping |
| IP Adaptation | Support automatic adaptation of IP address (Optional) |
| Intelligent Analysis | Support Region Intrusion Detection, Line Crossing Detection, Video Blocking Detection,
People Counting |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and Video, Image, Alarm, Network management, Intelligent Analysis |
| Audio Function | Built-in Mic and Speaker |
| VQC Technology | Support |
| Network | |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 2x Streams |
| Network Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| ONVIF | Standard ONVIF |
| Network Transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Lights | 4 White LEDs + 4 IR LEDs |
| IR Distance | Up to 50 Meters |
| Waterproof Level | IP67 |
| Power Supply | DC12V or PoE (IEEE802.3af) |
| Power Consumption | <3W (During Day); <6W (At Night) |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh |
| Color/Material | Black and White/Plastic |
| Dimensions (WxHxD) | 95x95x175mm |
| Weight | 280g |
| Installation Method | Wall or ceiling mount (Bracket Optional) |
Brand: Jovision
Title: JVS-N917-SDL 3.0MP Full-Color Video & Audio PoE Network Camera
Model: JVS-N917-SDL
Code: 161413918
Category: Security
Sub Category: CCTV IP Camera
Sub-Sub Category: Jovision
Price: 3350
Offer Status: 0
Description:
Video
Image Sensor
1/2.9″ CMOS Sensor
Max Resolution
2304×1296
Effective Pixels
3.0MP
Compression Standard
H.264/H.265
Framerate
20fps
Bitrate
Main Stream: 256Kbps ~ 4MbpsSub Stream: 68Kbps~1024Kbps
SNR (dB)
50dB
Min. Illumination
0Lux (light ON)
Lens
Interface Type
M12
Lens
3.6mm, 6mm
FOV
3.6mm:H 83.8°, V 42.7°, D 100.1°6mm:H 52.4°, V 28.4°, D 60.8°
Function
Audio Codec
G.711U/G.711A (default)
Exposure Control
Auto
White Balance
Auto
Gain Control
Auto
Digital 3D Noise Reduction
Support
OSD Information Setting
Large font OSD, OSD flashing on alarm, OSD position settings
SNTP
Support
Schedule Reboot
Support
Smart Defog
Support
Motion Detection
Support Humanoid Detection
Image Setting
Support Saturation, Brightness, Contrast, Sharpness adjustment
Image Style
Standard, Soft, Transparent
Day and Night Function
Auto, Always Black & White, Always Color, Scheduled Color
Privacy Mask
Support up 8 areas
Electronic Screen Setting
Support maximum and minimum exposure time setting
Night Vision Optimization
Support
DWDR
Support
Screen Settings
Screen mirroring, Screen flipping
IP Adaptation
Support automatic adaptation of IP address (Optional)
Intelligent Analysis
Support Region Intrusion Detection, Line Crossing Detection, Video Blocking Detection,
People Counting
Alarm Method
Email Alarm, Client Alarm
Remote Operation
System, Audio and Video, Image, Alarm, Network management, Intelligent Analysis
Audio Function
Built-in Mic and Speaker
VQC Technology
Support
Network
Ethernet
10/100Mbps Ethernet
Stream
2x Streams
Network Protocols
HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
ONVIF
Standard ONVIF
Network Transmission
CloudSEE 2.0
Browser
IE8+, Chrome18+, Firefox5.0+, Safari5.02+
User
Up to 13 Users
App
Support iOS/Android
General
Lights
4 White LEDs + 4 IR LEDs
IR Distance
Up to 50 Meters
Waterproof Level
IP67
Power Supply
DC12V or PoE (IEEE802.3af)
Power Consumption
<3W (During Day); <6W (At Night)
Working Temperature
-20°C ~ 60°C
Working Humidity
10% ~ 90% Rh
Color/Material
Black and White/Plastic
Dimensions (WxHxD)
95x95x175mm
Weight
280g
Installation Method
Wall or ceiling mount (Bracket Optional)
