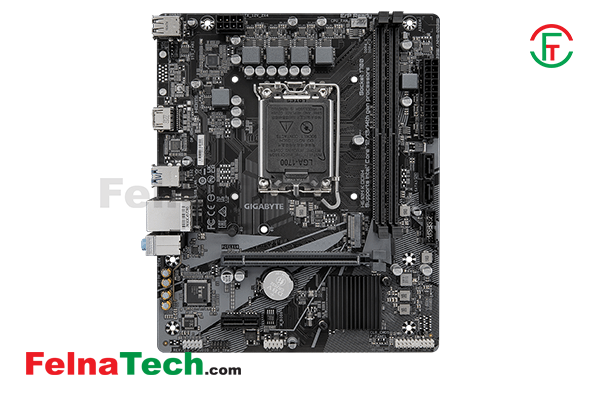

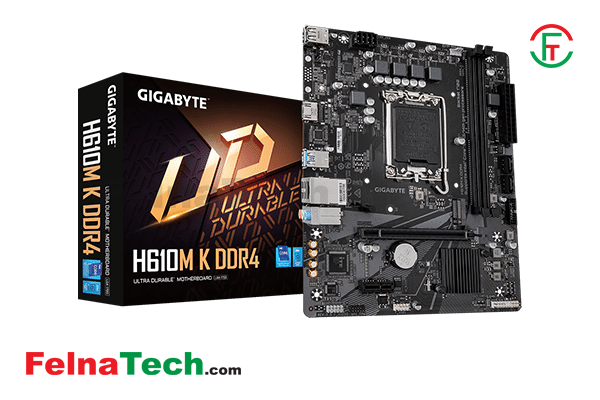

GIGABYTE H610M K DDR4 Micro ATX Motherboard

Brand: Gigabyte

Title: GIGABYTE H610M K DDR4 Micro ATX Motherboard

Model: GIGABYTE-H610M-K-DDR4

Code: 12323326

Category: Component / Motherboard Intel / GigaByte

Product Type: Motherboard

Price: 10300

Warranty: 3

Availability: Available/In Stock

Description:

Basic Information

Supported CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)

Chipset

Intel H610 Express Chipset

BIOS

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

Micro ATX Form Factor; 22.6cm x 18.5cm

Audio

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

Expansion Slots

PCI

CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Memory

Type

DDR4

Slots

2 x DIMM sockets

Supported Memory

Support for 3200/3000/2933/2666/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory

supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Graphics

Graphics

Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)

Connector & Ports

HDMI

1 x HDMI port

USB (s)

Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

LAN Port (s)

Realtek GbE LAN chip (1 Gbps/100 Mbps)

Supported Storage

Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
2 x SATA 6Gb/s connectors

Internal I/O Ports

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper

Back Panel Connectors
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

TPM (Trusted Platform Module )

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features

iTE I/O Controller Chip

Bundled Software

Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty Information

Manufacturing Warranty

3 years Warranty
