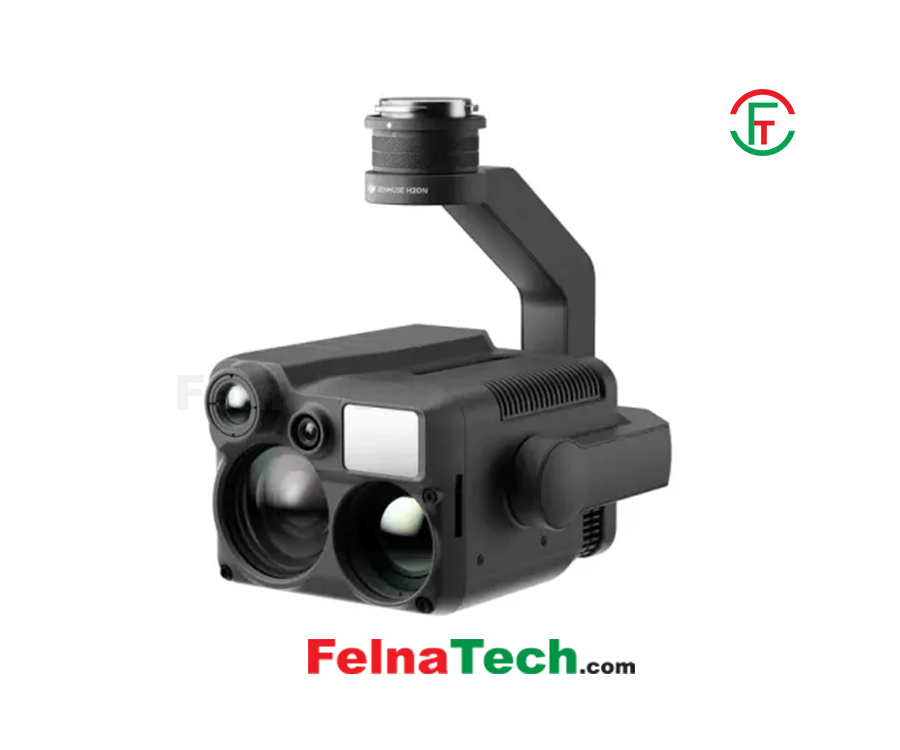

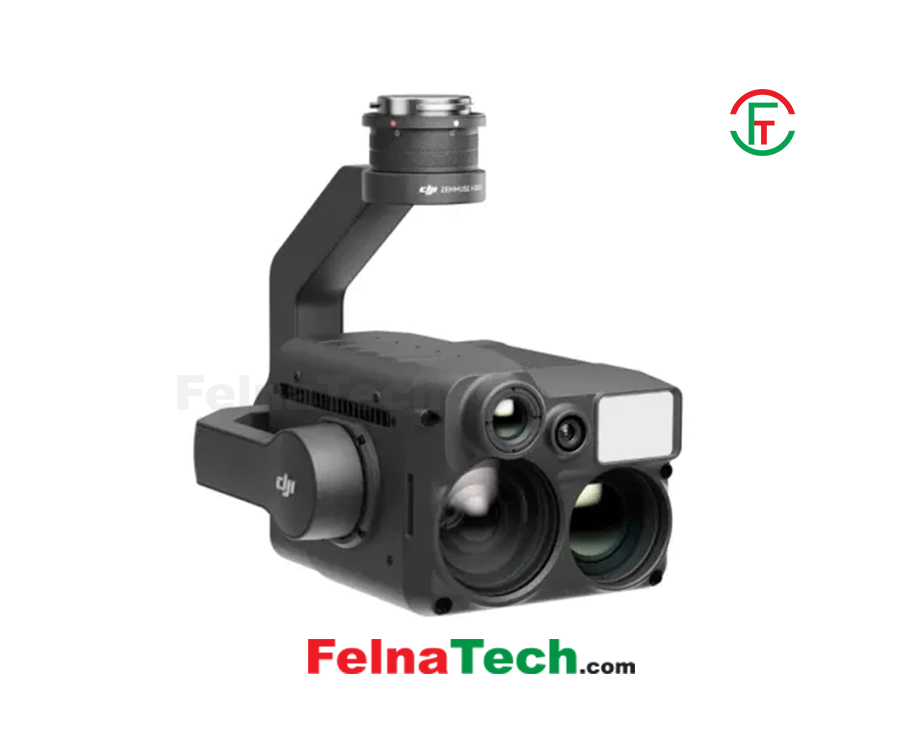

DJI Zenmuse H20N UAV Load Gimbal Camera

Brand: DJI

Title: DJI Zenmuse H20N UAV Load Gimbal Camera

Model: ZENMUSE-H20N

Code: 1812134115

Category: Gadget / Drone / Drone Accessories

Product Type: Drone Accessories

Price: 950000

Warranty: 0

Availability: Out of Stock

Description:

Gimbal

Angular Vibration Range

Angular Vibration Range: ±0.01°

Others

Mount: Detachable
Controllable Range;
Pan: ±320°
Tilt: -120° to +60°

Mechanical Range;
Pan: ±330°
Tilt: -132.5° to +68°
Roll: -90° to +60°

Max Control Speed;
Pan: 90°/s
Tilt: 90°/s

Camera

Video

Vid

Others

Zoom Camera
Sensor: 1/1.8" CMOS; Effective Pixels: 4M
Lens: Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm)
Aperture: f/1.6-f/11
Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)
Focus Mode: MF/AF-C/AF-S
Exposure Mode: Manual, Auto
Exposure Compensation: ±3.0 (1/3 increments)
Metering Mode: Spot Metering, Average Metering
AE Lock: Supported

Electronic Shutter Speed;
Photo: 8-1/8000 s
Video: 1/30-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s

ISO Range;
Video: 100-102400
Photo: 100-102400

Video Resolution
2688×1512@30fps
1920×1080@30fps
1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off)
1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On)

Video Format: MP4
Video Caption: Supported
Max Image Size: 2688×1512
Photo Format: JPEG

Wide Camera

Sensor: 1/2.7" CMOS; Effective Pixels: 2M
Lens;
DFOV: 73.6°
Focal Length: 4.5 mm (equivalent: approximately 29 mm)
Aperture: f/2.8
Focus: 1 m to ∞

Exposure Mode: Auto
Exposure Compensation: ±3.0 (1/3 increments)
Metering Mode: Spot Metering, Average Metering
AE Lock: Supported

Electronic Shutter Speed;
Photo: 0.8-1/8000 s
Video: 1/30-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s

ISO Range;
Video: 100-102400
Photo: 100-102400

Video Resolution
1920×1080@30fps
1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off)
1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On)

Video Format: MP4
Video Caption: Supported
Max. Image Size: 1920×1080
Image Format: JPEG

Tele Infrared Thermal Camera
Thermal Imager: Uncooled VOx Microbolometer

Lens
DFOV: 12.5°
Focal Length: 44.5 mm (equivalent: approximately 196 mm)
Aperture: f/1.2
Focus: 45 m to ∞

Equivalent Digital Zoom: 16x, 32x
Video Resolution: 640×512@30fps
Video Format: MP4
Image Resolution: 640×512
Image Format: R-JPEG* (16-bit raw included)
Pixel Pitch: 12 μm
Spectral Band: 8-14 μm
Sensitivity (NETD): ≤50 mK @ f/1.0
Temperature Measurement Method: Spot Meter, Area Measurement

Scene Range
-20° C to 150° C (High Gain)
0° C to 500° C (Low Gain)

Temperature Alert: Supported
FFC: Auto/Manual
Palette: White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Wide Infrared Thermal Camera
Thermal Imager: Uncooled VOx Microbolometer
Lens;
DFOV: 45.5°
Focal Length: 12 mm (equivalent: approximately 53 mm)
Aperture: f/1.0
Focus: 5 m to ∞
Equivalent digital zoom rate: 4x
Video Resolution: 640×512 @ 30 fps
Video Format: MP4
Image Resolution: 640×512
Image Format: R-JPEG (16-bit raw included)
Pixel Pitch: 12 μm
Spectral Band: 8-14 μm
Sensitivity (NETD): ≤50 mK @ f/1.0
Temperature Measurement Method: Spot Meter, Area Measurement

Scene Range
-20° to 150° C (High Gain)
0° to 500° C (Low Gain)
Temperature Alert: Supported
FFC: Auto/Manual
Palette : White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot
