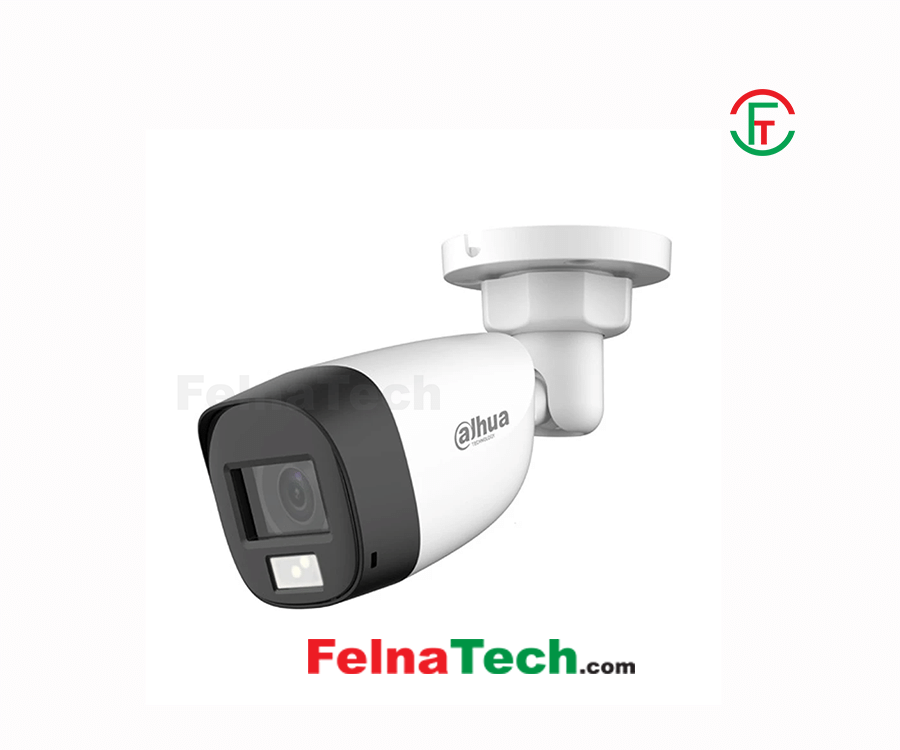

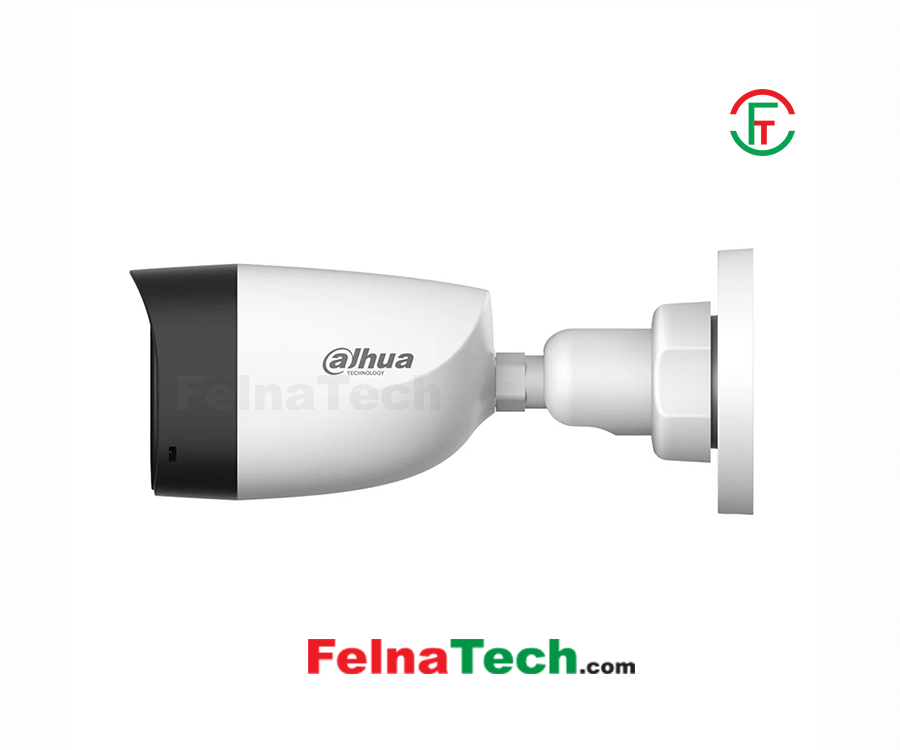

Dahua HAC-HFW1200CLP-IL-A 2MP Smart Dual Light Audio Bullet CC Camera

Brand: Security / Dahua

Title: Dahua HAC-HFW1200CLP-IL-A 2MP Smart Dual Light Audio Bullet CC Camera

Model: DH-HAC-HFW1200CLP-IL-A

Code: 16131145

Category: Security / CCTV HD Camera / Dahua

Product Type: CCTV Camera

Price: 1800

Warranty: 1

Availability: Out of Stock

Description:

General

Casing

Plastic

Dimensions

163.4 mm × 69.7 mm × 70 mm (6.43" × 2.74" × 2.76")

Weight

0.18 kg (0.40 lb)

Pan/Tilt/Rotation

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Operating Conditions

Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Humidity: <95% (RH), non-condensing

Storage Conditions

Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Humidity: <95% (RH), non-condensing

Power Supply

12 VDC ± 30%

Power Consumption

Max 2.6W (12 VDC, IR on)

Camera

Image Sensor

2 MP CMOS

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Minimum Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

IR Distance

IR: 20 m (65.62 ft)
Warm light: 20 m (65.62 ft)

IR On/Off Control

Auto

IR LEDs

2 (Warm light);2 (IR light)

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm;3.6 mm

Max Aperture

F2.0

Angle of View

2.8 mm: H: 102°; V: 60°; D: 129°
3.6 mm: H: 83°; V: 48°; D: 105°

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)

Video

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Day/Night

Auto(ICR)/Color/B/W

BLC Mode

BLC; HLC; DWDR

Gain Control

Auto

Noise Reduction

3D NR

Interface

Audio Interface

1 channel

Video Interface

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Warranty

Warranty

1 year
