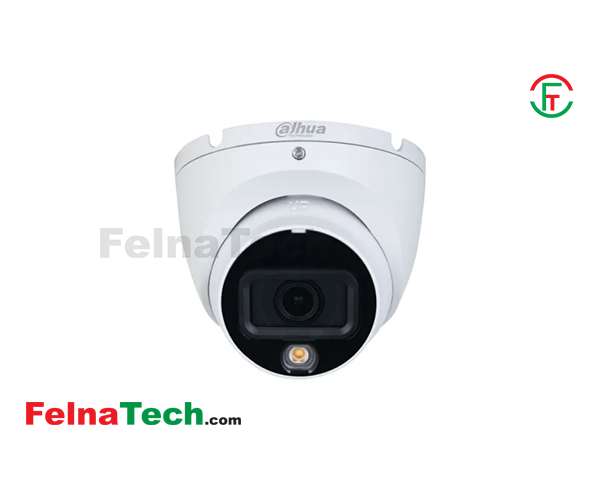

Dahua HAC-HDW1500TLMP-IL-A 5MP Dual Light HDCVI Eyeball Dome
Model: HAC-HDW1500TLMP-IL-A
Brand: Dahua
Code: 16131129
| General | |
|---|---|
| Casing | Metal Body |
| Dimensions | φ94.0 mm × 85.7 mm (φ3.70″ × 3.37″) |
| Weight | Net Weight: 0.31 kg (0.68 lb) Gross Weight: 0.43 kg (0.95 lb) |
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Camera | |
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 1920(H)×1080(V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
| Minimum Illumination | 0.05 lux@F1.6 (Color, 30 IRE) 0.005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 20m (66feet) |
| IR On/Off Control | Auto / Manual |
| Lens | |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | M12 |
| Focal Length | 2.8 mm;3.6 mm |
| Max Aperture | F1.6 |
| Close Focus Distance | 2.8 mm: 0.8 m (2.62 ft) 3.6 mm: 1.3 m (4.27 ft) |
| Video | |
| Resolution | (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC Mode | BLC; HLC; DWDR |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D NR |
| Warranty | |
| Warranty | 1 Year |
Brand: Dahua
Title: Dahua HAC-HDW1500TLMP-IL-A 5MP Dual Light HDCVI Eyeball Dome
Model: HAC-HDW1500TLMP-IL-A
Code: 16131129
Category: Security
Price: 3500
Sub-Sub Category: Dahua
Offer Status: 0
Description:
General
Casing
Metal Body
Dimensions
φ94.0 mm × 85.7 mm (φ3.70″ × 3.37″)
Weight
Net Weight: 0.31 kg (0.68 lb)
Gross Weight: 0.43 kg (0.95 lb)
Pan/Tilt/Rotation
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Camera
Image Sensor
1/2.7″ CMOS
Effective Pixels
1920(H)×1080(V), 2MP
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Minimum Illumination
0.05 lux@F1.6 (Color, 30 IRE)
0.005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
More than 65dB
IR Distance
Up to 20m (66feet)
IR On/Off Control
Auto / Manual
Lens
Lens Type
Fixed lens / Fixed iris
Mount Type
M12
Focal Length
2.8 mm;3.6 mm
Max Aperture
F1.6
Close Focus Distance
2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft)
Video
Resolution
(2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Frame Rate
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Day/Night
Auto(ICR)/Color/B/W
BLC Mode
BLC; HLC; DWDR
Gain Control
Auto/Manual
Noise Reduction
2D NR
Warranty
Warranty
1 Year
