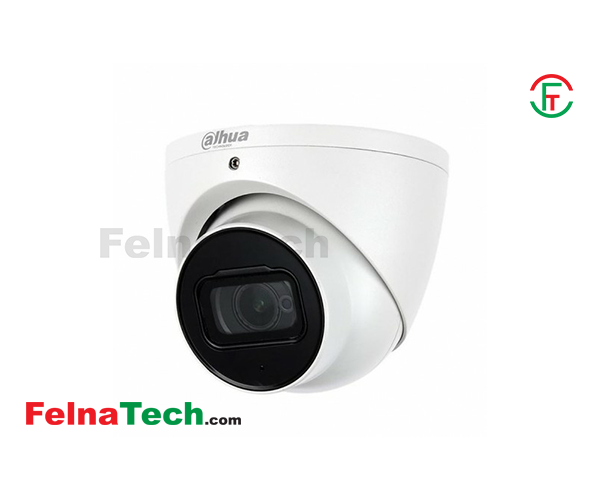

Dahua HAC-HDW1200TRQP-A 2MP Audio Dome Camera

Brand: Dahua

Title: Dahua HAC-HDW1200TRQP-A 2MP Audio Dome Camera

Model: HAC-HDW1200TRQP-A

Code: 16131127

Category: Security

Price: 2000

Sub-Sub Category: Dahua

Offer Status: 0

Description:

General

Casing

Plastic

Dimensions

Φ97.1 mm × 93.0 mm (Φ3.82″ × 3.66″)

Weight

0.17 Kg (0.37lb)

Pan/Tilt/Rotation

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Operating Conditions

-40°C to +50°C (-40°F to 122°F);<95% (non-condensation)

Storage Conditions

-40°C to +50°C (-40°F to 122°F);<95% (non-condensation)

Power Supply

12V ±30% DC

Power Consumption

Max 2.6 W (12V DC, IR on)

Camera

Image Sensor

1/2.7 inch CMOS

Effective Pixels

2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

Minimum Illumination

0.02 Lux/F1.9, 30IRE, 0 Lux IR on

S/N Ratio

>65dB

IR Distance

25 m (82.0 ft)

IR On/Off Control

Auto; manual

Lens

Lens Type

Fixed -Focal

Mount Type

M12

Focal Length

2.8mm; 3.6mm

Max Aperture

2.8 mm: F1.9
3.6 mm: F2.0

Angle of View

2.8 mm: H: 101°; V: 54° ; D: 119°
3.6 mm: H: 84°; V: 45°; D: 100°

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.8 m (2.62 ft)

Video

Resolution

1920(H)×1080(V)

Frame Rate

CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
AHD: 1080P@25/30fps; 720P@25/30fps;
TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
CVBS: 960H

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Day/Night

Auto switch by ICR

BLC Mode

BLC/HLC/DWDR

BLC Mode

BLC/HLC/DWDR

Gain Control

Auto; manual

Noise Reduction

2D NR

Interface

Audio Interface

Built-in mic (-A)

Warranty

Warranty

1 Year
