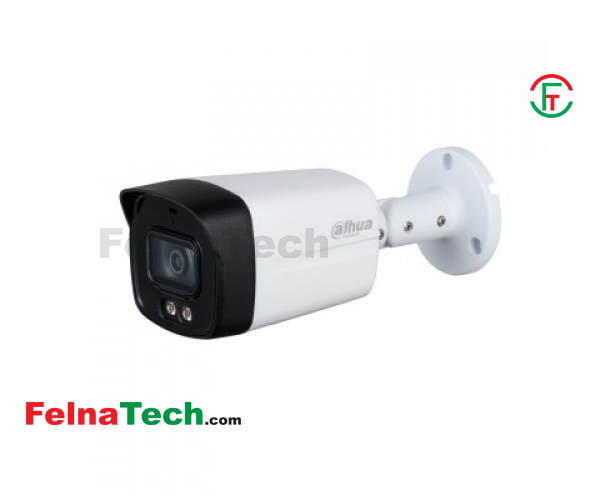

Dahua DH-HAC-HFW1509TLMP-A-LED 5MP Color HDCVI Bullet Camera

Brand: Dahua

Title: Dahua DH-HAC-HFW1509TLMP-A-LED 5MP Color HDCVI Bullet Camera

Model: DH-HAC-HFW1509TLMP-A-LED

Code: 16131121

Category: Security

Price: 4400

Sub-Sub Category: Dahua

Offer Status: 0

Description:

General

Casing

Metal front cover + plastic main body + metal bracket

Dimensions

198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.16" × 3.00")

Weight

Net Weight: 0.29 Kg (0.64 lb)

Gross Weight: 0.44 Kg (0.97 lb)

Pan/Tilt/Rotation

Pan: 0°–360°
Tilt: 0°–180°
Rotation: 0°–360°

Operating Conditions

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Storage Conditions

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Power Supply

12V ±30% DC

Power Consumption

Max 5.0W (12V DC, white light on)

Camera

Image Sensor

1/2.7 inch CMOS

Effective Pixels

2592 (H) × 1944 (V), 5Mp

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

Minimum Illumination

0.005Lux/F1.2, 0Lux White Light on

S/N Ratio

>65dB


Lens

Lens Type

Fixed-focalFixed-focal

Mount Type

M12

Focal Length

3.6 mm

Max Aperture

F1.2

Angle of View

3.6 mm: 111° × 83° × 56°

(diagonal × horizontal × vertical)

Close Focus Distance

3.6 mm: 2.1 m (6.89 ft)

Video

Resolution

5M (2592 × 1944); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (704 × 576/704 × 480);

Frame Rate

NTSC: 5M@20fps, 4M@30fps
TVI: PAL: 5M@20fps, 4M@25fps;
NTSC: 5M@20fps, 4M@30fps
CVBS: PAL: 960H;
NTSC: 960H

Video Output

CVI/TVI/AHD/CVBS by one BNC port

BLC Mode

BLC/HLC/WDR

Gain Control

Auto; manual

Noise Reduction

2D NR

Interface

Audio Interface

Built-in mic (-A)

Video Interface

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Warranty

Warranty

01-year warranty
