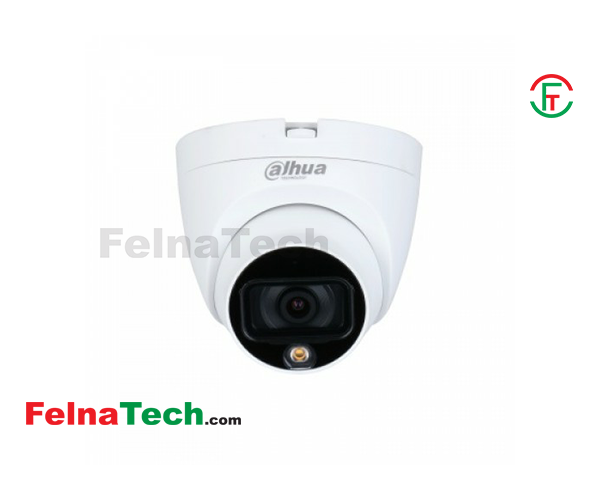

Dahua DH-HAC-HDW1509TLQP-A-LED 5MP Color HDCVI Camera

Brand: Dahua

Title: Dahua DH-HAC-HDW1509TLQP-A-LED 5MP Color HDCVI Camera

Model: DH-HAC-HDW1509TLQP-A-LED

Code: 16131103

Category: Security

Price: 4800

Sub-Sub Category: Dahua

Offer Status: 0

Description:

General

Casing

Metal inner core + plastic cover + plastic pedestal

Dimensions

φ97.1 mm × 91.4 mm (φ3.82" × 3.6")

Weight

Net Weight: 0.24 Kg (0.53 lb)

Gross Weight: 0.37 Kg (0.82 lb)

Pan/Tilt/Rotation

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Operating Conditions

–40 °C to +55 °C (–40 °F to +131 °F); < 95% (non-condensation)

Storage Conditions

–40 °C to +55 °C (–40 °F to +131 °F); < 95% (non-condensation)

Power Supply

12 V ±30% DC

Power Consumption

Max 4.4 W (12 V DC, warm light on)

Camera

Image Sensor

5MP CMOS

Effective Pixels

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL:1/3 s–1/100,000 s
NTSC:1/4 s–1/100,000 s

Minimum Illumination

0.001 Lux/F1.0, 0 Lux warm light on

S/N Ratio

> 65 dB

IR Distance

Fixed iris

Lens

Lens Type

Fixed lens

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max Aperture

F1.0

Angle of View

2.8 mm: H: 112°; V: 57°; D: 132°
3.6 mm: H: 88; V: 46°; D: 104°

Focus Control

Auto; manual

Close Focus Distance

2.8 mm: 1.6 m (5.25 ft);
3.6 mm: 2.3 m (7.5 ft)

Video

Resolution

2880 (H) × 1620 (V)

Frame Rate

PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

BLC Mode

BLC/HLC/WDR/HLC-Pro

Gain Control

Auto; manual

Noise Reduction

3D NR

Interface

Audio Interface

One channel built-in mic (-A)

Video Interface

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Warranty

Warranty

01-year warranty
