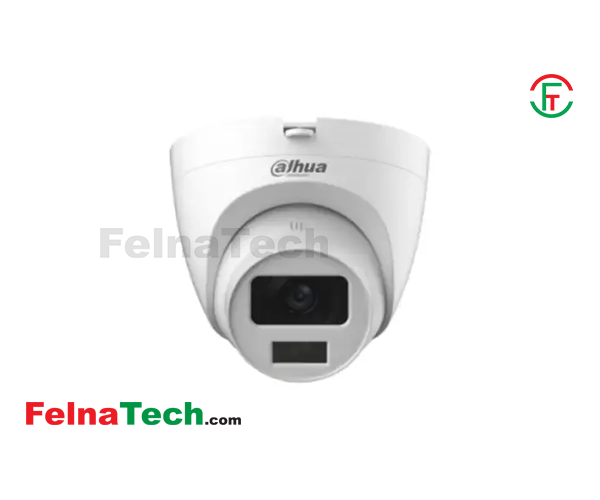

Dahua DH-HAC-HDW1500CLQP-IL-A 5MP Dual Light HD Dome Camera
Model: DH-HAC-HDW1500CLQP-IL-A
Brand: Dahua
Code: 16131102
| General | |
|---|---|
| Casing | Plastic |
| Dimensions | φ97.1 mm × 93.8 mm (φ3.82″ × 3.69″) |
| Weight | Net Weight 0.19 kg (0.42 lb) Gross Weight 0.3 kg (0.66 lb) |
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Operating Conditions | Operating Temperature –40 °C to +55 °C (–40 °F to +131 °F) Operating Humidity <95% (RH), non-condensing |
| Storage Conditions | Storage Temperature –40 °C to +55 °C (–40 °F to +131 °F) Storage Humidity <95% (RH), non-condensing |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Max 4.5 W (12 VDC, WLED on) |
| Camera | |
| Image Sensor | 5 MP CMOS |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
| Minimum Illumination | 0.05 lux@F1.6 (Color, 30 IRE) 0.005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| IR Distance | 20 m (65.62 ft) Warm Light: 20 m (65.62 ft) |
| IR On/Off Control | Auto/Manual |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max Aperture | F1.6 |
| Angle of View | 2.8 mm: H: 106°; V: 56°; D: 125° 3.6 mm: H: 92°; V: 48°; D: 109° |
| Focus Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.8 m (2.62 ft) 3.6 mm: 1.3 m (4.27 ft) |
| Video | |
| Resolution | 2880 (H) × 1620 (V) |
| Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Day/Night | Auto(ICR)/Color/B/W |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D NR |
| Warranty | |
| Warranty | 1 Year |
Brand: Dahua
Title: Dahua DH-HAC-HDW1500CLQP-IL-A 5MP Dual Light HD Dome Camera
Model: DH-HAC-HDW1500CLQP-IL-A
Code: 16131102
Category: Security / CCTV HD Camera / Dahua
Product Type: CCTV Camera
Price: 2690
Warranty: 1
Availability: Available/In Stock
Description:
General
Casing
Plastic
Dimensions
φ97.1 mm × 93.8 mm (φ3.82″ × 3.69″)
Weight
Net Weight 0.19 kg (0.42 lb)
Gross Weight 0.3 kg (0.66 lb)
Pan/Tilt/Rotation
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Operating Conditions
Operating Temperature –40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity <95% (RH), non-condensing
Storage Conditions
Storage Temperature –40 °C to +55 °C (–40 °F to +131 °F)
Storage Humidity <95% (RH), non-condensing
Power Supply
12 VDC ± 30%
Power Consumption
Max 4.5 W (12 VDC, WLED on)
Camera
Image Sensor
5 MP CMOS
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Minimum Illumination
0.05 lux@F1.6 (Color, 30 IRE)
0.005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
>65 dB
IR Distance
20 m (65.62 ft)
Warm Light: 20 m (65.62 ft)
IR On/Off Control
Auto/Manual
Lens
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
2.8 mm; 3.6 mm
Max Aperture
F1.6
Angle of View
2.8 mm: H: 106°; V: 56°; D: 125°
3.6 mm: H: 92°; V: 48°; D: 109°
Focus Control
Fixed
Close Focus Distance
2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft)
Video
Resolution
2880 (H) × 1620 (V)
Frame Rate
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Day/Night
Auto(ICR)/Color/B/W
Gain Control
Auto/Manual
Noise Reduction
2D NR
Warranty
Warranty
1 Year
