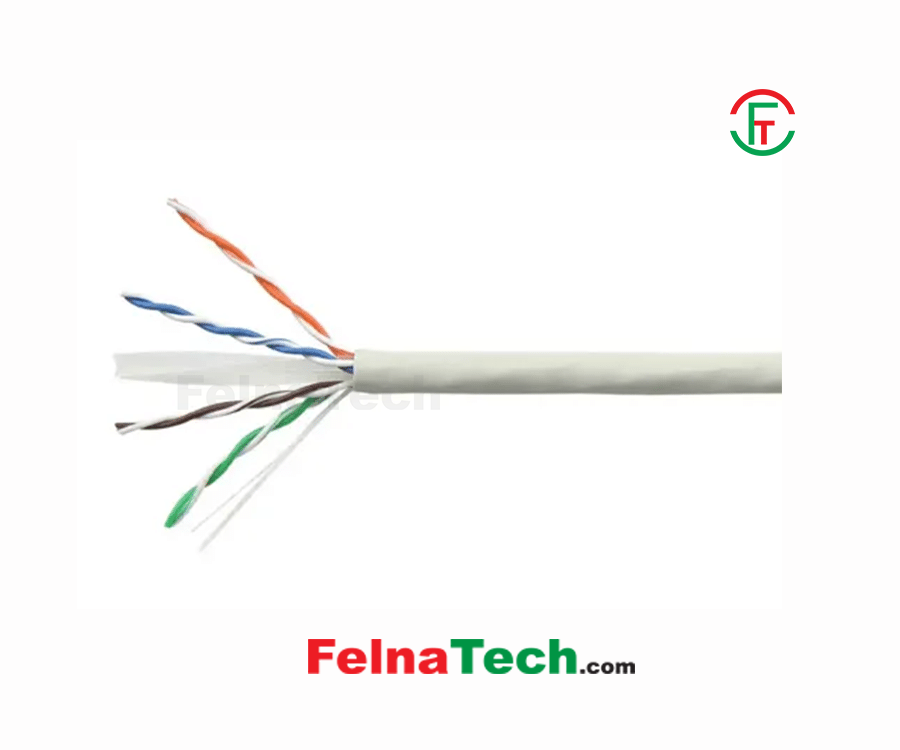

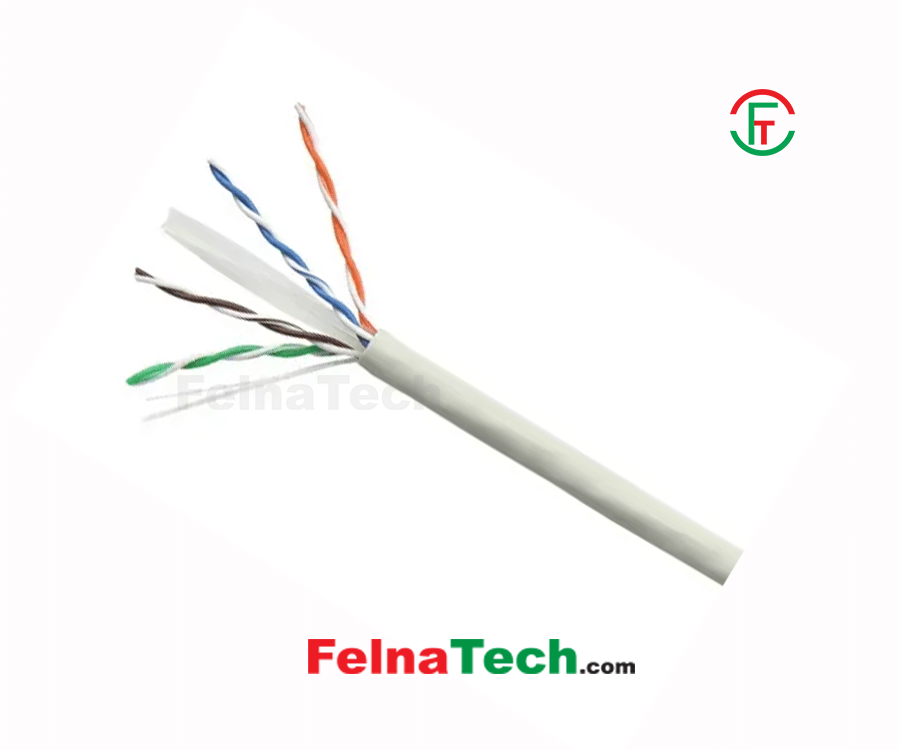

CommScope 884036914-10 305 Meter Cat-6 UTP Cable
Model: COMMSCOPE-884036914-10
Brand: CommScope
Code: 2112541805
CommScope 884036914-10 305 Meter Cat-6 UTP Cable
The CommScope 884036914-10 Cat-6 UTP Cable complies with ISO/IEC 11801 Class E, CENELEC EN 50288-6-1, and ANSI/TIA-568.2-D standards and is intended for high-performance horizontal networking applications. With an isolator separator, four twisted pairs of eight solid bare copper conductors, each measuring 23 AWG, are arranged in this unshielded (U/UTP) cable to reduce crosstalk and guarantee excellent data transmission. It is perfect for large installations because it is 304.8 meters (1000 feet) long. The polyolefin insulation on the CommScope 884036914/10 Cat-6 UTP Cable conductors has a nominal jacket diameter of 5.842 mm (0.23 inches) and a thickness of 0.559 mm (0.022 inches). The Low Smoke Zero Halogen (LSZH) material used to make the white jacket improves safety by lowering hazardous emissions during a fire. Reliability is ensured by extensive testing using swept frequency measurements on the CommScope 884036914/10 Cat-6 UTP Cable, which supports frequencies up to 600 MHz. A maximum DC resistance of 7.61 ohms per 100 meters (2.32 ohms per 100 feet) and a DC resistance imbalance of 5% characterize the CommScope 884036914/10 Cat-6 UTP Cable. Its typical impedance is 100 ohms. With a mutual capacitance of 5.6 nF per 100 meters at 1 kHz, the cable has a minimum dielectric strength of 1500 Vac or 2500 Vdc. 68% is the Nominal Velocity of Propagation (NVP), and 45 ns is the maximum delay skew. It can run at up to 400 MHz in frequency and up to 80 V in operational voltage. It guarantees safe power delivery across LAN cables when installed under ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2, or TIA TSB-184-A guidelines. It is fully compliant with IEEE 802.3bt (Type 4) regulations. Furthermore, its 300 V safety voltage rating qualifies it for use in contemporary Power over Ethernet (PoE) systems. For dependable and effective networking infrastructure, the CommScope 884036914/10 Cat-6 UTP Cable is a great option because of its sturdy design and adherence to strict standards.
Brand: UTP Cable / CommScope
Title: CommScope 884036914-10 305 Meter Cat-6 UTP Cable
Model: COMMSCOPE-884036914-10
Code: 2112541805
Category: Networking / Networking Cable / UTP (CAT6)
Product Type: UTP Cable
Price: 15800
Warranty: 0
Availability: Available/In Stock
Description:
CommScope 884036914-10 305 Meter Cat-6 UTP Cable
The CommScope 884036914-10 Cat-6 UTP Cable complies with ISO/IEC 11801 Class E, CENELEC EN 50288-6-1, and ANSI/TIA-568.2-D standards and is intended for high-performance horizontal networking applications. With an isolator separator, four twisted pairs of eight solid bare copper conductors, each measuring 23 AWG, are arranged in this unshielded (U/UTP) cable to reduce crosstalk and guarantee excellent data transmission. It is perfect for large installations because it is 304.8 meters (1000 feet) long. The polyolefin insulation on the CommScope 884036914/10 Cat-6 UTP Cable conductors has a nominal jacket diameter of 5.842 mm (0.23 inches) and a thickness of 0.559 mm (0.022 inches). The Low Smoke Zero Halogen (LSZH) material used to make the white jacket improves safety by lowering hazardous emissions during a fire. Reliability is ensured by extensive testing using swept frequency measurements on the CommScope 884036914/10 Cat-6 UTP Cable, which supports frequencies up to 600 MHz. A maximum DC resistance of 7.61 ohms per 100 meters (2.32 ohms per 100 feet) and a DC resistance imbalance of 5% characterize the CommScope 884036914/10 Cat-6 UTP Cable. Its typical impedance is 100 ohms. With a mutual capacitance of 5.6 nF per 100 meters at 1 kHz, the cable has a minimum dielectric strength of 1500 Vac or 2500 Vdc. 68% is the Nominal Velocity of Propagation (NVP), and 45 ns is the maximum delay skew. It can run at up to 400 MHz in frequency and up to 80 V in operational voltage. It guarantees safe power delivery across LAN cables when installed under ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2, or TIA TSB-184-A guidelines. It is fully compliant with IEEE 802.3bt (Type 4) regulations. Furthermore, its 300 V safety voltage rating qualifies it for use in contemporary Power over Ethernet (PoE) systems. For dependable and effective networking infrastructure, the CommScope 884036914/10 Cat-6 UTP Cable is a great option because of its sturdy design and adherence to strict standards.
