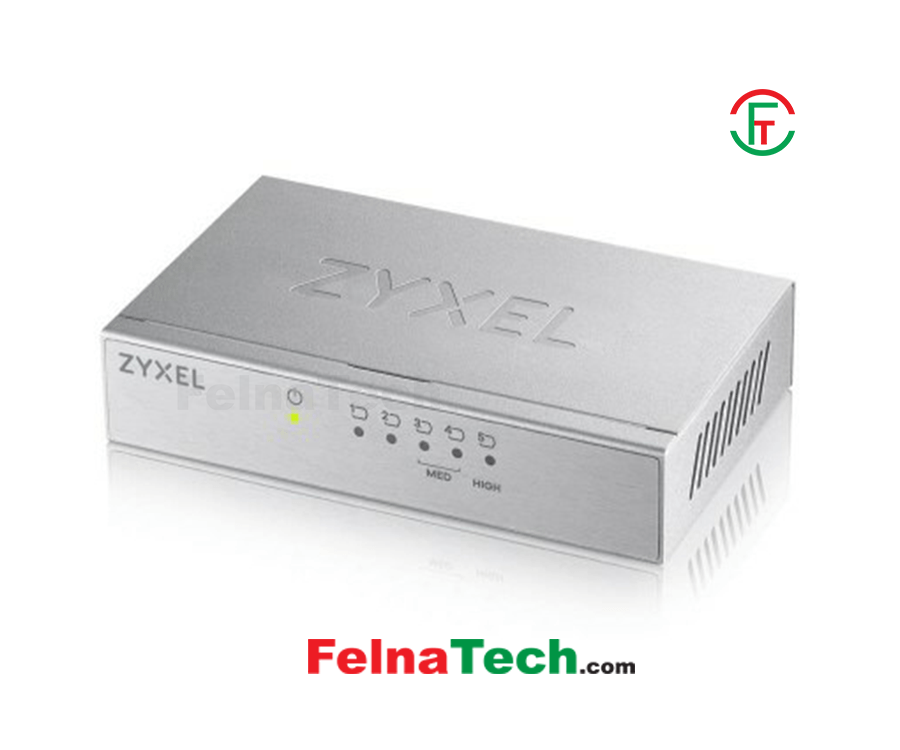

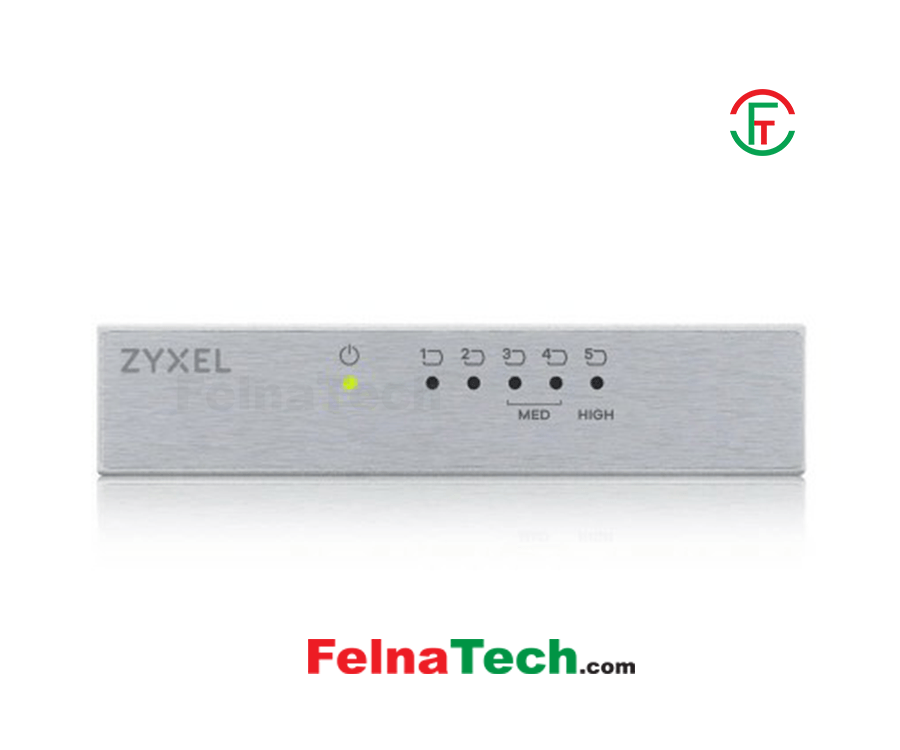

Zyxel GS-105B v3 5-Port Desktop Gigabit Ethernet Switch

Brand: Switch / Zyxel

Title: Zyxel GS-105B v3 5-Port Desktop Gigabit Ethernet Switch

Model: GS-105B-V3

Code: 216333702

Category: Networking / Switch / Zyxel

Product Type: Switch

Price: 2000

Warranty: 1

Availability: Available/In Stock

Description:

Main Feature

Type

Desktop Gigabit Ethernet Switch

Port

5x10/100/1000 Gigabit Ethernet RJ45 Ports

Network Standard

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3 Nway auto-negotiation
IEEE 802.3x full-duplex operation and flow control
IEEE 802.3az Energy Efficient Ethernet

Data Transmission Rate

Data transfer rate (half-duplex/full-duplex):
Ethernet: 10/20 Mbps
Fast Ethernet: 100/200 Mbps
Gigabit Ethernet: 1000/2000 Mbps
Memory buffer: 128 KB
Switching fabric (non-blocking): 10 Gbps

MAC Address Table

2 K

Environment

Operating Environment
Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (Non-condensing)
Storage Environment
Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 10% to 95% (Non-condensing)

Hardware Features

Interface

Five RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support

LED

LED Indicator
PWR: Power
Per-port: Link/Activity
Amber: 10/100 Mbps
Green: 1000 Mbps

Power Supply

Input: 100-240 V AC
Output: 5 V DC, 1 A
Power consumption: 2.5 watt max.

Dimensions (L x W x H)

(WxDxH): 121 x 75 x 26 mm (4.8" x 3.0" x 1.0")

Weight

229 g (0.50 lb.)

Manufacture Warranty

Warranty

01-Year
