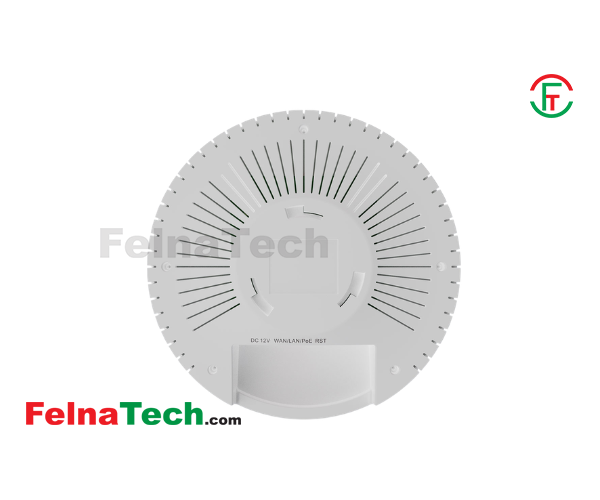

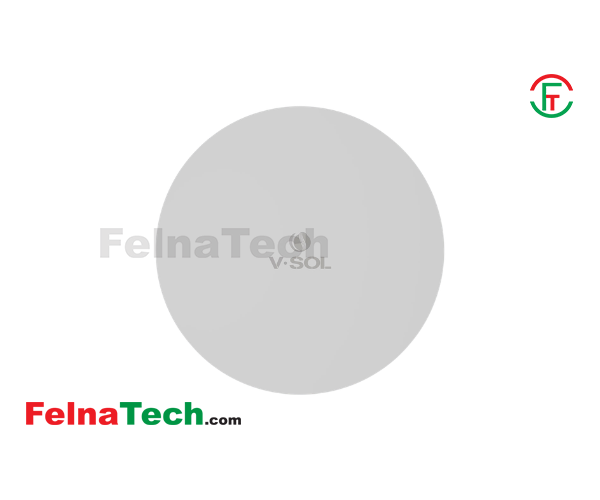

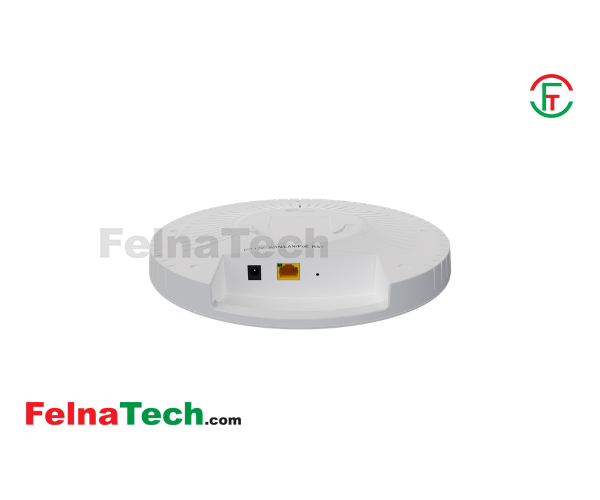

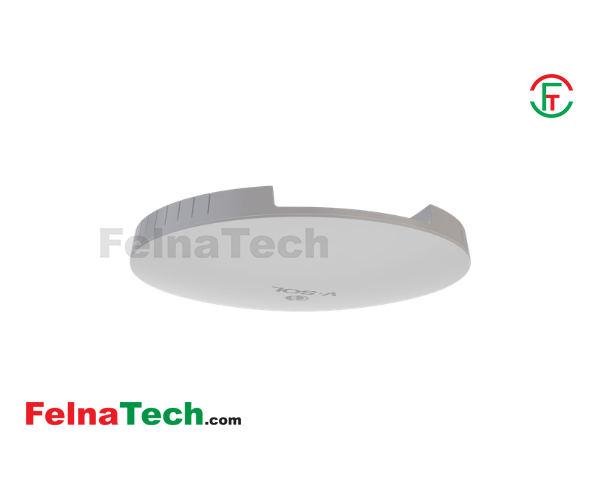

VSOL HG5063C-AX30-1Q 2.5GbE PoE PD Wi-Fi 6 Router

Brand: VSOL

Title: VSOL HG5063C-AX30-1Q 2.5GbE PoE PD Wi-Fi 6 Router

Model: HG5063C-AX30-1Q

Code: 216246510

Category: Networking / Router / VSOL

Product Type: Networking

Price: 10000

Warranty: 1

Availability: Available/In Stock

Description:

VSOL HG5063C-AX30-1Q 2.5GbE PoE PD Wi-Fi 6 Router

Technical Specifications:

Model: HG5063C-AX30-1Q
Form Factor: Ceiling Mount
Operation Mode: FIT/FAT Mode Switching (AC Controller)
WAN/LAN Interface: 1 × 2.5GbE Ultra-Gigabit Ethernet Port (Supports PoE PD Power Input)
Wireless Speed: AX3000 Lightning-Fast Speed (2402 Mbps on 5 GHz Band & 574 Mbps on 2.4 GHz Band)
Wi-Fi Standard: Wi-Fi 6 (802.11ax) | Compliant with 802.11a/b/g/n/ac/ax
Antenna Type: High-gain Internal Antennas (2.4GHz: 2×2, 5dBi | 5GHz: 3×3, 5dBi)
Client Capacity: Ultra-high capacity, connects up to 256 devices simultaneously
Advanced Features: MU-MIMO, OFDMA, Mesh Networking, WLAN User Isolation, Hidden SSID
Multicast Support: IGMP v1/v2/v3, IGMP Proxy/Snooping, MLD v2/v3, MLD Proxy/Snooping
Security & Firewall: WPA/WPA2/WPA3 Personal Encryption, WPS 2.0, IP/URL Filtering, Anti-DoS & Anti-port scanning, Parental Control
Dual-Stack Support: Native compatibility with both IPv4 and IPv6 networking protocols
Power Options: Standard DC 12V, 1.5A Adapter OR PoE Power Supply (Power Consumption: ≤18W)
Remote Management: WEB, Telnet, SSH, and TR-069 Management

Physical Specs: Premium Ceiling Mount Design | Dimensions: 240 × 240 × 48 mm

Warranty: 1-Year Official Manufacturer Warranty

Key Features & Benefits:

Next-Gen Wi-Fi 6 Performance: Operates on lightning-fast AX3000 speeds, delivering up to 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz for seamless 4K/8K streaming and online gaming.

Ultra-Gigabit 2.5GbE Port: Equipped with a 2.5 Gbps auto-adaptive RJ45 Ethernet port, providing maximum throughput for ultra-high-speed broadband networks.

PoE PD (Power over Ethernet) Support: Can be powered via Ethernet cable (PoE), significantly reducing Total Cost of Ownership (TCO) and removing the need for local power outlets during roof/wall installation.

Flexible FIT/FAT AP Modes: Features one-click switching between FAT (Standalone Router/AP) mode and FIT mode (managed seamlessly by an Access Controller), making it highly scalable.

Massive 256 Device Capacity: Optimized with MU-MIMO and OFDMA technologies to handle up to 256 connected devices smoothly without lagging or network congestion.

Enterprise-Grade Security: Outfitted with advanced WPA3 encryption, a strong network firewall, Anti-DoS attack features, and local access controls to protect sensitive business or home data.

Seamless AC+AP Mesh Roaming: Supports intelligent Mesh networking and AC+AP systems, ensuring users stay smoothly connected to the strongest signal while moving around the premises.

Smart Advanced System Utilities: Built-in network diagnostics including Ping, Traceroute, Iperf speed test, and scheduled Wi-Fi automated startup/shutdown cycles.

Product Overview:

The VSOL HG5063C-AX30-1Q is an enterprise-grade, high-performance AX3000 Wi-Fi 6 Ceiling Mount Access Point/Router designed to deliver ultimate wireless experiences for modern network deployments across Bangladesh.
Built with a sleek, aesthetic ceiling-mount body, this device is perfect for smart enterprises, modern office setups, restaurants, universities, and multi-story premium residences that require ultra-fast and reliable wireless coverage.

Equipped with a next-generation 2.5GbE port with PoE PD capabilities, it blends powerful performance with convenient single-cable installation. With the ability to toggle between FIT/FAT operational modes and support up to 256 concurrent devices via MU-MIMO and OFDMA,
the HG5063C-AX30-1Q provides Internet Service Providers (ISPs) and IT Managers with an scalable, high-speed, and futuristic network solution without needing complex deployments.
