V-SOL V1004-2F-P Unmanaged PoE Switch

Brand: Switch / VSOL

Title: V-SOL V1004-2F-P Unmanaged PoE Switch

Model: V1004-2F-P

Code: 216446908

Category: Networking / Switch (PoE) / VSOL

Product Type: Switch

Price: 2100

Warranty: 1

Availability: Available/In Stock

Description:

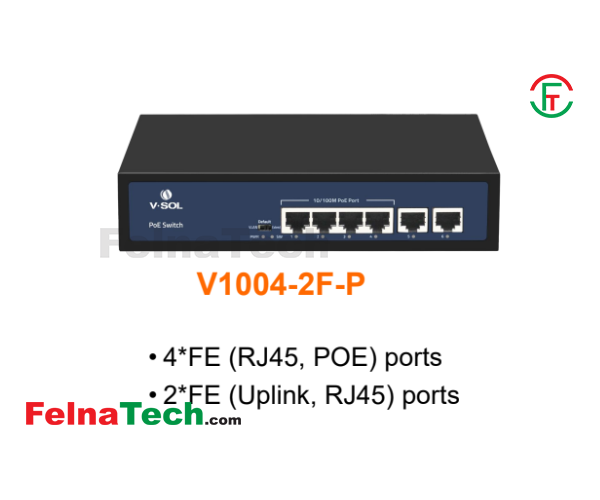

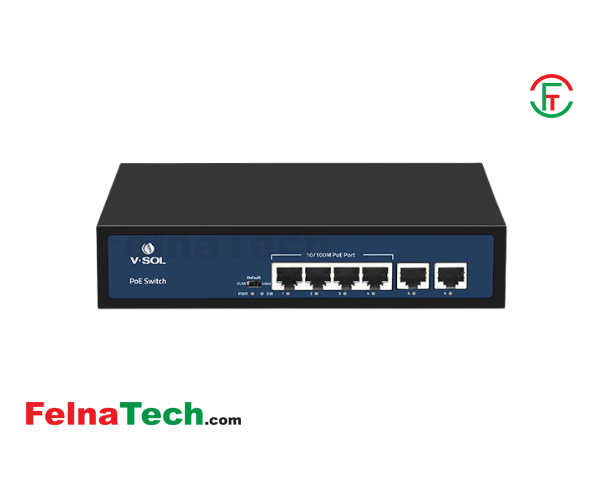

V-SOL V1004-2F-P Unmanaged PoE Switch

Technical Specifications:

Model: V1004-2F-P

Switch Type: Unmanaged PoE Switch
Downlink Ports: 4 × 10/100 Mbps RJ45 Ports (PoE/PoE+)
Uplink Ports: 2 × 100 Mbps SFP Fiber Ports
PoE Standard: IEEE 802.3af / IEEE 802.3at
PoE Power Budget: Max 60W total output (Up to 30W per PoE port)
Transmission Distance: Up to 100m (Standard Mode) / Up to 250m (Extend Mode at 10 Mbps)
Switching Capacity: 1.2 Gbps
Packet Forwarding Rate: 0.89 Mpps
MAC Address Table: 2K
LED Status Indicators: Power, Link/Act, PoE Status, Extend Mode

Physical Specs: Durable Metal Enclosure | Desktop / Wall-Mount Design | Fanless Silent Operation

Warranty: 1-Year Official Manufacturer Warranty

Key Features:

High-Power PoE+ Ports: Features 4× 10/100 Mbps Ethernet ports supporting IEEE 802.3af/at standards, delivering up to 30W per port to effortlessly power IP cameras, VoIP phones, and wireless APs.

Dual SFP Fiber Uplinks: Equipped with 2× 100 Mbps SFP slots, allowing for flexible, long-distance fiber optic connectivity to core switches or NVRs without sacrificing any downstream PoE ports.

One-Key Extend Mode (250m): Includes a physical toggle switch to extend network data and power transmission up to an impressive 250 meters, making it ideal for large-area CCTV deployments.

Plug-and-Play Simplicity: As an unmanaged switch, it requires zero configuration, software, or setup. Just plug in your devices, and it works instantly.

Smart Power Management: Automatically detects the power requirements of connected PDs (Powered Devices) to prevent electrical damage and optimize energy distribution.

Fanless Silent Design: Built with a rugged, heat-dissipating metal housing that operates completely silently, making it perfect for noise-sensitive indoor environments like offices or retail spaces.

Surge & ESD Protection: Engineered with industrial-grade lightning protection to shield your network infrastructure from sudden voltage spikes and static electricity.

The V-SOL V1004-2F-P is a highly reliable, compact, and cost-effective 4-Port Unmanaged PoE Switch engineered specifically for IP surveillance, small office networking, and smart home setups across Bangladesh. Designed to simplify both power and data
delivery over a single Ethernet cable, this switch eliminates the need for extra power outlets near your connected devices, significantly lowering deployment costs.

Equipped with 4x PoE+ downlink ports and 2x dedicated 100 Mbps SFP fiber uplink slots, the V1004-2F-P offers the perfect balance of local device powering and long-distance network aggregation. With its built-in Extend Mode, network admins
can easily push data and power transmission up to 250 meters, bypassing the standard 100m limit—making it an exceptional, budget-friendly choice for local ISPs and CCTV installers setting up IP cameras in remote corners of residential blocks, offices, or
warehouse premises.
