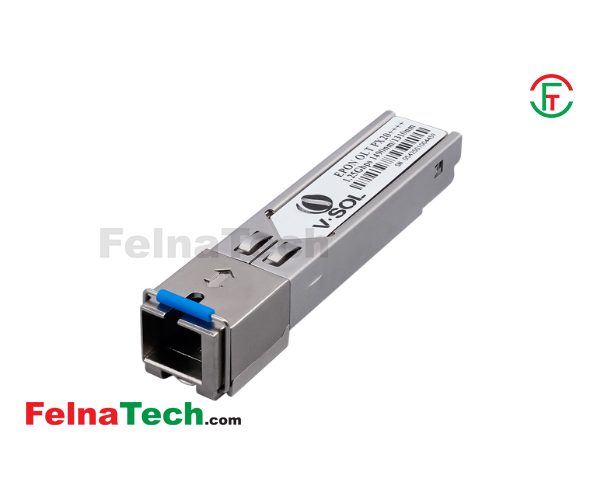

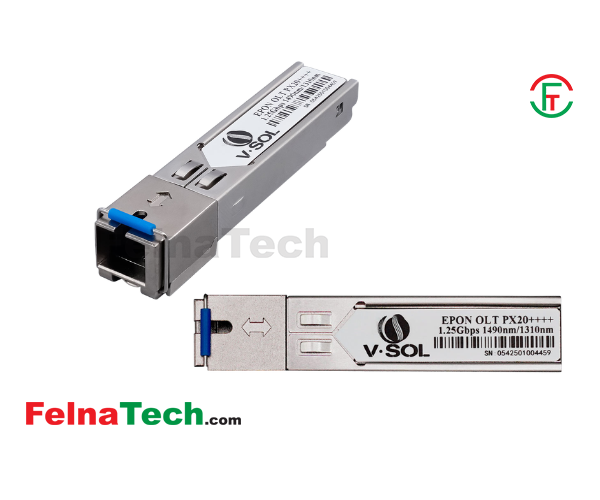

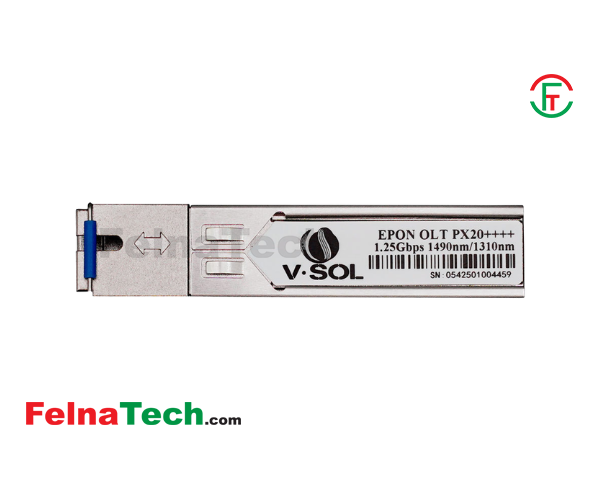

V-SOL EPON OLT PX20++++ 9db Module

Brand: OLT / VSOL

Title: V-SOL EPON OLT PX20++++ 9db Module

Model: PX20++++

Code: 2110946801

Category: Networking / ISP / Module

Product Type: Networking

Price: 2100

Warranty: 1

Availability: Available/In Stock

Description:

V-SOL EPON OLT PX20++++ 9db Module

Technical Specifications:

Model: PX20++++
Module Type: SFP (Small Form-factor Pluggable) Transceiver
Application/Network Mode: EPON OLT (Optical Line Terminal)
Data Transmission Rate: Symmetrical 1.25 Gbps Downstream & 1.25 Gbps Upstream
Optical Output Power (TX): +9 dBm (High-Power Signal Launch)
Receiver Sensitivity (RX): ≤ -32 dBm
Wavelength: TX 1490nm (Downstream) / RX 1310nm (Upstream)
Connector Type: SC/UPC (Single Fiber, Full-Duplex Operations)
Transmission Distance: Up to 20 km (Depending on splitter ratio & network setup)
Splitting Ratio Support: 1:32 / 1:64 Architecture
Digital Diagnostic Monitoring (DDM): Yes (Real-time tracking of voltage, temperature, & laser power)

Warranty: 1-Year Official Manufacturer Warranty

Key Features & Benefits:

Ultra-High 9dBm Optical Power: Powered by advanced PX20 class technology, it delivers a massive +9dBm optical output, ensuring excellent signal penetration and negligible loss over long distances.

Carrier-Grade Symmetrical 1.25G Speed: Provides continuous and stable 1.25 Gbps upstream and downstream data rates, perfect for reliable fiber-optic broadband delivery.

Extended 20KM Network Range: Engineered for robust transmission capabilities, covering up to 20 km distance to seamlessly link remote ONUs/ONTs to your main EPON OLT.

Universal Brand Compatibility: Fully optimized and compliant with standard IEEE 802.3ah protocol, making it universally compatible with major OLT brands across Bangladesh.

Smart DDM (Digital Diagnostic Monitoring): Built-in real-time DDM allows network administrators to instantly monitor temperature, supply voltage, and laser power for effortless troubleshooting.

Hot-Pluggable & Easy Integration: Features a metallic hot-swappable plug-and-play SFP design, allowing operators to install or replace modules without powering down the OLT system.

Optimized Splitting Ratio: Effortlessly handles up to 1:64 coupling distribution ratios, allowing local ISPs to maximize their user base efficiently per PON port.

Industrial Durability: Designed with Class 1 laser safety compliance and a robust casing built to withstand continuous, long-term operational environments.

Product Overview:

The VSOL EPON OLT PX20 9dB SFP Module is a high-performance, cost-effective optical transceiver engineered explicitly for demanding FTTH (Fiber to the Home) and FTTx broadband deployments across Bangladesh.
Delivering a powerful +9dBm optical output, this module effortlessly bridges long-distance communication up to 20 km between your EPON OLT and subscriber ONUs, guaranteeing exceptional signal stability even through
high-ratio optical splitters.

Equipped with an industry-standard SC/UPC interface and a symmetrical 1.25Gbps data transfer rate, it stands as an elite choice for internet service providers (ISPs). Its hot-pluggable design ensures absolute zero-downtime
maintenance, while the intelligent DDM (Digital Diagnostic Monitoring) feature provides telecom admins with real-time analytics to ensure network health. If you are scaling up your EPON core network with heavy
device density without sacrificing bandwidth or stability, the VSOL 9dB module delivers the reliable backbone your enterprise needs.
