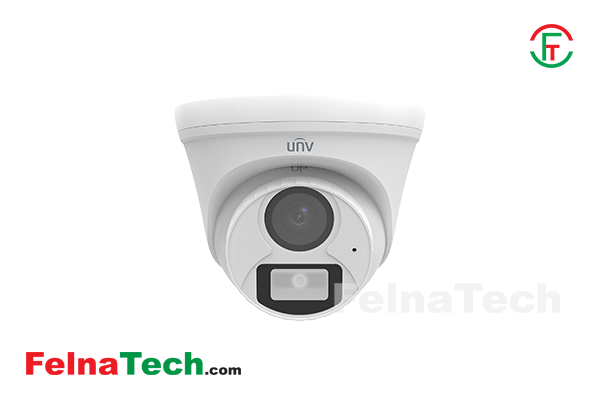

Uniview UAC-T112-AF28-W 2MP ColourHunter Fixed Dome Analog Camera

Brand: Uniview

Title: Uniview UAC-T112-AF28-W 2MP ColourHunter Fixed Dome Analog Camera

Model: UAC-T112-AF28

Code: 16145934

Category: Security / CCTV IP Camera / Uniview

Product Type: Camera

Price: 2650

Warranty: 1

Availability: Available/In Stock

Description:

Video

Frame Rate

TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps,
720P@25fps, 720P@30fps
CVBS: PAL, NTSC

Resolution

1080P: 1920(H)×1080(V)
720P: 1280(H) ×720(V)

Video Output

BNC, supports TVI/AHD/CVI/CVBS

Camera Features

AUDIO

Microphone: Built-in Mic
Camera audio:
TVI: 1080P@25fps, 1080P@30fps
CVI: 1080P@25fps, 1080P@30fps

Environment

Temperature: -30℃ to 60℃(-22℉ to 140℉)
Humidity: ≤95% (RH, non-condensing)
Surge protection: 4KV

Illuminator

Illuminator: One white-light illuminator
Illumination distance: 20m
Lifetime: ≥60,000 hours

Image Sensor

Exposure mode: Four modes: Global (default), BLC, HLC, DWDR
Day/Night: 24/7 color images
Digital noise reduction: 2D/3D
White balance: Two modes: Auto (default), Manual
WDR: DWDR
Flip: Supports 180° horizontal flip, 180° vertical flip
Defog: N/A

Minimum Illumination

0.01 lux (F1.6, AGC ON)
0 lux (white light on)

Sensor

Pixel: 2MP

Shutter Speed

PAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s

Viewing Angle

H: 100.9° V: 56.5° D: 121.8°

Lens

Lens: 2.8mm
Lens mount: M12

General

Certification

EMC:
CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part15 B)
Safety: CE-LVD (EN 62368-1)

Dimensions

Φ118mm*96mm (diameter*height)

Power

DC 12V(±25%), with reverse polarity protection, Max 2.3W

Weight

209g(0.46lb)

Material

Graphene+Plastic

Others

Mount:
Surface mount (default), optional backbox, wall mount bracket, pole mount bracket

Warranty Information

Warranty

1 Year
