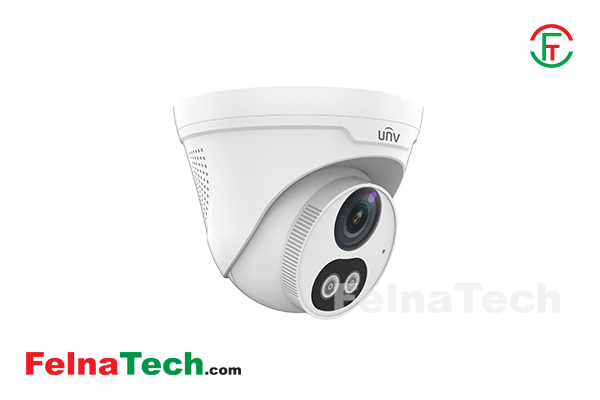

Uniview IPC3614LE-ADF28KC-WL 4MP IR Fixed Eyeball Dome IP Camera
Model: IPC3614LE-ADF28KC-WL
Brand: Uniview
Code: 16145916
| Camera Feature | |
|---|---|
| Image Sensor | 1/3", progressive scan, CMOS |
| Effective Pixels | 4.0 Megapixel |
| IR Distance | Up to 30m (98ft) |
| Others | Minimum Illumination: Color: 0.003 lux ( F1.6, AGC ON), 0Lux with light Shutter: Auto/Manual, 1 ~ 1/100000s Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° S/N: >52dB WDR: 120dB |
| Lens | |
| Focal Length | 2.8mm |
| Aperture | F1.6 |
| Angle of View | Field of View (H): 112.9° Field of View (V): 59.1° Field of View (D): 121.2° |
| Others | Cross line, intrusion(based on human body detection), Motion detection, Ultra motion detection, tampering alarm, audio detection Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication |
| Physical Specification | |
| Dimension | Φ118 x 96mm (Φ4.6” x 3.8”) |
| Weight | 0.30kg (0.66lb) |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.0W |
| Interface | 1 RJ45 10M/100M Base-TX Ethernet |
| Others | Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Surge Protection: 4KV |
| Warranty | |
| Warranty | 01-Year Warranty |
Brand: Uniview
Title: Uniview IPC3614LE-ADF28KC-WL 4MP IR Fixed Eyeball Dome IP Camera
Model: IPC3614LE-ADF28KC-WL
Code: 16145916
Category: Security
Sub Category: CCTV IP Camera
Sub-Sub Category: Uniview
Price: 8000
Offer Status: 0
Description:
Camera Feature
Image Sensor
1/3", progressive scan, CMOS
Effective Pixels
4.0 Megapixel
IR Distance
Up to 30m (98ft)
Others
Minimum Illumination: Color: 0.003 lux ( F1.6, AGC ON), 0Lux with light
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
S/N: >52dB
WDR: 120dB
Lens
Focal Length
2.8mm
Aperture
F1.6
Angle of View
Field of View (H): 112.9°
Field of View (V): 59.1°
Field of View (D): 121.2°
Others
Cross line, intrusion(based on human body detection), Motion detection, Ultra motion detection, tampering alarm, audio detection
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Physical Specification
Dimension
Φ118 x 96mm (Φ4.6” x 3.8”)
Weight
0.30kg (0.66lb)
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.0W
Interface
1 RJ45 10M/100M Base-TX Ethernet
Others
Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV
Warranty
Warranty
01-Year Warranty
