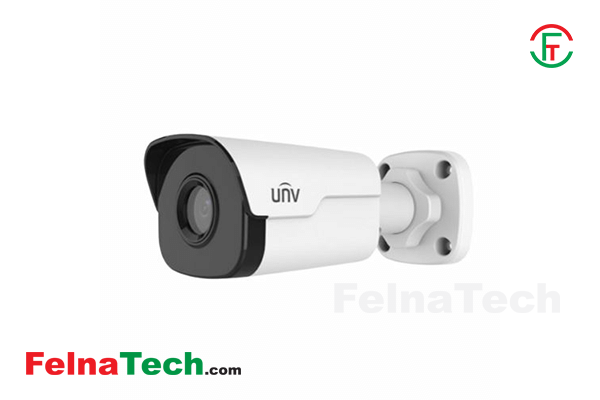

Uniview IPC2122SR3-UPF40-C 2MP Mini Bullet Network Camera

Brand: Uniview

Title: Uniview IPC2122SR3-UPF40-C 2MP Mini Bullet Network Camera

Model: IPC2122SR3-UPF40-C

Code: 16145921

Category: Security / CCTV IP Camera / Uniview

Product Type: security

Price: 5650

Warranty: 0

Availability: Available/In Stock

Description:

Uniview IPC2122SR3-UPF40-C 2MP Mini Bullet Network Camera

Camera

Sensor

1/2.8″, 2.0 megapixel, progressive scan, CMOS

Lens

2.8mm@F2.0

4.0mm@F2.0

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

43.4

17.4

8.7

4.3

4.0

62.1

24.8

12.4

6.2

Angle of View (H)

106.7°

87.5°

Angle of View (V)

57.1°

46.3°

Angle of View (O)

115.7°

92.4°

Adjustment angle

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotate: 0° ~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Color: 0.01Lux (F2.0, AGC ON)
0Lux with IR on

Digital noise reduction

2D/3D DNR

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52dB

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

DWDR

Video

Video Compression

Ultra 265, H.265, H.264

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Supported

Flip

Normal/Vertical/Horizontal/180°

Dewarping

N/A

HLC

Supported

BLC

Supported

Network

Protocols

IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, and HTTP

Compatible Integration

API

Client

EZStation
EZView
EZLive

Web Browser

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

Network

10/100M Base-TX Ethernet

Certifications

Certifications

CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: max. 5.5W

Dimensions (L × W × H)

161 × 63 ×62mm (6.4” × 2.5” × 2.4”)

Net Weight

0.27kg (0.60lb)

Material

Metal + Plastic

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

4KV

Ingress Protection

IP67

Reset Button

N/A
