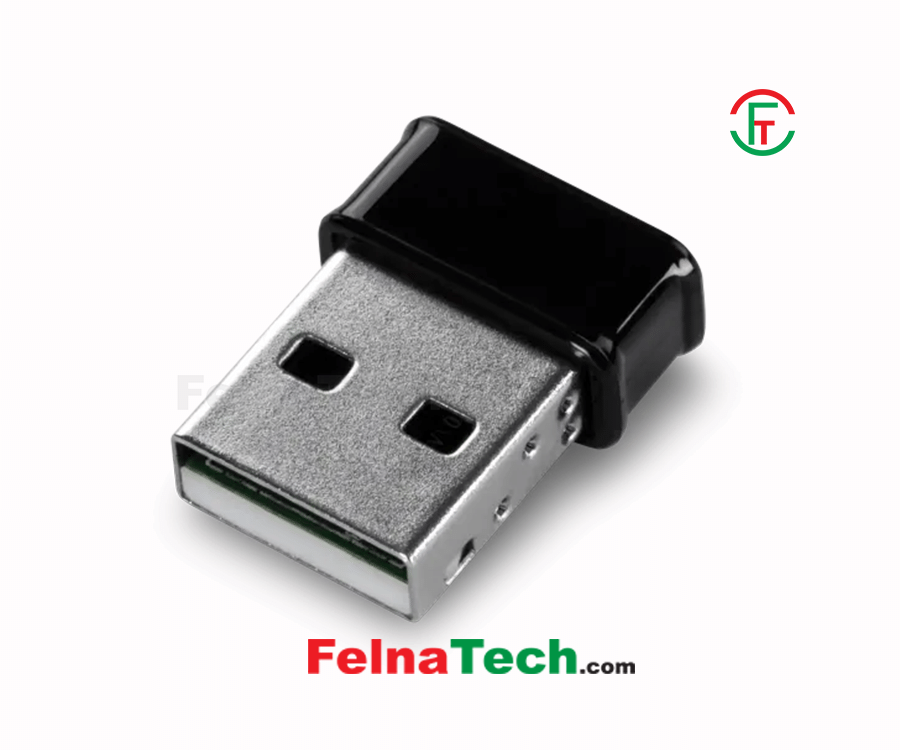

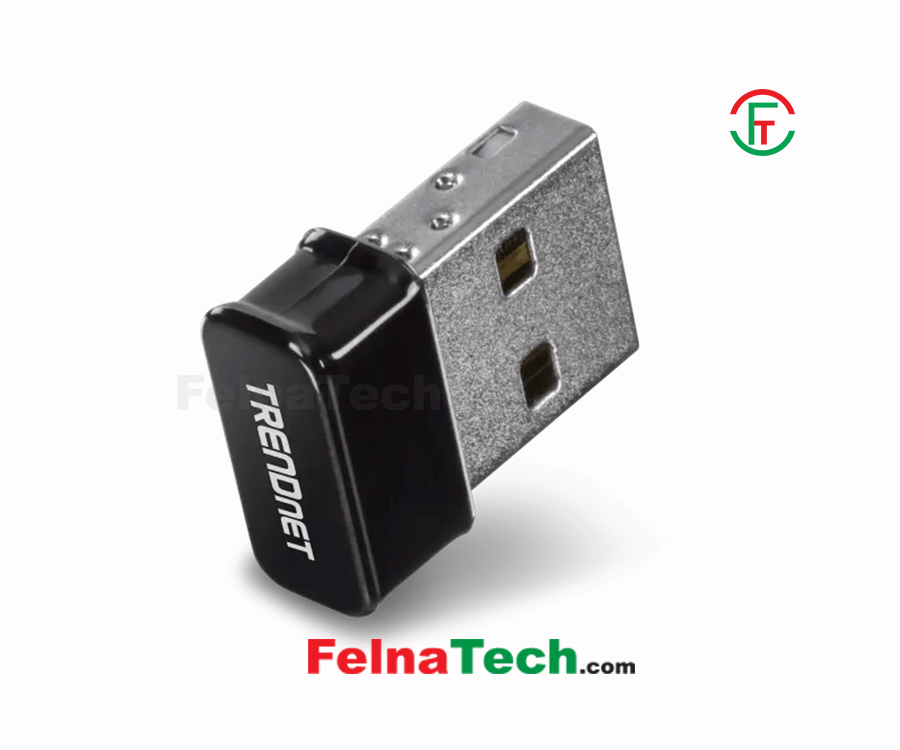

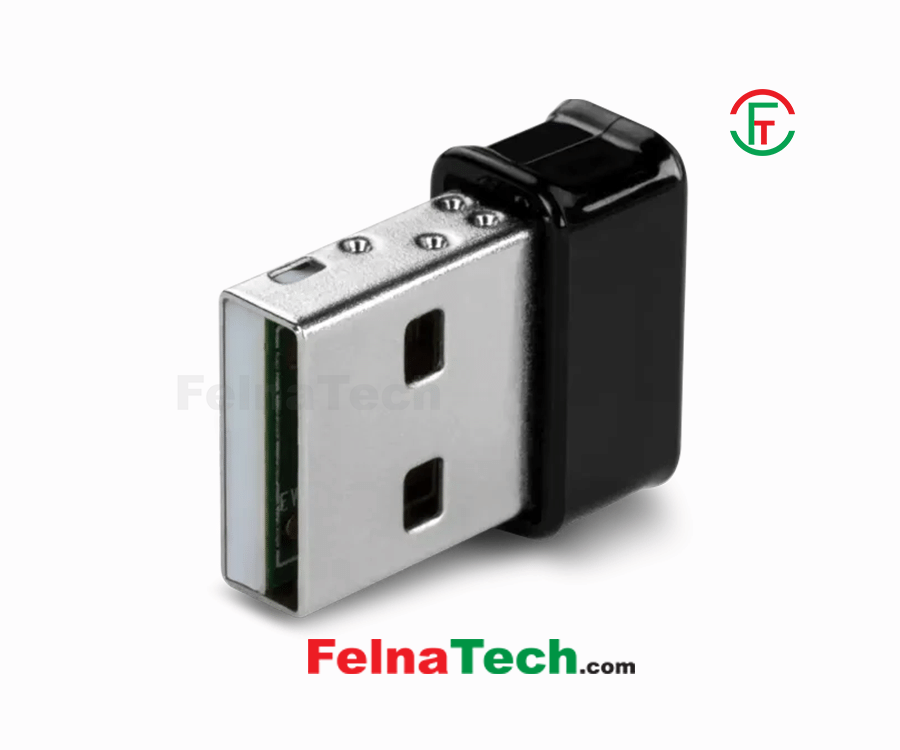

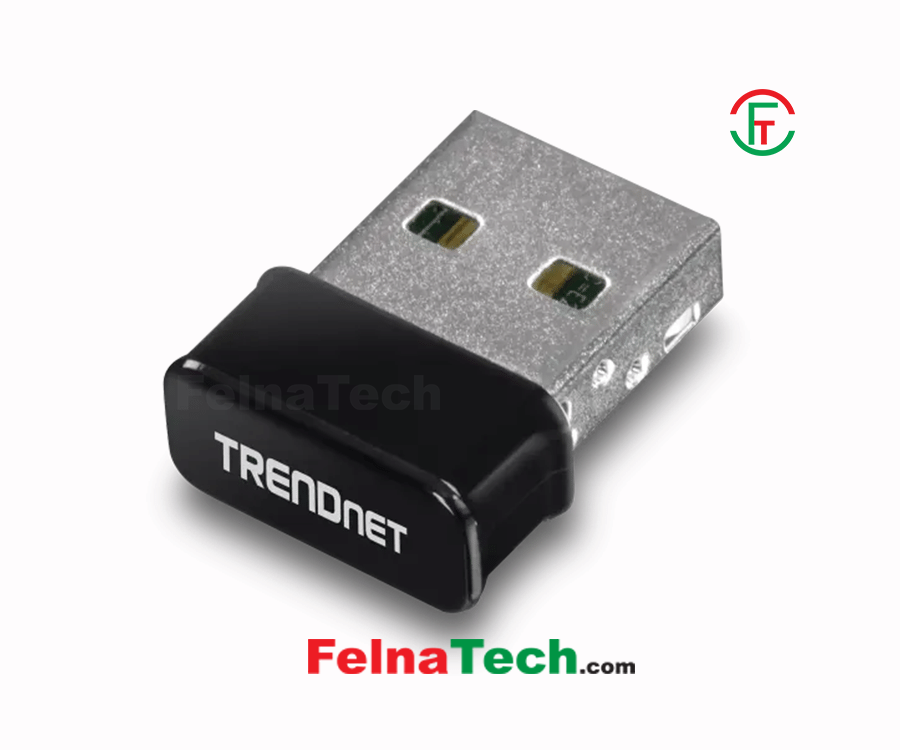

TRENDnet TEW-808UBM Micro AC1200 Dual Band USB WiFi Adapter

2,300 TK

In Stock: Yes
Model: TEW-808UBM-MICRO
Brand: TRENDnet
Code: 219341402

Category:Networking

0 people are watching this product now

For Inquiry: +880-1958-666907

Share this product on social media

Standards	IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300Mbps) IEEE 802.11ac (up to 867Mbps)
Hardware Interface	USB 2.0 LED Indicator
Special Features	High-speed 802.11ac connectivity Explicit Beamforming Supports MU-MIMO technology
Compatibility	Windows® 10, 8.1, 8, 7 Mac OS® 10.9 – 10.12
Data Rate	802.11a: up to 54Mbps 802.11b: up to 11Mbps 802.11g: up to 54Mbps 802.11n: up to 300Mbps (2.4GHz & 5GHz) 802.11ac: up to 867Mbps
Encryption	64/128-bit WEP, WPA / WPA2-Enterprise, WPA / WPA2-PSK (AES/TKIP)
Quality of Service	WMM
Frequency	2.400 – 2.483GHz 5.150 – 5.825GHz
Modulation	802.11b: CCK, DQPSK, DBPSK 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Antenna	2.4GHz / 5GHz: 2 x 1 dBi (max.) dual band internal
Output Power	802.11a: 8.5 dBm (max.) @ 54Mbps 802.11b: 9.5 dBm (max.) @ 11Mbps 802.11g: 8.5 dBm (max.) @ 54Mbps 802.11n: 7.5 dBm (max.) (2.4GHz & 5GHz) @ 300Mbps 802.11ac: 5.5 dBm (max.) @ 867Mbps
Receiving Sensitivity	802.11a: -70 dBm (typical) @ 54Mbps 802.11b: -81 dBm (typical) @ 11Mbps 802.11g: -70 dBm (typical) @ 54Mbps 802.11n (2.4GHz): -68 dBm (typical) @ 300Mbps 802.11n (5GHz): -67 dBm (typical) @ 300Mbps 802.11ac: -54 dBm (typical) @ 867Mbps
Wireless Channels	2.4GHz: FCC: 1-11; ETSI: 1-13 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)**
Power	Consumption: Max. 0.98W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	20 x 15 x 7mm (0.8 x 0.6 x 0.3 in.)
Weight	2g (0.07 oz.)
Certifications	CE FCC IC
Warranty	3 year

Brand: WiFi Adapter / TRENDnet

Title: TRENDnet TEW-808UBM Micro AC1200 Dual Band USB WiFi Adapter

Model: TEW-808UBM-MICRO

Code: 219341402

Category: Networking / WiFi Adapter / TRENDnet

Product Type: Wifi Adapter

Price: 2300

Warranty: 3

Availability: Available/In Stock

Description:

StandardsIEEE 802.11aIEEE 802.11bIEEE 802.11gIEEE 802.11n (up to 300Mbps)IEEE 802.11ac (up to 867Mbps)

Hardware InterfaceUSB 2.0LED Indicator

Special FeaturesHigh-speed 802.11ac connectivityExplicit BeamformingSupports MU-MIMO technology

CompatibilityWindows® 10, 8.1, 8, 7Mac OS® 10.9 – 10.12

Data Rate802.11a: up to 54Mbps802.11b: up to 11Mbps802.11g: up to 54Mbps802.11n: up to 300Mbps (2.4GHz & 5GHz)802.11ac: up to 867Mbps

Encryption64/128-bit WEP, WPA / WPA2-Enterprise, WPA / WPA2-PSK (AES/TKIP)

Quality of ServiceWMM

Frequency2.400 – 2.483GHz5.150 – 5.825GHz

Modulation802.11b: CCK, DQPSK, DBPSK802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM

Antenna2.4GHz / 5GHz: 2 x 1 dBi (max.) dual band internal

Output Power802.11a: 8.5 dBm (max.) @ 54Mbps802.11b: 9.5 dBm (max.) @ 11Mbps802.11g: 8.5 dBm (max.) @ 54Mbps802.11n: 7.5 dBm (max.) (2.4GHz & 5GHz) @ 300Mbps802.11ac: 5.5 dBm (max.) @ 867Mbps

Receiving Sensitivity802.11a: -70 dBm (typical) @ 54Mbps802.11b: -81 dBm (typical) @ 11Mbps802.11g: -70 dBm (typical) @ 54Mbps802.11n (2.4GHz): -68 dBm (typical) @ 300Mbps802.11n (5GHz): -67 dBm (typical) @ 300Mbps802.11ac: -54 dBm (typical) @ 867Mbps

Wireless Channels2.4GHz: FCC: 1-11; ETSI: 1-135GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)**

PowerConsumption: Max. 0.98W

Operating Temperature0° – 40° C (32° – 104° F)

Operating HumidityMax. 90% non-condensing

Dimensions20 x 15 x 7mm (0.8 x 0.6 x 0.3 in.)

Weight2g (0.07 oz.)

CertificationsCEFCCIC

Warranty3 year
