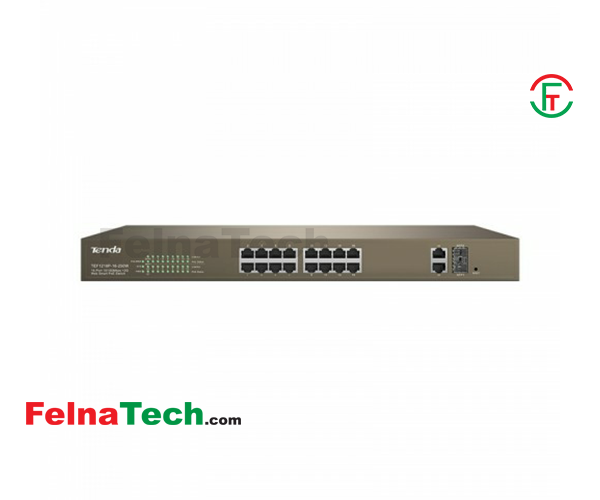

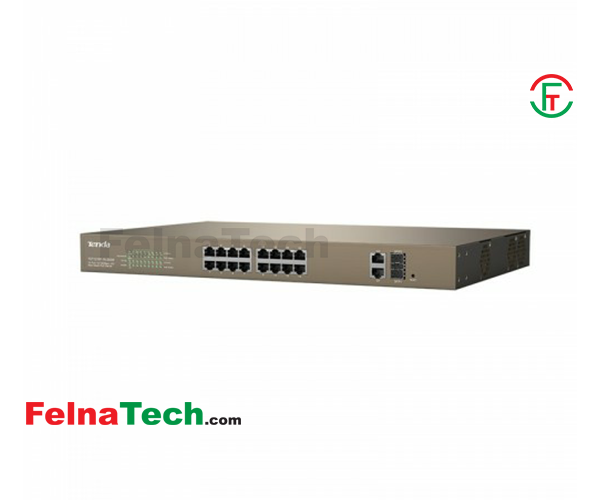

Tenda TEF1218P 16-Port 10/100Mbps Gigabit Smart PoE Switch

Brand: Tenda

Title: Tenda TEF1218P 16-Port 10/100Mbps Gigabit Smart PoE Switch

Model: TENDA-TEF1218P

Code: 21646809

Category: Networking

Price: 14500

Sub-Sub Category: Tenda

Offer Status: 0

Description:

Main Feature

Type

Switch

Port

Fixed Ports:16 10/100 Mbps Base-TX ports
2 10/100/1000 Mbps Base-T ports
2 1000 Mbps Base-X SFP ports Combo)

Network Standard

IEEE 802.3、 IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W、IEEE 802.1Q、IEEE 802.3af、IEEE 802.3at

Access Method

2 1000Base-X SFP ports Combo)

Advanced Functions

Excellent Lightning Protection
Store and forward:Yes
Exchange capacity:7.2 Gbit/s

Transmission Method

Wired

Data Transmission Rate

16 10/100 Mbps Base-TX ports
2 10/100/1000 Mbps Base-T ports

MAC Address Table

4K MAC

Environment

Humidity:
Operational:10%～95%(noncondensing)
Storage:10%～95%(noncondensing)
PoE supply management:
Support setup of PoE
Support power adjustable by priority
Support over temperature protection for PoE module

Hardware Features

Interface

Fixed Ports:16 10/100Base-TX ports
2 10/100/1000Base-T ports
2 1000Base-X SFP ports Combo)
lightning protection:≥6KV

LED

Link/Act, PoE Status,System, Power,PoE Max

Power Supply

Power supply module:Providing 16 ports under IEEE 802.3af(15.4W) or 8 ports under IEEE 802.3at(30W)
PoE through pin:1 2 4 5 +，3 6 7 8 -
Voltage input range:AC：100－240V～ 50/60Hz
Power Consumption:
<250W
PoE consumption up to 250W

Dimensions (L x W x H)

440mm x 284mm x 44mm （L×W×H）

Weight

≤5kg

Manufacture Warranty

Warranty

1 Year
