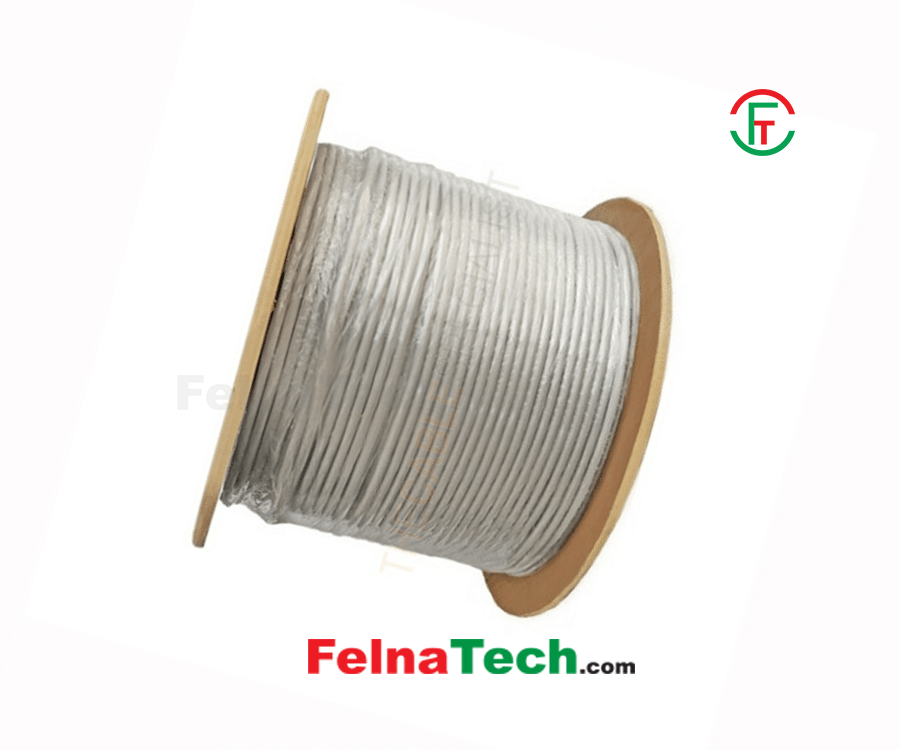

R&M R195718 CAT6A U-UTP 4P 500MHz 23AWG LSZH Gray 305m Installation Cable
Model: R&M-R195718
Brand: R&M
Code: 2112541836
| Cable Details | |
|---|---|
| Conductor | Bare solid copper wire AWG23 |
| Insulation | Polyethylene ≤ Ø 1.22 mm |
| Twisting | 2 wires to the pair |
| Cable Lay-Up | 4 paires to the core with cross separator |
| Pair Screen | Non |
| Overall Screen | Non |
| Sheath | LSZH, gray |
| Cable Information | |
| Application | Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T; 10GBase-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM IEEE 802.3af-2002: POE; IEEE 802.3at: POE+ |
| Standards | ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; EN 50288-6-1 |
| Fire Rating | LSZH IEC 60332-1; IEC 60754-2; IEC 61034 |
| Technical Detail | |
| Cable Designation | Cat6A U/UTP |
| Packaging | Box 305 m |
| Outer Diameter | Nominal 7.0 +/- 0.8 mm |
| Weight | 58 kg / km |
| Pulling Pressure | 1090 MJ / km |
| Segregation Class | B |
| Tensile Strength | 100 N |
| Bending Radius | ≥ 35 mm during operation (without load) ≥ 55 mm during installation (with load) |
| Temperature ange | During operation: -20°C…+ 60°C During installation: 0°C…+ 50°C |
Brand: UTP Cable / R&M
Title: R&M R195718 CAT6A U-UTP 4P 500MHz 23AWG LSZH Gray 305m Installation Cable
Model: R&M-R195718
Code: 2112541836
Category: Networking / Networking Cable / UTP (CAT6)
Product Type: UTP Cable
Price: 24500
Warranty: 0
Availability: Available/In Stock
Description:
Cable Details
Conductor
Bare solid copper wire AWG23
Insulation
Polyethylene ≤ Ø 1.22 mm
Twisting
2 wires to the pair
Cable Lay-Up
4 paires to the core with cross separator
Pair Screen
Non
Overall Screen
Non
Sheath
LSZH, gray
Cable Information
Application
Primary (Campus), Secondary (Riser), Tertiary (Horizontal)
IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T; 10GBase-T
IEEE 802.5 16 MB; ISDN; TPDDI; ATM
IEEE 802.3af-2002: POE; IEEE 802.3at: POE+
Standards
ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2
IEC 61156-5 2nd ed.; EN 50288-6-1
Fire Rating
LSZH
IEC 60332-1; IEC 60754-2; IEC 61034
Technical Detail
Cable Designation
Cat6A U/UTP
Packaging
Box 305 m
Outer Diameter
Nominal 7.0 +/- 0.8 mm
Weight
58 kg / km
Pulling Pressure
1090 MJ / km
Segregation Class
B
Tensile Strength
100 N
Bending Radius
≥ 35 mm during operation (without load)
≥ 55 mm during installation (with load)
Temperature ange
During operation: -20°C…+ 60°C
During installation: 0°C…+ 50°C
