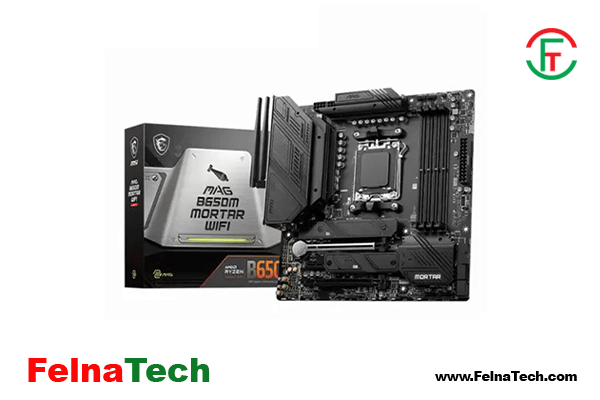

MSI MAG B650M Mortar WiFi DDR5 AMD AM5 mATX Motherboard

Brand: MSI

Title: MSI MAG B650M Mortar WiFi DDR5 AMD AM5 mATX Motherboard

Model: MAG-B650M-MORTAR-WIFI

Code: 12229707

Category: Component

Sub Category: Motherboard AMD

Sub-Sub Category: MSI

Price: 31900

Offer Status: 0

Description:

Expansion Slots

Supported CPU

Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
Socket AM5

Chipset

AMD B650

Form Factor

mATX
243.84mmx243.84mm

Audio

Realtek ALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

PCI

2x PCI-E x16 slot
Support x16/ x4
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

Memory

Type

DDR5

Slots

4 DIMMs

Supported Memory

Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Maximum Memory

128GB

Graphics

Graphics

1x HDMI
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
Support DP 1.4, maximum resolution of 8K 60Hz

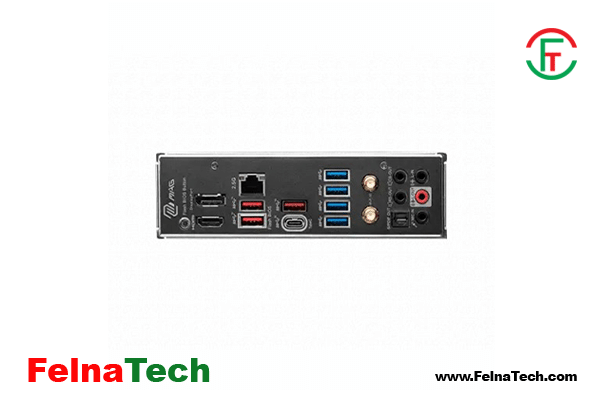

Connector & Ports

HDMI

1x HDMI

Display Port (s)

1x Display Port

USB (s)

4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

LAN Port (s)

Realtek RTL8125B 2.5Gbps LAN

Wireless Communication module

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.2

Supported Storage

2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Audio

HD Audio Connectors

Internal I/O Ports

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C

TPM (Trusted Platform Module )

1x TPM pin header(Support TPM 2.0)

Warranty Information

Manufacturing Warranty

3 Years
