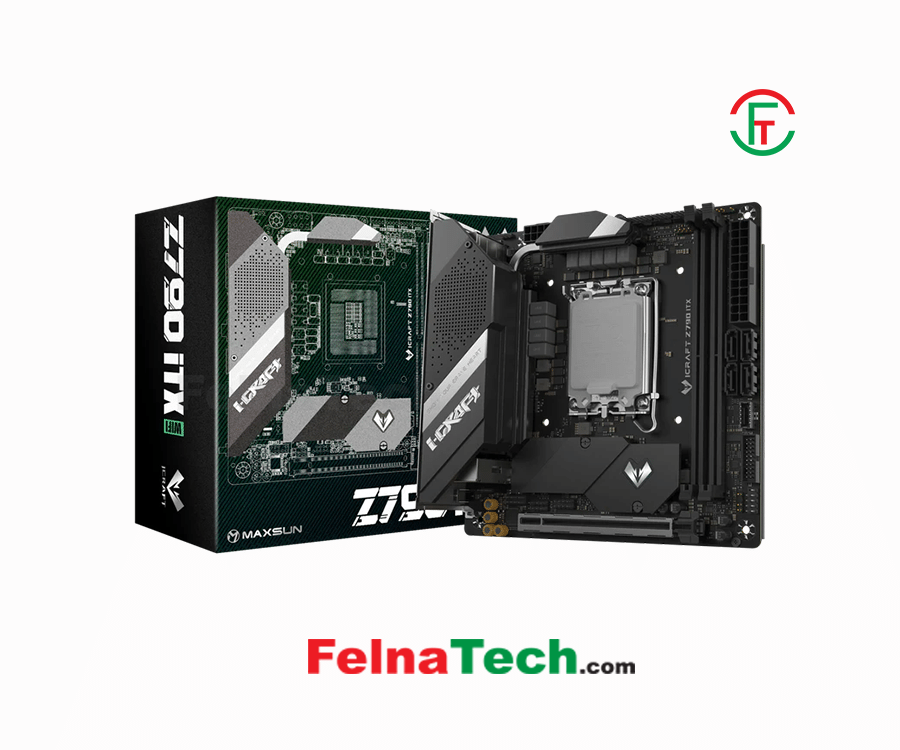

Maxsun ICraft Z790ITX WiFi 6E DDR5 Mini-ITX Gaming Motherboard

Brand: Motherboard / Maxsun

Title: Maxsun ICraft Z790ITX WiFi 6E DDR5 Mini-ITX Gaming Motherboard

Model: ICRAFT-Z790ITX

Code: 123242005

Category: Component / Motherboard Intel / Maxsun

Product Type: Motherboard

Price: 30000

Warranty: 3

Availability: Available/In Stock

Description:

Processor

Supported CPU

12th/ 13th Gen Intel Core Processors,
Pentium Gold and Celeron Processors

Mainboard

Chipset

Intel Z790

Memory

Memory Type

DDR5

Memory Slot

2

Memory

Memory MHz:
7400+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/
6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/5600(JEDEC)/
5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Memory Max. 96GB

Storage

Storage Slots

M.2/SSD Expansion Slot: 2
M.2/SSD Expansion Slot Details 2 x M.2 (M.2 slot (Key M),
type 2280 (supports PCIe 4.0 x4 mode))
Storage Interface 6.0Gb/s

Graphics

Graphics

Graphics Chipset: Integrated With Processor

Networking & Connectivity

LAN

LAN Chipset: Realtek RTL8125BG 2.5G LAN
LAN Speed (Mbps): 10/ 100/ 1000/ 2500Mbps

Wi-Fi

WiFi Technology: Intel Wi-Fi 6E AX211

Bluetooth

V 5.3

Audio & Microphone

Audio

Audio Chipset: Realtek ALC897 Codec
Audio Channel: 5.1

Ports

PCI Card Slot

1x PCIe 5.0 x16 slot

USB

4 x USB 2.0,
4x USB 3.2 Gen1 Type A,
1x USB 3.2 Gen2x2 Type C

HDMI

1

Special Features

RGB

RGB Support: ARGB
RGB Connector: 2x 5V 3-Pin ARGB, 1x 12V 4-Pin RGB

Features

9 phases power supply, 90A Dr.Mos,
RAA229131 PWM, Hybrid cooling system.

Others

Compatible

12th/ 13th Gen Intel Core i9/ i7/ i5/ i3 and Pentium/
Celeron processors in the LGA1700

Other Features

Raid Support: 0, 1, 5 10
Supports MU-MIMO TX/RX,
2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps,
Supports 802.11 a/ b/ g/ n/ ac/ ax,
High Definition Audio,
Internal I/O: 1x 24-pin Power Connector(ATX_PWR),
1x 8-pin Power Connector(CPU_PWR),
1x CPU Fan, 1x AIO_PUMP, 2x System Fan,
1x 2-pin Clear CMOS,
1x Front Audio,
1x SPDIF OUT,
4x Distributed Debug LED.

Physical Specification

Color

Black

Form Factor

ITX

Technical Info

Supported Operating System

Windows 11, 10

Model

ICraft Z790ITX

Supported Sockets

LGA1700

Warranty Information

Warranty

3 years
