Maxsun B760M Gaming Gank Wifi DDR5 Micro ATX Motherboard
Model: MAXSUN-B760M
Brand: Intel
Code: 123242001
| Processor | |
|---|---|
| Supported CPU | Support for LGA1700 slots The 12th ,13th and14t generation processors TDP: 75W |
| Mainboard | |
| Chipset | INTEL B760 High-speed chipset |
| Memory | |
| Memory | 2x DIMM DDR5 memory slots Maximum support in total is 128GB Support for dual-channel memory technology Support for 4800/5200/5600/OC + memory frequency Supports Intel XMP Technology |
| Storage | |
| Storage | 1x M.2 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only) 3x SATA 3.0 ports |
| Display | |
| Display | HDMI 1.4: 4096x2160 @30Hz (HDCP2.2) VGA: 1920x1080 @60Hz |
| Graphics | |
| Graphics | 1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x HDMI port *HDMI port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| Networking & Connectivity | |
| Networks | Integrated REALTEK 8111H card chip (10 / 100 / 1000 / 2500Mbit) 1x onboard R]45 port Support network arousal Support PXE no disk, UEFI no disk guide Support for Bluetooth 5.2 |
| Audio & Microphone | |
| Audio | Integrated REALTEK ALC 897 sound chip |
| Ports | |
| Slots | 1x PCIE X16 4.0 slot 3.0 sl Support for AMD and NVIDIA and INTEL graphics cards Support for PCIE resizable bar technology(Requires CPU and GPU to support synchronous compatibility) |
| Internal I/O Ports | 1x 24-PIN motherboard ATX power supply 1x 8-PIN motherboard ATX 12V power supply port, 12V input, 1x sets of system fan pins and 1x group of CPU fan pins 1x group of PUMP fan pinslx group chassis front control panel pin (F PANEL) One 12V NRGB pin and two 5V ARGB pins |
| USB | *On-board rear port: 2x USB 3.2 GEN 2 ports, 6x USB2.0 ports Plate insert: 1x group (2 double rows) U SB2.0 pins, 1x group (single row) USB2.0 pin, 1xgroup (2 rows) USB 3.2 GEN 1 pin, 1x TYPE C(USB 3.2 GEN 2X2) ports |
| Software | |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Physical Specification | |
| Form Factor | Micro ATX 225mm x 195mm |
| Technical Info | |
| LED Type | 4x Distributed Debug LED |
| Warranty Information | |
| Warranty | 3 Years |
Brand: Motherboard / Intel
Title: Maxsun B760M Gaming Gank Wifi DDR5 Micro ATX Motherboard
Model: MAXSUN-B760M
Code: 123242001
Category: Component / Motherboard Intel / Maxsun
Product Type: Motherboard
Price: 13500
Warranty: 3
Availability: Available/In Stock
Description:
Processor
Supported CPU
Support for LGA1700 slots
The 12th ,13th and14t generation processors
TDP: 75W
Mainboard
Chipset
INTEL B760 High-speed chipset
Memory
Memory
2x DIMM DDR5 memory slots
Maximum support in total is 128GB
Support for dual-channel memory technology
Support for 4800/5200/5600/OC + memory frequency
Supports Intel XMP Technology
Storage
Storage
1x M.2 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only)
3x SATA 3.0 ports
Display
Display
HDMI 1.4: 4096x2160 @30Hz (HDCP2.2)
VGA: 1920x1080 @60Hz
Graphics
Graphics
1x VGA
*Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
1x HDMI port
*HDMI port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Networking & Connectivity
Networks
Integrated REALTEK 8111H card chip (10 / 100 / 1000 / 2500Mbit)
1x onboard R]45 port
Support network arousal
Support PXE no disk, UEFI no disk guide
Support for Bluetooth 5.2
Audio & Microphone
Audio
Integrated REALTEK ALC 897 sound chip
Ports
Slots
1x PCIE X16 4.0 slot
3.0 sl
Support for AMD and NVIDIA and INTEL graphics cards
Support for PCIE resizable bar technology(Requires CPU and GPU to support synchronous compatibility)
Internal I/O Ports
1x 24-PIN motherboard ATX power supply
1x 8-PIN motherboard ATX 12V power supply port, 12V input,
1x sets of system fan pins and 1x group of CPU fan pins
1x group of PUMP fan pinslx group chassis front control panel pin (F PANEL)
One 12V NRGB pin and two 5V ARGB pins
USB

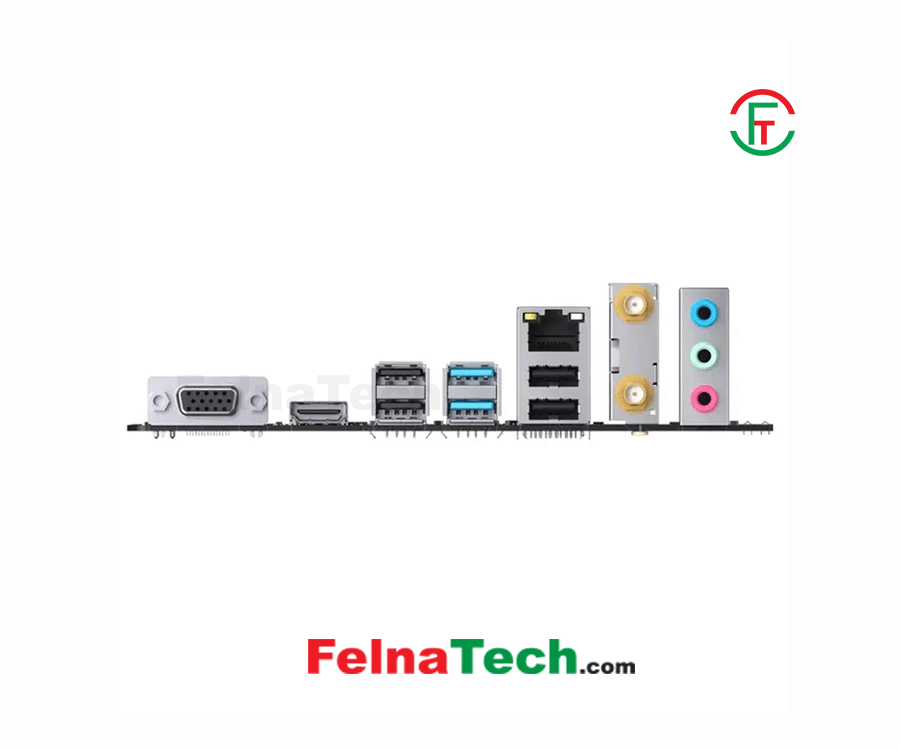

*On-board rear port: 2x USB 3.2 GEN 2 ports, 6x USB2.0 ports
Plate insert: 1x group (2 double rows) U SB2.0 pins, 1x group (single row) USB2.0 pin,
1xgroup (2 rows) USB 3.2 GEN 1 pin,
1x TYPE C(USB 3.2 GEN 2X2) ports
Software
Operating System
Support for Windows 11 64-bit, Windows 10 64-bit
Physical Specification
Form Factor
Micro ATX 225mm x 195mm
Technical Info
LED Type
4x Distributed Debug LED
Warranty Information
Warranty
3 Years
