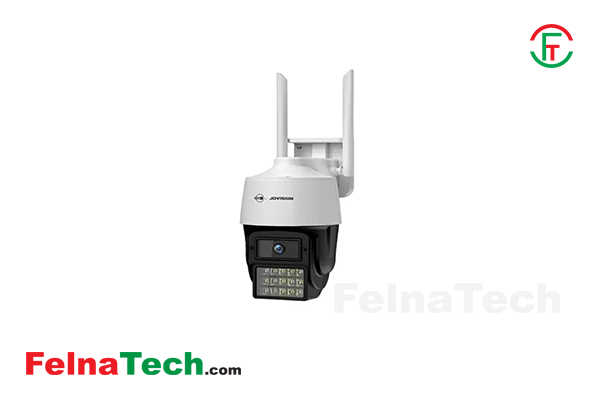

Jovision JVS-N97-X3 3MP Full-Color Wi-Fi Tilt PTZ Camera
Model: JVS-N97-X3
Brand: Jovision
Code: 161514204
| Lens | |
|---|---|
| FOV | H: 78.6°, V: 42°, D: 92.4° |
| Interface Type | M12 |
| Lens | 3.6mm |
| Lights | 9 White LEDs + 6 IR LEDs |
| Function | |
| Audio Codec | G.711U/G.711A (Default) |
| Audio Function | Built-in Mic and Speaker |
| DWDR | Support |
| Exposure Control | Auto |
| Gain Control | Auto |
| Image Style | Standard, Soft, Transparent |
| Schedule Reboot | Support |
| Screen Settings | Screen Mirroring, Screen screen flipping |
| SD Card | Support（256GB） |
| SNTP | Support |
| Motion Detection | Support Humanoid Detection |
| Privacy Mask | Support Up To 8 Masking Areas |
| White Balance | Auto |
| Image Setting | Support Saturation, Brightness, Contrast, and Sharpness Adjustment |
| Physical Specification | |
| Dimensions | 136x155x238mm |
| Working Temperature | -20°C ~ 60°C |
| Video | |
| Bit Rate | Main Stream: 128Kbps ~ 4096Kbps Sub Stream: 68Kbps~1024Kbps |
| Compression Standard | H.264/H.265(Default) |
| Effective Pixels | 3.0MP |
| Frame Rate | 25fps |
| Image Sensor | 1/2.9″ CMOS Sensor |
| Max Resolution | 2304×1296 |
| SNR (dB) | 50dB |
| Network | |
| Network Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 2x Streams |
| ONVIF | Standard ONVIF |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| Network transmission | CloudSEE 2.0 |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Color / Material | Black and white (PC+ABS) |
| Weight | 530g |
| Waterproof | IP66 |
| Power | |
| Power Consumption | <6W (During Day); <10W (At Night) |
| Power Supply | DC12V/2A |
Brand: Jovision
Title: Jovision JVS-N97-X3 3MP Full-Color Wi-Fi Tilt PTZ Camera
Model: JVS-N97-X3
Code: 161514204
Category: Security / CCTV PTZ Camera / Jovision
Product Type: Camera
Price: 6999
Warranty: 1
Availability: Available/In Stock
Description:
Lens
FOV
H: 78.6°, V: 42°, D: 92.4°
Interface Type
M12
Lens
3.6mm
Lights
9 White LEDs + 6 IR LEDs
Function
Audio Codec
G.711U/G.711A (Default)
Audio Function
Built-in Mic and Speaker
DWDR
Support
Exposure Control
Auto
Gain Control
Auto
Image Style
Standard, Soft, Transparent
Schedule Reboot
Support
Screen Settings
Screen Mirroring, Screen screen flipping
SD Card
Support（256GB）
SNTP
Support
Motion Detection
Support Humanoid Detection
Privacy Mask
Support Up To 8 Masking Areas
White Balance
Auto
Image Setting
Support Saturation, Brightness, Contrast, and Sharpness Adjustment
Physical Specification
Dimensions
136x155x238mm
Working Temperature
-20°C ~ 60°C
Video
Bit Rate
Main Stream: 128Kbps ~ 4096Kbps
Sub Stream: 68Kbps~1024Kbps
Compression Standard
H.264/H.265(Default)
Effective Pixels
3.0MP
Frame Rate
25fps
Image Sensor
1/2.9″ CMOS Sensor
Max Resolution
2304×1296
SNR (dB)
50dB
Network
Network Protocols
HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
Ethernet
10/100Mbps Ethernet
Stream
2x Streams
ONVIF
Standard ONVIF
Browser
IE8+, Chrome18+, Firefox5.0+, Safari5.02+
Network transmission
CloudSEE 2.0
User
Up to 13 Users
App
Support iOS/Android
General
Color / Material
Black and white (PC+ABS)
Weight
530g
Waterproof
IP66
Power
Power Consumption
<6W (During Day); <10W (At Night)
Power Supply
DC12V/2A
