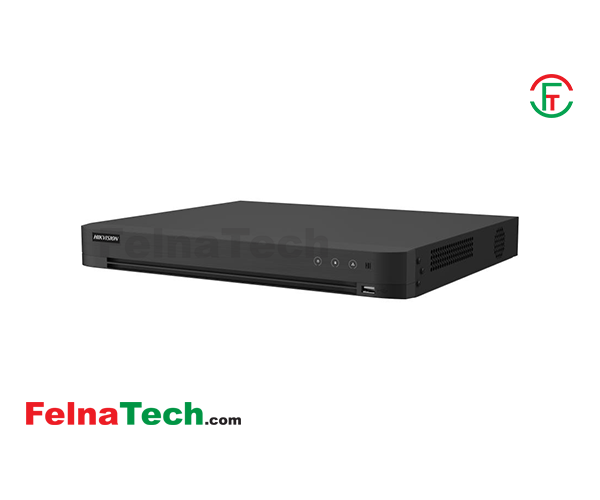

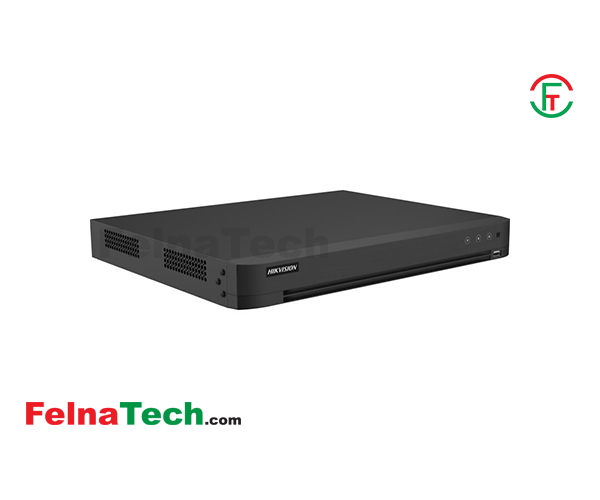

IDS-7232HQHI-M2-XT 32 Channel 1080p 1U H.265 AcuSense DVR

Brand: Hikvision

Title: IDS-7232HQHI-M2-XT 32 Channel 1080p 1U H.265 AcuSense DVR

Model: IDS-7232HQHI-M2-XT

Code: 16161606

Category: Security

Price: 34500

Sub-Sub Category: Hikvision

Offer Status: 0

Description:

Audio and Video

IP Camera Input

8-ch (up to 40-ch), each up to 6 MP resolution

Two-Way Talk

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Display

Interface

32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Resolution

HDMI Output
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
HDMI/VGA simultaneous output

Decoding Capacity

up to 24-ch 1080P@30fps

Recording

Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Resolution

1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF

Record Rate

When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Bit Rate

32 Kbps to 10 Mbps

Record Interval

Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Others

Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps

Video Detection And Alarm

Video Detection

Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights;
Quick search by object or event type is supported;
Facial Detection and Capture
Face picture detection, face picture search；
4-ch face picture capture

Alarm Input

N/A

Network

Ethernet Port

1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
RS-485 (half-duplex)

PoE

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP

Storage

Internal HDD

2 SATA interfaces
Up to 12 TB capacity for each disk

Auxiliary Interface

USB

Front panel: 1 × USB 2.0
Rear panel: 2 × USB 3.0

RS485

RS-485 (half-duplex)

Power

Power Supply

12 VDC, 5 A

Power Consumption

≤ 60 W


Construction

Dimensions

384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)

Net Weight

≤ 2.1 kg (4.6 lb)


Warranty

Manufacturing Warranty

1-Year
