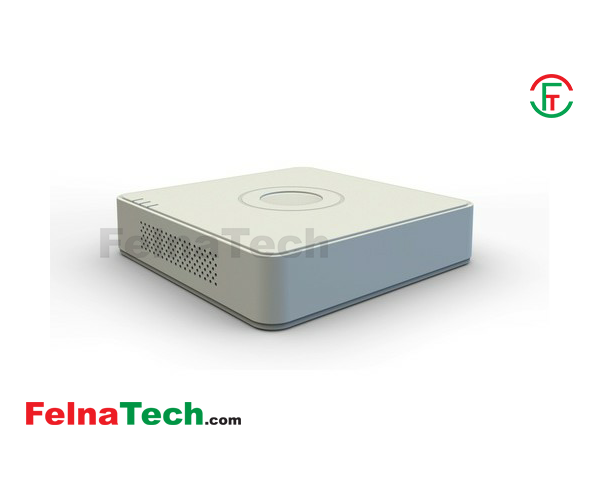

HIKVISION DS-7104HQHI-K1 4-CH Turbo HD 1080P DVR

Brand: Hikvision

Title: HIKVISION DS-7104HQHI-K1 4-CH Turbo HD 1080P DVR

Model: DS-7104HQHI-K1

Code: 16161607

Category: Security

Price: 4300

Sub-Sub Category: Hikvision

Offer Status: 0

Description:

Technical Specification

Model

DS-7104HQHI-K1

Recording

Video compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding resolution

When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Video bit rate

32 Kbps to 6 Mbps

Dual stream

Support

Stream type

Video, Video & Audio

Audio compression

G.711u

Audio bit rate

64 Kbps

Video and Audio

IP video input

Up to 6 MP resolution

Analog video input

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

AHD input

4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI input

4 MP, 1080p25, 1080p30, 720p25, 720p30

HDMI/VGA output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

CVBS input

Support

General

Power supply

12 VDC, 1.5 A

Consumption (without HDD)

≤ 8 W

Working temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working humidity

10% to 90%

Dimensions (W × D × H)

200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

Weight (without HDD)

≤ 1 kg (2.2 lb)
