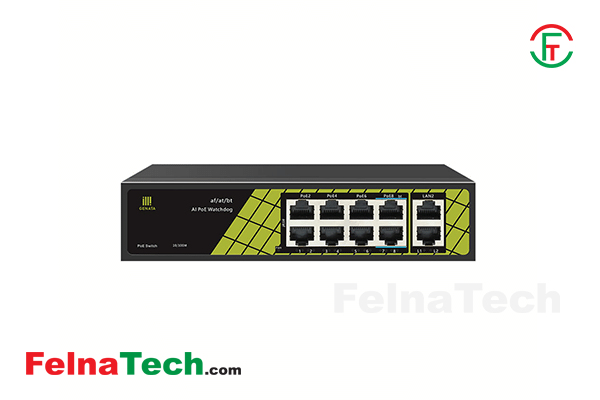

GENATA GNT-P9828V6 8 Port PoE Switch 2 Uplink

Brand: Genata

Title: GENATA GNT-P9828V6 8 Port PoE Switch 2 Uplink

Model: GNT-P9828V6

Code: 216413709

Category: Networking

Sub Category: Switch (PoE)

Sub-Sub Category: Genata

Price: 3600

Offer Status: 0

Description:

DATA SHEET GENATA GNT-P9828V6 8 Port PoE Switch 2 Uplink

Port

2*100Mbps Uplink ports +8*100Mbps PoE ports

Transmission Rate

2000Mbps Full Duplex; 10 or 100 or 1000Mbps Half Duplex

Max transmission distance

130m

Power support

Power input: AC 110~220V Total≤120WPoE Watchdog: Port 1-8Power output: PoE1~6Port:1/2(+52V),3/6(GND)≤30WPoE7~8Port:1245(+53V),3678(GND) compatible1/2(+52V),3/6(GND)≤60W

Ports(1-6)Support

IEEE 802.3af/at protocol

Ports(7-8)Support

IEEE 802.3af/at/bt protocol

Performance Specification

Bandwidth: 2 Gbps

Network Latency (10 to 1000Mbps): ≦16μs (use the 64byte package size)

MAC address table: 2K

The Frame Filter & Transmission Rate: 14800pps the most for 10M port, 148800pps the most for 100M port,1488000pps the most for 1000M port

Networking Standard

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX/ IEEE 802.3ab 1000BASE-T

IEEE 802.3xFlowControl

IEEE 802.3af/at/bt Power over Ethernet

Protection Level

Lightning Protection:6KV, Per: IEC61000-4-5ESD Protection:8KV, Per: IEC61000-4-2

Physical Specifications

Size(L*W*H)：187mm*139mm*43mm

Working Environment

Operating Temperature: -30℃ ~60℃

Storage Temperature: -40℃ ~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Electromagnetic Compatibility

CE mark

FCC Part15，Class B

VCCI Class BEN55022 (CISPR 22)

C-Tick

Other Functions

Short-circuit protection

Over-Temperature protection

Preventing surge

Warranty

Whole machine: 1 Year

Package Content

AC Power Cable, Installation Manual
