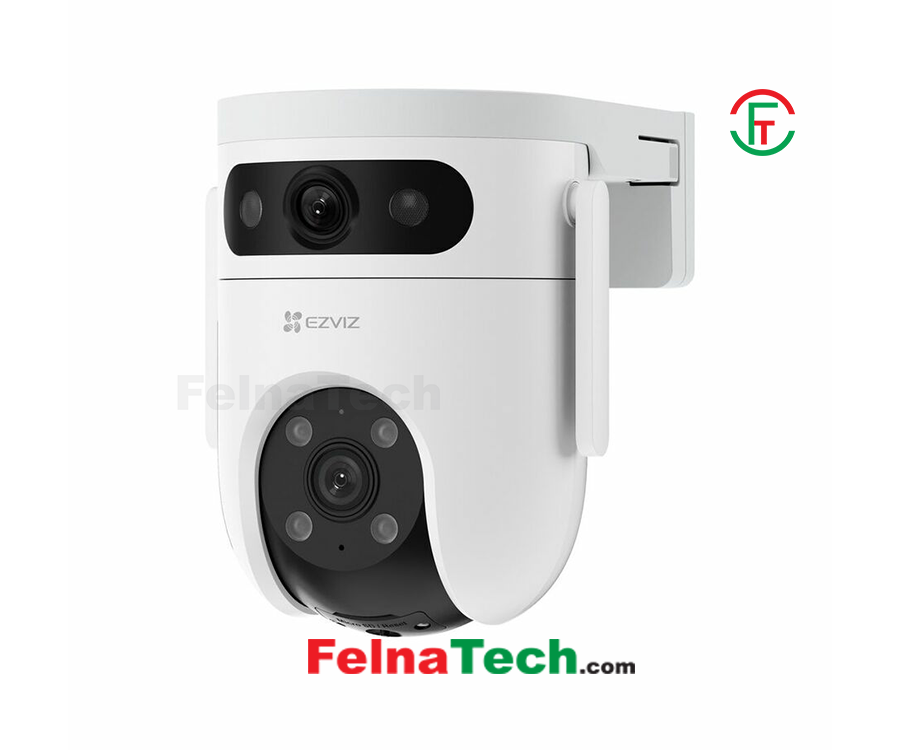

EZVIZ H9c Dual 2K (2.8mm+6mm) Wi-Fi Dome IP Camera
Model: EZVIZ-CS-H9C
Brand: EZVIZ
Code: 161428515
| Camera | ||
| Image Sensor | 1/2.7″ Progressive Scan CMOS | |
| Shutter Speed | Self-adaptive shutter | |
| Lens | Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56°; Bottom Camera: 6mm@F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28° | |
| PT Angle | Pan: 350°, Tilt: 80° | |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) | |
| Lens Mount | M12 | |
| Day & Night | IR-cut filter with auto-switching | |
| DNR | 3D DNR | |
| WDR | Digital WDR | |
| Black & White Night | 30m / 98ft | |
| Video & Audio | ||
| Max Resolution | 2304 × 1296 | |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission | |
| Video Compression | H.265 / H.264 | |
| H.265 Type | Main Profile | |
| Video Bit Rate | Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate. | |
| Audio Bit Rate | Self-Adaptive | |
| Network | ||
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | |
| Channel Bandwidth | Supports 20MHz | |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps | |
| Wi-Fi Pairing | AP pairing | |
| Protocol | EZVIZ cloud proprietary protocol | |
| Interface Protocol | EZVIZ cloud proprietary protocol | |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) | |
| Security | WPA-PSK/WPA2-PSK |
| Functions | ||
| Smart Alarm | AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection | |
| Auto Tracking | Supports | |
| Customized Alert Area | Supports | |
| Two-way Talk | Supports | |
| Preset Locations | Supports | |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark | |
| Storage | ||
| Local Storage | Supports microSD Card (Up to 512 GB) | |
| Cloud Storage | EZVIZ CloudPlay storage | |
| General | ||
| Operating Conditions | -30°C to 50°C (-22°F to 122°F) Humidity 95% or less (non-condensing) | |
| IP Grade | Weatherproof Design | |
| Power Supply | DC 12V/1.5A | |
| Power Consumption | MAX. 12W | |
| Dimensions | 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch) | |
| Packaging Dimensions | 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch) | |
| Weight | Net Weight: 668 g | With Package: 960 g |
Brand: EZVIZ
Title: EZVIZ H9c Dual 2K (2.8mm+6mm) Wi-Fi Dome IP Camera
Model: EZVIZ-CS-H9C
Code: 161428515
Category: Security / CCTV IP Camera / EZVIZ
Product Type: CCTV Camera
Price: 7000
Warranty: 1
Availability: Available/In Stock
Description:
Camera
Image Sensor
1/2.7″ Progressive Scan CMOS
Shutter Speed
Self-adaptive shutter
Lens
Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56°; Bottom Camera: 6mm@F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28°
PT Angle
Pan: 350°, Tilt: 80°
Minimum Illumination
0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount
M12
Day & Night
IR-cut filter with auto-switching
DNR
3D DNR
WDR
Digital WDR
Black & White Night
30m / 98ft
Video & Audio
Max Resolution
2304 × 1296
Frame Rate
Max: 15fps; Self-Adaptive during network transmission
Video Compression
H.265 / H.264
H.265 Type
Main Profile
Video Bit Rate
Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate.
Audio Bit Rate
Self-Adaptive
Network
Wi-Fi Standard
IEEE802.11b, 802.11g, 802.11n
Frequency Range
2.4 GHz ~ 2.4835 GHz
Channel Bandwidth
Supports 20MHz
Transmission Rate
11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing
AP pairing
Protocol
EZVIZ cloud proprietary protocol
Interface Protocol
EZVIZ cloud proprietary protocol
Wired Network
RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Security
WPA-PSK/WPA2-PSK
Functions
Smart Alarm
AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
Auto Tracking
Supports
Customized Alert Area
Supports
Two-way Talk
Supports
Preset Locations
Supports
General Function
Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local Storage
Supports microSD Card (Up to 512 GB)
Cloud Storage
EZVIZ CloudPlay storage
General
Operating Conditions
-30°C to 50°C (-22°F to 122°F) Humidity 95% or less (non-condensing)
IP Grade2K resolution dome camera
Weatherproof Design
Power Supply
DC 12V/1.5A
Power Consumption
MAX. 12W
Dimensions
145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch)
Packaging Dimensions
150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch)
Weight
Net Weight: 668 g | With Package: 960 g
