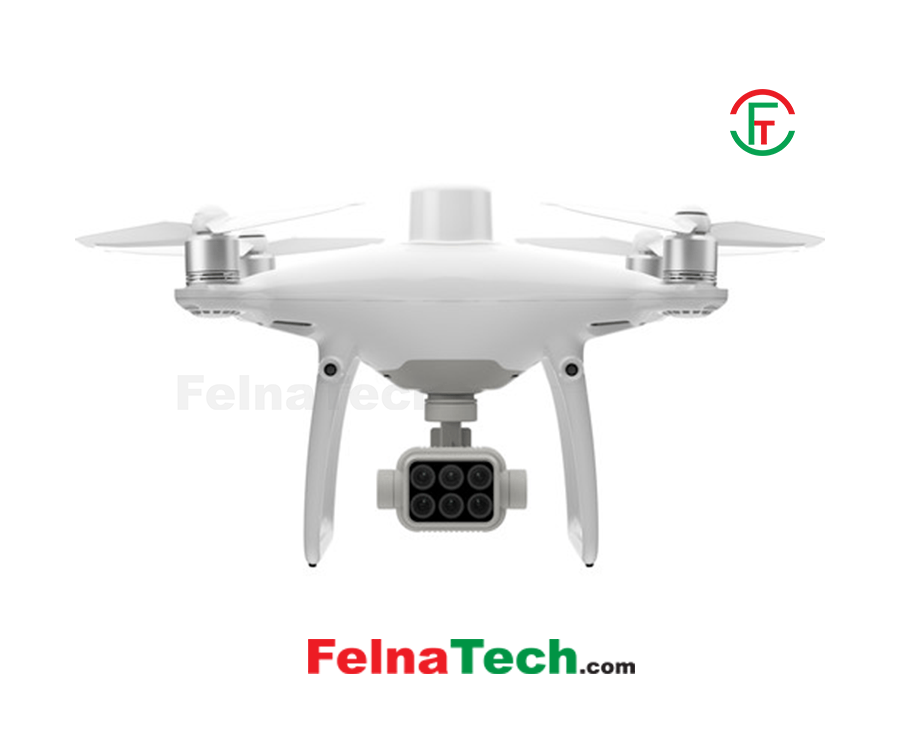

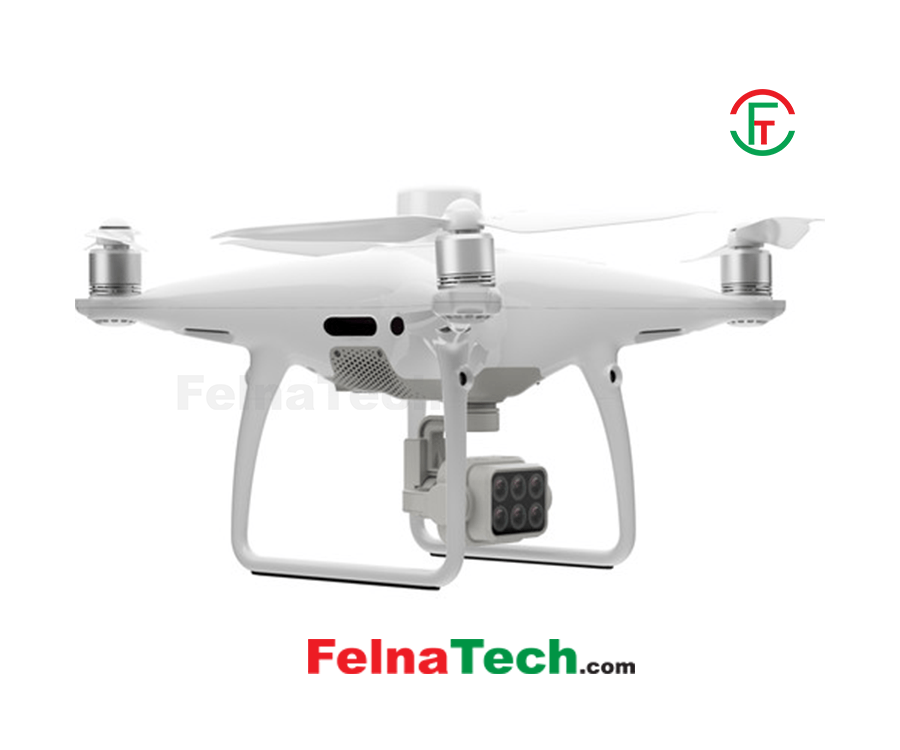

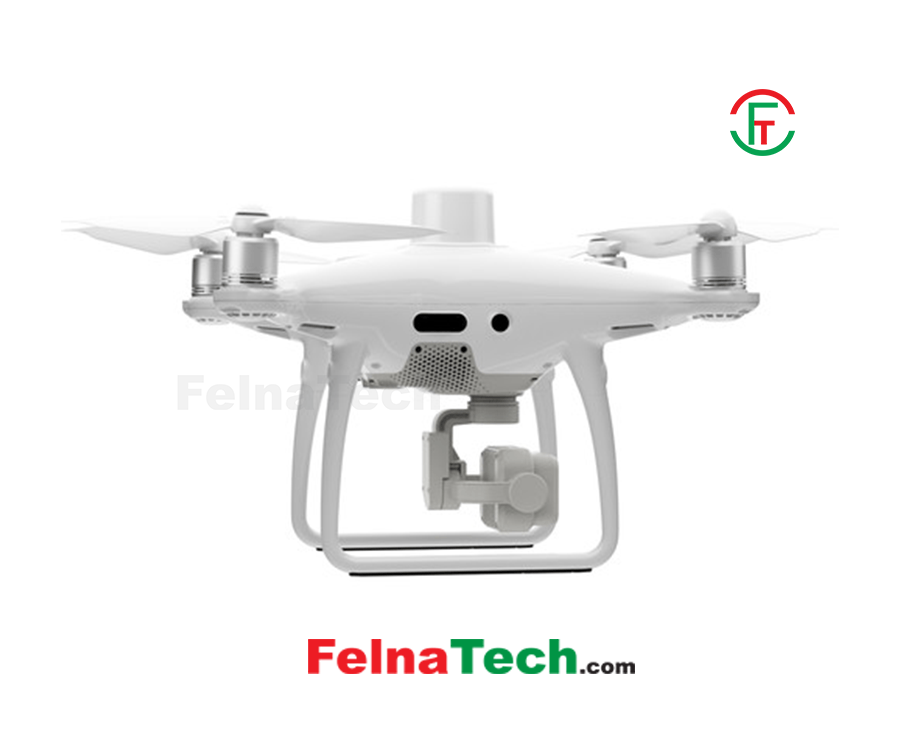

DJI P4 Multispectral Drone

Brand: Drone / DJI

Title: DJI P4 Multispectral Drone

Model: P4-MULTISPECTRAL

Code: 1812133922

Category: Gadget / Drone / DJI

Product Type: Drone

Price: 510000

Warranty: 1

Availability: Out of Stock

Description:

Aircraft

Weight (Battery & Propellers Included)

Takeoff Weight: 1487 g

Diagonal Size (Propellers Excluded)

350 mm

Max Ascent Speed

6 m/s (automatic flight); 5 m/s (manual control)

Max Descent Speed

3 m/s

Max Speed

31 mph (50 kph) (P-mode); 36 mph (58 kph) (A-mode)

Max Service Ceiling Above Sea Level

19685 ft (6000 m)

Max Flight Time

Approx. 27 minutes

Operating Temperature Range

0° to 40° C (32° to 104° F)

Hover Accuracy Range

RTK enabled and functioning properly:
Vertical: ± 0.1 m; Horizontal: ± 0.1 m
RTK disabled:
Vertical: ± 0.1 m (with vision positioning); ± 0.5 m (with GNSS positioning)
Horizontal: ± 0.3 m (with vision positioning); ± 1.5 m (with GNSS positioning)

Gimbal

Controllable Range

Tilt: -90° to +30°

Vision System

Velocity Range

≤ 31 mph (50 kph) at 6.6 ft (2 m) above ground with adequate lighting

Altitude Range

0 - 33 ft (0 - 10 m)

Operating Range

0 - 33 ft (0 - 10 m)

Obstacle Sensory Range

2 - 98 ft (0.7 - 30 m)

Operating Environment

Surfaces with clear patterns and adequate lighting (> 15 lux)

Infrared Sensing System

Obstacle Sensory Range

33' / 10 m

Operating Environment

Surface with Clear Patterns at >15 lux

Camera

Sensor

Six 1/2.9” CMOS, including one RGB sensor for visible light imaging and five monochrome sensors for multispectral imaging.
Each Sensor: Effective pixels 2.08 MP (2.12 MP in total)

Lens

FOV (Field of View): 62.7°
Focal Length: 5.74 mm (35 mm format equivalent: 40 mm), autofocus set at ∞
Aperture: f/2.2

ISO Range

Video:100-3200(Auto)
100-6400(Manual)

Mechanical Shutter Speed

200 - 800

Electronic Shutter Speed

1/100 - 1/20000 s (visible light imaging); 1/100 - 1/10000 s (multispectral imaging)

Image Size

1600×1300 (4:3.25)

Supported File Systems

FAT32 (£ 32 GB); exFAT (> 32 GB)


JPEG (visible light imaging) + TIFF (multispectral imaging)

Supported SD Cards

microSD with a minimum write speed of 15 MB/s. Max Capacity: 128 GB. Class 10 or UHS-1 rating required

Operating Temperature Range

0° to 40° C (32° to 104° F)

Remote Controller

Operating Frequency

2.4000 GHz to 2.4835 GHz (Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (Other countries/regions)

Max Transmission Distance

FCC / NCC: 4.3 mi (7 km)
CE / MIC / KCC / SRRC: 3.1 mi (5 km)(Unobstructed, free of interference)

Operating Temperature Range

0° to 40° C (32° to 104° F)

Battery

6000 mAh LiPo 2S

Transmitter Power (EIRP)

2.4 GHz: < 20 dBm (CE / MIC / KCC)
5.8 GHz: < 26 dBm (FCC / SRRC / NCC)

Operating Current/Voltage

1.2 A @ 7.4 V

Intelligent Flight Battery

Capacity

5870 mAh

Voltage

15.2 V

Battery Type

LiPo 4S

Energy

89.2 Wh

Net Weight

468 g

Charging Temperature Range

-10° to 40° C (14° to 104° F)

Warranty

Warranty

1-Year DJI Warranty (Warranty will be void if the product has been physically damaged. Claims must be made directly through DJI support.)
