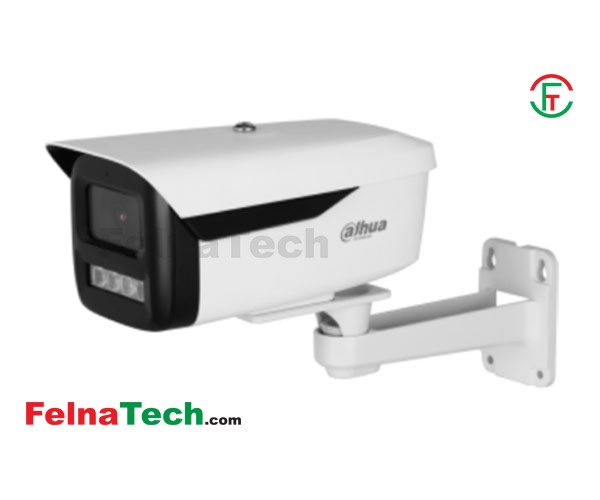

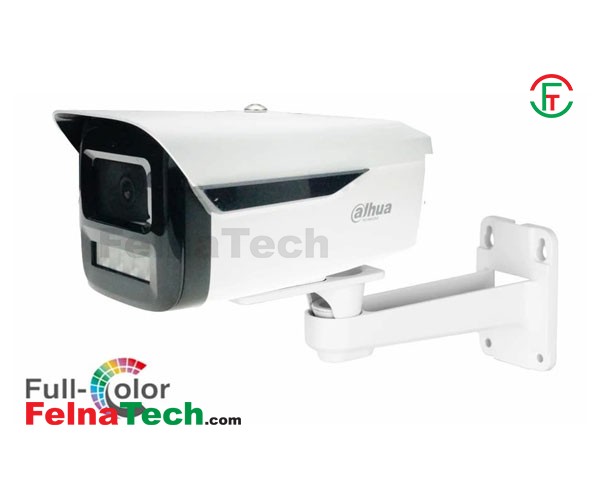

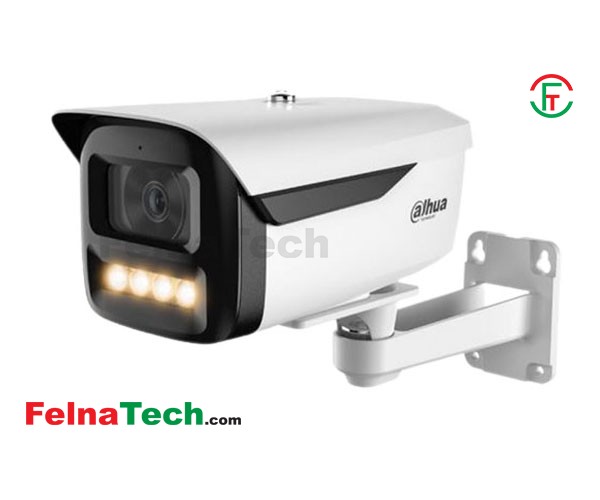

DH-IPC-HFW3449-AS-LED-BT 4MP Full-color Fixed-focal Bullet Wizsense IP Camera

Brand: Dahua

Title: DH-IPC-HFW3449-AS-LED-BT 4MP Full-color Fixed-focal Bullet Wizsense IP Camera

Model: DH-IPC-HFW3449-AS-LED-BT

Code: 16141228

Category: Security / CCTV IP Camera / Dahua

Product Type: CCTV Camera

Price: 8500

Warranty: 1

Availability: Available/In Stock

Description:

Camera

Image Sensor

1/2.9" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.004 Lux@F1.0

S/N Ratio

>56 dB

Illumination Distance

Up to 50 m (164.04 Ō) (Warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (Warm Light)

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

8 mm; 6 mm;

Max. Aperture

F1.0

Field of View

3.6 mm: H: 82°; V: 43°; D: 94°
6 mm: H: 55°; V: 30°; D: 63°

Iris Control

Fixed

Close Focus Distance

3.6 mm: 2.2 m (7.22 Ō)
6 mm: 4.5 m (14.76 Ō)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6 mm

78.0 m(255.91 ft)

31.2 m(102.36 ft)

15.6 m(51.18 ft)

7.8 m(25.59 ft)

6 mm

120.0 m(393.70 ft)

48.0 m(157.48 ft)

224.0 m(78.74ft)

12.0 m(39.37 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and

accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520@(1–20 fps )/2560 × 1440@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30fps)

*The values above are the max. frame rates of each stream; for multiple streams,

the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p(1280 × 720);  D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps

H.265: 12 kbps–6144 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural;street lamp; outdoor; manual;regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resoluƟon and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Audio Compression

Yes

G.711a; G.711Mu; G.726; PCM

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict;

illegal access; motion detection; video tampering; tripwire; intrusion;

audio detection; voltage detection; SMD; security exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP;SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; MulƟcast;ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S; Profile G; Profile T); CGI

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP;SFTP; Micro SD card (support max. 256 GB)

Browser

IE
Chrome
Firefox

Management Software

Smart Pss Lite;DSS; DMSS

Mobile Client

Cyber Security

IOS; Android

Configuration encryption; trusted execution; Digest;security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compability Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

Power Consumption

12 VDC/PoE (802.3af)

Basic: 2.7 W (12 VDC); 3.6 W (PoE)Max. (H.265+ intelligence on + WDR + illuminator

intensity): 8.6 W (12 VDC); 10.6 W (PoE)

Environment

Operating Conditions

Operating Humidity

Storage Humidity

–40 °C to +60 °C (–40 °F to +140 °F)

≤ 95%


≤ 95%

Storage Temperature

-40°C to +60°C (-40°F to +140°F)

Protection

IP67


Structure

Casing

Metal + Plastic

Product Dimensions

201.0 mm × 103.8 mm × 97.8 mm (7.91" × 4.09" × 3.85")(L × W × H)

Net Weight

0.71 kg (1.57 lb)

Gross Weight

1.27 kg (2.80 lb)

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channels in: wet contact, 5mA 3V–5V DC

Alarm Output

2 channels out: wet contact, 300mA 12V DC
